SW215FA

Dual 15” (380mm), Very High Output, Manifolded Band Pass, Powered, CORE Processed, Subwoofer System - FLYING VERSION


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (3)
  • Accessories (4)
  • Systems
  • The SW215A subwoofer is designed to deliver high quality low frequency reproduction where very high output is a key requirement, together with well defined deep bass response and fast transient response. Its compact size and light weight make it suitable for several different uses, ranging from touring applications to fixed installations and high-level dance clubs.
    The SW215A is a very high quality powered subwoofer system featuring some of the most advanced technologies for low frequency reproduction. Its unique and innovative design is based on a configuration that can be defined as Manifolded Band Pass. It uses manifolding of the front side of the cones to maximize the mutual coupling between the two drivers. This innovative configuration does not use any large resonant cavity to load the speaker, but very compact cavities in order to obtain advantages in terms of definition, both at the lowest end and the upper bass.

    TRANSDUCERS
    The SW215A subwoofer system is equipped with two high power 15” (380mm) transducers capable of long excursion (up to 33mm peak-to-peak), controlled by high stiffness Double Silicon Spider as centering suspension and by heavy duty surround.  The motor structure features high strength (BL²/Re) with optimized symmetry and excursion controlled by Aluminum  Demodulating Ring.
    The robust copper 75mm (3”) voice coil is wounded in two different layers both outside and inside the coil support, then doubling the coil surface exposed to air cooling and consequently improving the long term thermal capacity of the loudspeaker.
    Cones are made of very high-stiffness reinforced paper, featuring also invisible water repellent treatment.

    PERFORMANCES
    The SW215A represents an innovative subwoofer design that features unprecedented performances in terms of low frequency definition and “punchy” feeling in the upper bass range.
    The combination of accuracy in acoustic transient response together with the use of latest technology in transducers linearity, signal processing and power amplifiers allows the SW215A to deliver unprecedented low frequency reproduction quality with solid deep end, together with very fast and accurate bass response.

    SIGNAL PROCESSING and POWER AMPLIFIERS
    The system processing is based on the CORE DSP platform designed by the PROEL R&D Laboratories using one of the most advanced SHARC DSP for audio application. It features 40bit, 96kHz floating point resolution and top-quality 24bit AD/DA converters, for a perfect signal integrity, a dynamic range in excess of 110dB and a superior sonic performance. Thanks to its massive processing power, the CORE platform is capable of providing the most sophisticated algorithms for speaker processing, together with remote control and networking capability.
    The PRONET control software, working on a solid and reliable CANBUS based network protocol, provides an intuitive interface for the remote control of the whole system, with the possibility of eqing, delaying, increasing the protections and monitoring the status of the amplifier.
    The SW215A is powered by DA SERIES digital power modules, a new generation of CLASS D power amplifier with digitally-controlled SMPS.  The innovative technology used for these amplifiers (including also the use of a variable switching frequency) offers performances at the top of the range, such as a superior sound definition at any audio frequency, very high dynamics also for low level signals and very low distortion even at the maximum power The superior sound quality can be compared with top-of-the-range AB-class analog systems, while the DA modules feature a higher dynamics, very compact size and light weight and efficiency above 90%.
    The DA module employed for powering the SW215A delivers in an ultra-compact package a maximum power of 2000W.

    HARDWARE
    The SW215A is available in two versions, with (code SW215FA) or without (code SW215A) the flying hardware.
    In the SW215FA model the built-in suspension system allows one or more sub-woofers to be flown together with the AX2065 vertical array module. The flying system is extremely simple to use and a complete array can be flown in a flash by just a couple of people.
    The SW215A offers a cost effective solution for all applications where flying the sub-woofers in not needed.

    • Very High Output
    • Compact size for a very good output-to-weight ratio
    • Manifolded Band Pass configuration for a high output in a compact size
    • High-strength, water repellent cones
    • 96KHz / 40 bit floating point CORE processing with PRONET remote control
    • Digitally controlled Class D amplifier module with SMPS
    SYSTEM
    System’s Acoustic Principle Manifolded Band Pass
    Frequency Response (±3dB) 39 Hz  –  100 Hz    (Processed)
    Maximum Peak SPL @ 1m 139 dB

    TRANSDUCERS
    Type Two 15” (380mm), 3” (75mm) VC
    Cone High stiffness, water repellent
    Voice Coil Type Flux Demodulating Ring
    Suspension Double Centering Spider

    ELECTRICAL
    Input Impedance 20 kΩ balanced, 10 kΩ unbalanced
    Input Sensitivity  +4dBu / 1.25 V
    Signal Processing CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit  AD/DA converters
    Direct access Controls 4 Presets (Standard/InfraSub/Cardioid/ User), Network Termination, GND Link
    Remote Controls PRONET control software
    Network protocol CANBUS
    Amplifier Type Class D with SMPS, Variable Switching Frequency
    Output Power 1000W + 1000W
    Mains Voltage Range (Vac) 230V ±15%  -  115 ±15%  50/60Hz (internally selectable)
    IN / OUT Connectors Neutrik XLR-M / XLR-F
    IN / OUT Network Connectors ETHERCON®(NE8FAV)
    Mains Connector PowerCon® (NAC3MPA)
    Cooling Variable speed DC fan

    ENCLOSURE & CONSTRUCTION
    Physical Dimensions
    Width 571 mm (22.48”)
    Height 800 mm (31.50”)
    Depth 582 mm (22.91”)
    Depth Including Wheels 710 mm (27.95”)
    Enclosure Material 15mm, reinforced phenolic birch
    Paint High resistance, water based paint
    Suspension system (SW215FA)
    Side Suspension High Strength Steel with ¼ Fast Pin
    Back Suspension High Strength Steel with ¼ Fast Pin
    Wheels 4 heavy-load 100 mm ø
    Net Weight SW215A: 64.5 Kg (142.20 lbs.) - SW215FA: 68.5 Kg (151 lbs.)
    SW215FA SW215FA with grille Download
    SW215FA SW215FA front Download
    SW215FA SW215FA side Download
    SW215FA SW215FA horizontal Download
    SW215FA SW215FA rear Download

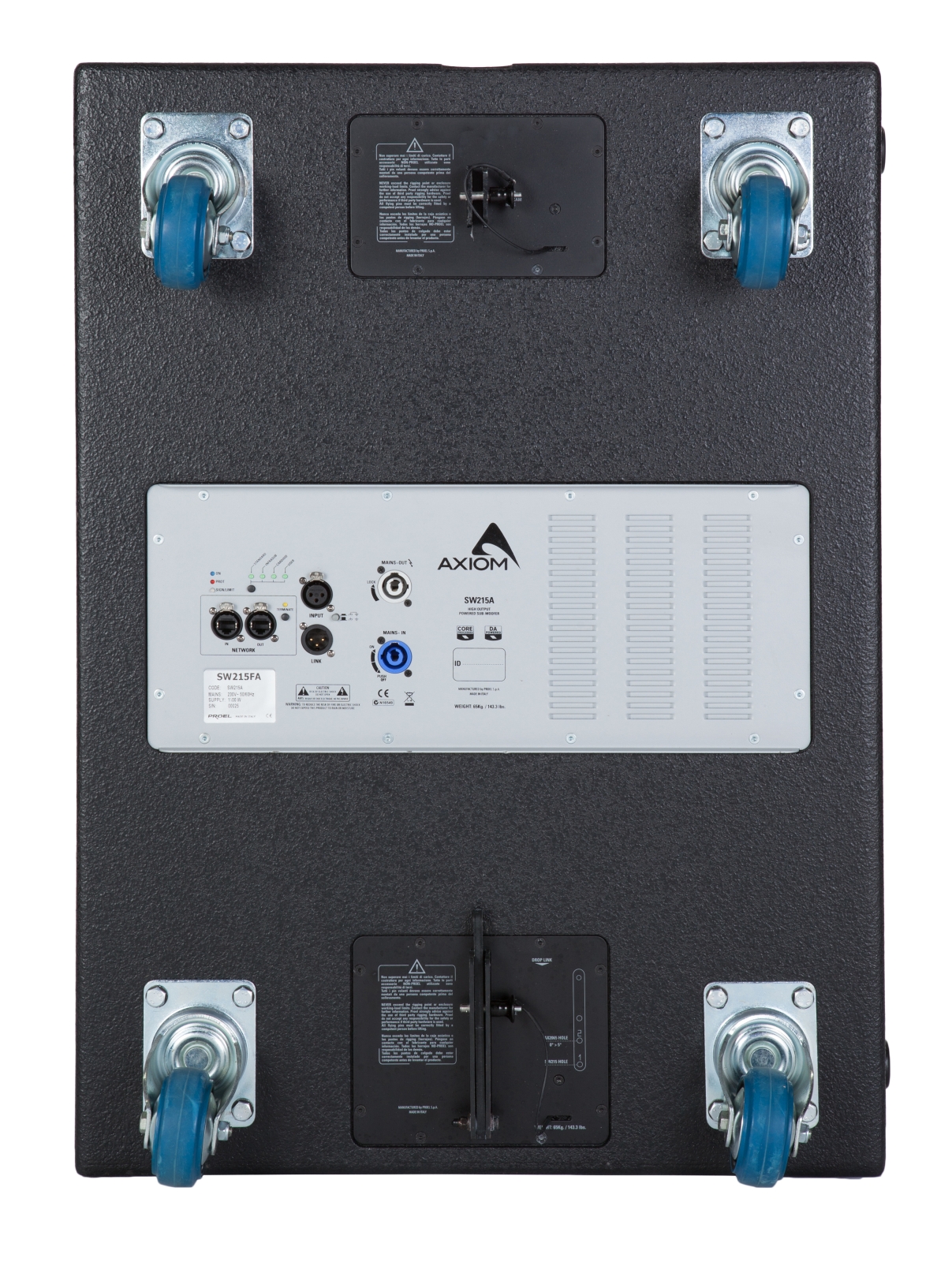

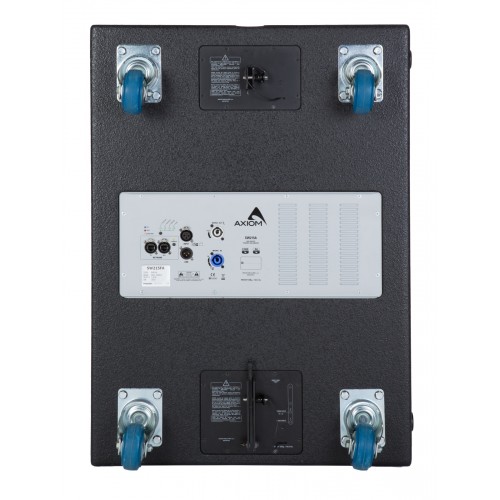

    SW215FA SW215FA cabinet Download

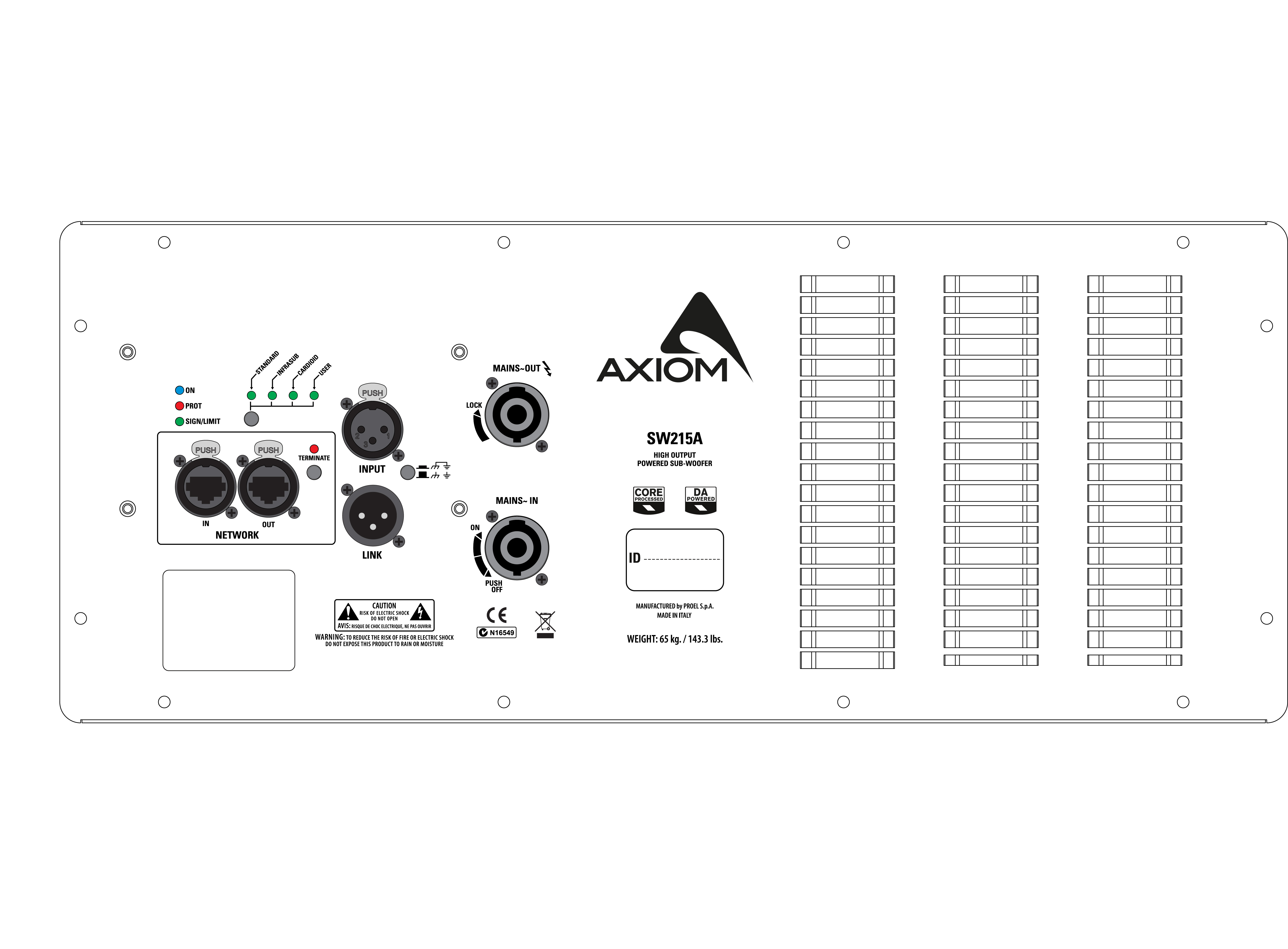

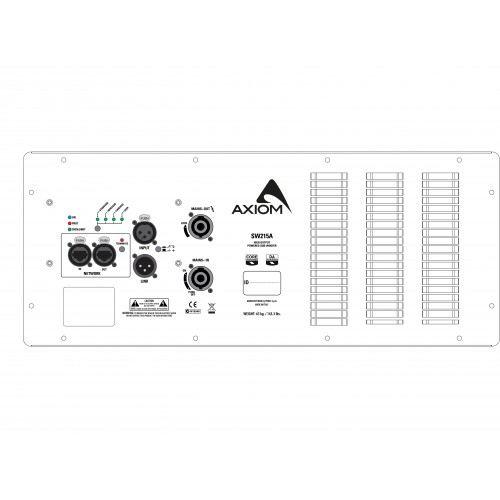

    SW215FA SW215A amplifier panel Download
    3D Model
    KPTSW215.3dsTechnical drawing 3D
    sw215fa_3D.3ds3D Technical Drawing
    KPTSW215-3D.dwgTechnical drawing 3D
    sw215fa-3D.dwg3D Technical Drawing
    Software
    Presets SW215FA-SW215A.zipPresets
    AXIOM_SW215_v1_0.zipEASE Focus 3 models
    Pronet_Setup_r232.zipPRONET Control Software Release 2.3.2
    AXIOM_AX Series_v3_2.zipEASE FOCUS 2/3 models
    EASE_Focus_v3_0_18 AXIOM GLL.zipEASE FOCUS 3 software and models
    Data Sheet
    SW215A.0.pdfTechnical Data Sheet
    Technical Drawing
    sw215fa_2D.dwgTechnical drawing
    KPTSW215-2D.dwgTechnical drawing
    User Manual
    PRONET_manual rel23.pdfPRONET Control Software User's Manual English
    FI-0109-03 KPTSW215.pdfKPTSW215 User's Manual English
    SW215FA_UM_ENG.pdfUser's Manual English
