SW36XFA

Dual 18" (460mm), Very High Output, Manifolded Bandpass, Powered, CORE Processed, Flyable Subwoofer


  • Overview
  • Specifications
  • Downloads
  • Related (1)
  • Accessories (3)

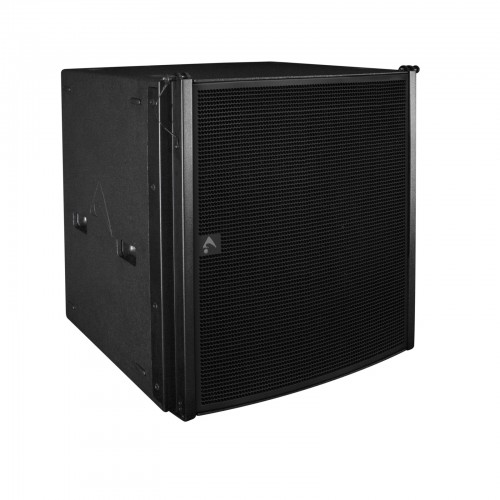

  • Designed to be flown with AX2010A line array modules, the SW36XFA provides an elegant solution to delivering ‘bass in the sky’ from a flown cluster, with usable response down to 36 Hz. When positioned at the top of the array its integrated rigging hardware mates with the AX2010A and the curved grille profile also matches the AX2010, forming a neat and unobtrusive cluster.

    Offering impressive efficiency from a compact cabinet, the SW36XFA uses a combination of manifold and bandpass loading techniques to achieve an impressive 143 dB peak output. Its dual 18” low frequency drivers feature 4” Tetracoil dual voice coils, which have the equivalent performance to a single 6” voice coil.

    The SW36XFA features an integrated 4000 watt class D amplifier module that provides convenience and simplicity of connection for concert touring applications, or will benefit larger fixed installations such as dance clubs, sports halls, stadia, and large conference rooms. It will deliver high sound presure level at bass frequencies, with abundant headroom to deliver the fast transient response that brings live performances and electronic music to life. PROEL’s CORE DSP processing ensures that the SW36XFA is capable of perfect signal integrity, dynamic range in excess of 110 dB, and superior sonic performance.

    SYSTEM
    System’s Acoustic Principle: Manifolded Band Pass
    Frequency Response (±3dB): 36 Hz - 100Hz (Processed)
    Maximum Peak SPL @ 1m: 143 dB
    TRANSDUCERS
    Type: Two 18” (460mm), 4” (100mm) VC
    Cone: Water repellent cone and epoxy coated plates
    Voice Coil Type: 100mm (4in) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 152mm (>6in)
    Suspension: Ultra linear suspension behavior
    ELECTRICAL
    Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
    Input Sensitivity: +4dBu / 1.25 V
    Signal Processing: CORE processing, 96kHz / 40bit floating point SHARK DSP, 24 bit  AD/DA converters
    Direct access Controls: 4 Presets (Standard/InfraSub/Cardioid/ User), Network Termination button, GND Link button
    Remote Controls: PRONET control software
    Network protocol: CANBUS
    Amplifier Type: Class D with SMPS and PFC, Variable Switching Frequency
    Output Power: 4000W
    Mains Voltage Range (Vac): 90 - 260V 50/60Hz
    IN / OUT Connectors: Neutrik XLR-M / XLR-F
    IN / OUT Network Connectors: ETHERCON®(NE8FAV)
    Mains Connector: PowerCon TRUE1 (NAC3PX In/Out)
    Cooling: Variable speed DC fan
    ENCLOSURE & CONSTRUCTION
    Width: 74.5 cm
    Height: 82.5 cm
    Depth: 60 cm
    Depth Including Wheels: 72.5 cm
    Enclosure Material: 15mm, reinforced phenolic birch
    Paint: High resistance, water based paint
    Suspension system
    Side Suspension: High Strength Steel with ¼ Fast Pin
    Back Suspension: High Strength Steel with ¼ Fast Pin
    Wheels: 4 heavy-load 100mm ø
    Net Weight: 91.2 kg (201.1 lbs) without heavy duty wheels

    3D Model
    SW36XFA-3D.dwgTechnical Drawing 3D
    KPTSW36X-3D.dwgTechnical Drawing 3D
    KPTSW36X.3dsTechnical Drawing 3D
    SW36XFA.3dsTechnical Drawing 3D
    Software
    AXIOM_SW36XF_v1_0.zip EASE Focus 3 models
    Pronet_Setup_r232.zipPRONET Control Software Release 2.3.2
    EASE_Focus_v3_0_18 AXIOM GLL.zipEASE FOCUS 3 software and models
    AXIOM_AX Series_v3_2.zipEASE FOCUS 2/3 models
    Presets SW36XFA.zipPresets
    Data Sheet
    SW36XFA_data sheet_2017.pdfTechnical Data Sheet
    Technical Drawing
    SW36XFA-2D.dwgTechnical Drawing
    KPTSW36X-2D.dwgTechnical Drawing
    User Manual
    FI-0118-01 KPTSW36.pdfKPTSW36 User's Manual English
    SW36XFA_UM_ENG.pdfUser's Manual English
    PRONET_manual rel23.pdfPRONET Control Software User's Manual English
    AXFEETKIT AXFEETKIT Kit made of 6pcs BOARDACF01 foot
    USB2CAND USB2CAND USB to CAN converter with two network connectors

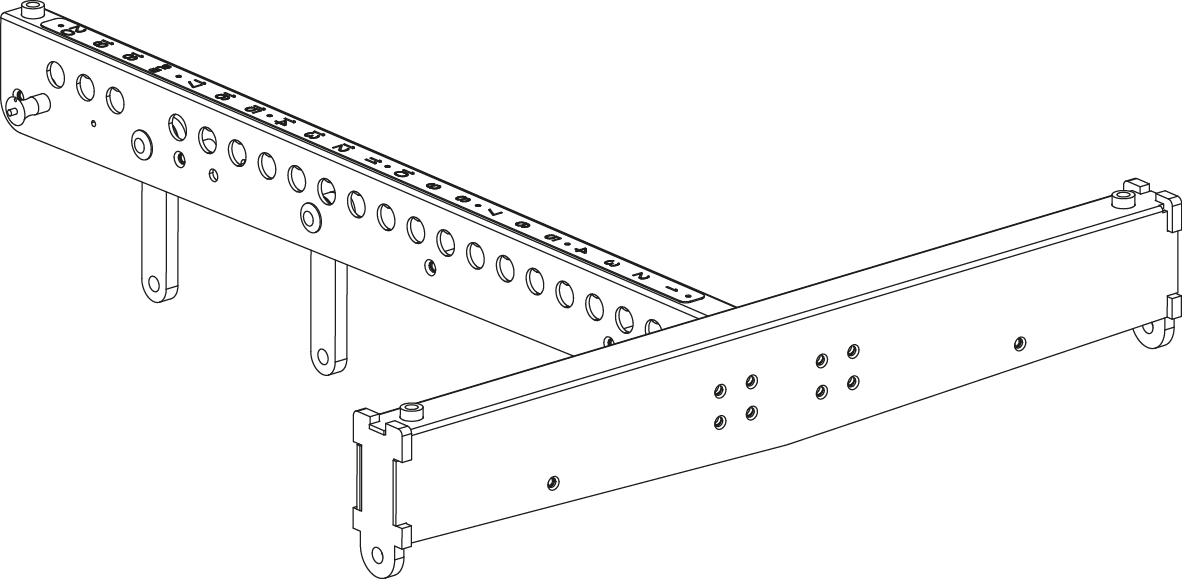

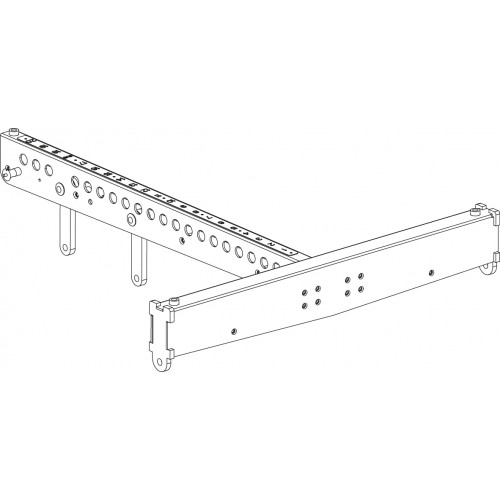

    KPTSW36XF KPTSW36XF Flying bar for SW36X + AX2010
