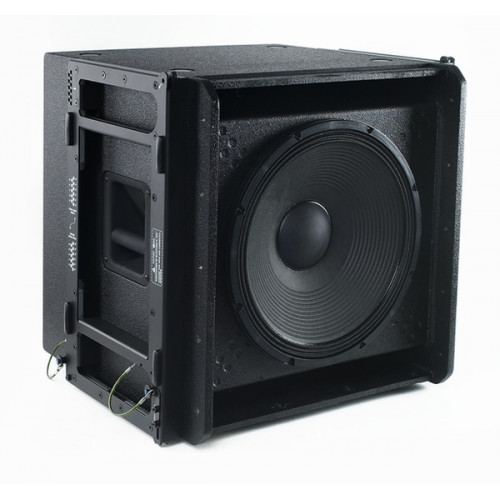

AX1115SP

suspendable direct radiation bass-reflex 15'' subwoofer


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Model AX1115SP is a compact direct radiation bass-reflex subwoofer. AX1115SP can be suspended and complements AX2265P units both for suspended and stacked arrays, yielding coherent bass frequency reproduction, thus creating a 3-way system with a remarkable performance-dimension ratio. Its 15' woofer features a neodymium magnet and an ISV coil, along with a super-reinforced cone, which guarantee great excursions without any damage.

    [System type: suspendable direct radiation bass-reflex subwoofer]
    [Nominal Impedance: 8 ohm]
    [Input power rating (AES):1000 ]
    [Input power rating (program):2000 ]
    [Frequency response: 40 Hz - 160 Hz (-3dB)]
    [Sensitivity: 97 dB SPL (2.83V @ 1m)]
    [Maximum (peak) Output:130 ]
    [Low Frequency Device: 15'' neodymium woofer - 4'' voice coil]
    [Crossover Frequency: from 80 Hz to 160 Hz]
    [Signal Processing: Proel DSO26 - DSO480]
    [Flying System: built in suspension system]
    [Connectors: 2 x Neutrik Speakon NL4MP linked]
    [Construction: 15mm birch plywood, internally reinforced ]
    [Finishing: paint finish]
    [Cabinet Colour: black]
    [Weight:43 lb ]

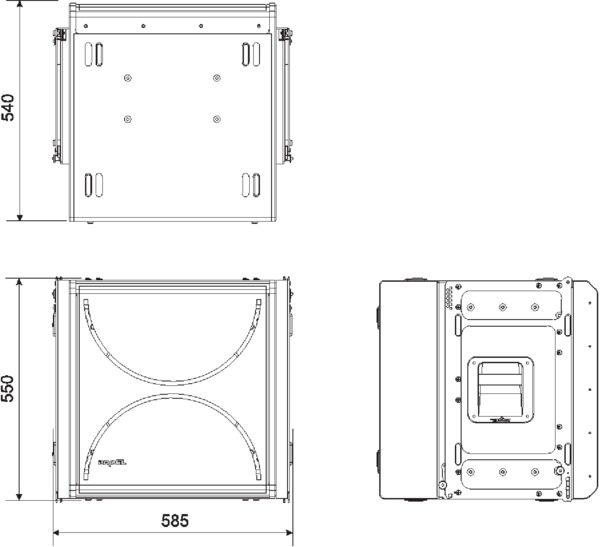

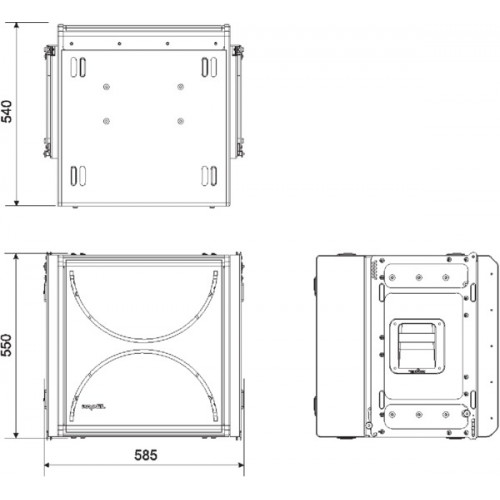

    [Dimensions (W x H x D): 58.5 x 55 x 54 cm]
