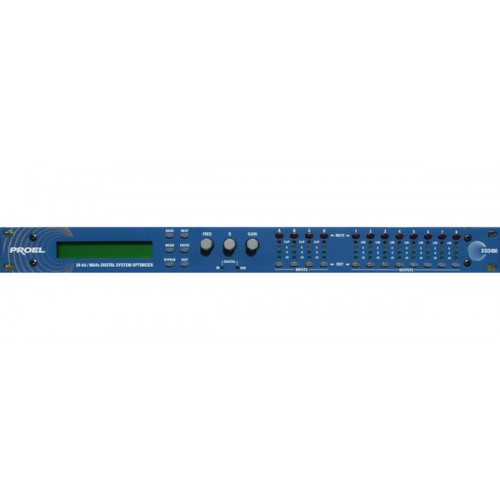

PROEL continues in support of its professional customers by presenting the successor of DSO26, the new DSO480. With 4 inputs and 8 outputs, the new audio management system, offers advanced signal processing, raising the performance and equipping of extra features never before available. 4 inputs and 8 outputs native processing now runs at 96 kHz resulting in wider bandwidth (over 30 kHz). Flexible routing matrix in addition to standard fixed configurations such as 4 x 2 way, any output may be fed from any input or the sum of inputs. Edit buttons show routing instantly when pressed. 9 full bandwidth parametric bands available on every output, all switchable in high and low shelving responses. 8 bands of fully parametric EQ on each input channel. crossover filters on each output now offer 48 dB/Octave responses. New higher order crossover responses in the style of NTM or Hardman filters, with crossover responses above 72 dB/Octave. Extended EQ Pack® - in addition to the standard EQ responses (PEQ/Shelving) EQ band may be changed to offer a variety of responses, from notch filters and bandpass filter, to phase (all pass) filters and elliptical and resonant filters. New additional D-Max limiter with look-ahead processing allows absolute loudspeaker systems protection. Delay memory allows for up to 650 mS from any input to any output, extra fine delay resolution on outputs in 30 nS (0.1 mm). Extended memory capacity user memories now extended to a maximum of 255. Improved converters dynamic range up to 116 dB, lower noise and improved distortion performance. AESEBU digital input interface accepts AES sample rates from 32 kHz up to 192 kHz via a sample rate converter. ALL functions are available though the front panel interface. Bigger 2 x 24 character display and new back-lit low profile ergonomic buttons.
[Power Supply: 90V - 220V AC, 50 - 60 Hz ]

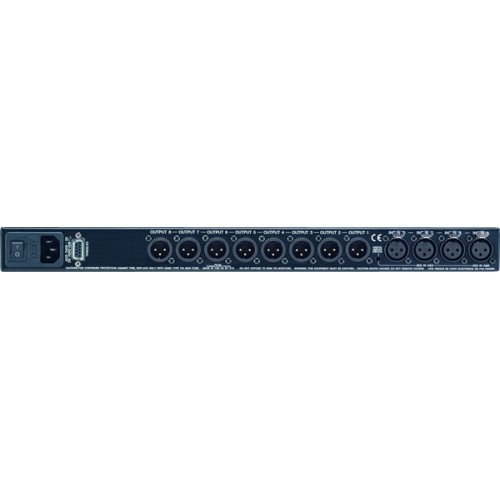

[Connectors: RS232: 9 pin DEE]
[Input Connectors: 3 pin XLR female]
[Output Connectors: 3 pin XLR male]
[CMRR (Common Mode Rejection Ratio): >65 dB, 50 Hz - 10 kHz
]
[AD/DA converters: 24 bit - 96 kHz]
[Dimensions (W x H x D): 48.2 x 4.4 x 30 cm]
[Distortion (THD): <0.02% @ 1 kHz, +18 dBm ]
[Parametric Equalization: 104 filter sections (8 per input - 9 per output)
Gain: +15 dB to -30 dB, 0.1 dB steps
Frequency: 19.7 Hz to 32 kHz, 1/36 octave steps
Filters Q/BW: 0.4 to 128 / 2.5 to 0.008
Shelving filters: Low freq, 19.2 Hz to 1 kHz High freq, 1 kHz to 32 kHz - gains: ±15 dB in 0.1 dB steps]
[Crossover Filters: Filters: 1 of each per output.
Freq. Range HPF: 10 Hz to 16 kHz 1/36 octave steps.
Freq. Range LPF: 35 Hz to 22 kHz 1/36 octave steps.
Responses: 1st Order 6 dB/Oct. Bessel/Butterworth/Linkwitz-Riley 12-24-48 dB/Octave. Bessel/Butterworth 18 dB/Octave.]
[Sampling Frequency FS: 96 kHz]
[Output Gain: +15 dB to -40 dB, 0.1 dB steps + mute]
[Input Impedance: >10 kohm]
[Indicators (LED): Input meter 4 x 4 points, Output meter 8 x 4 points, 12 red MUTE buttons, 12 yellow EDIT buttons, 6 blu Control Keys buttons]
[Inputs: 4 electronically balanced]
[Maximum Input Level: +20 dBm on 600 ohm]
[Weight:3.3 lb ]
[Power consumption: <30W]
[Internal Processing: optimised double precision signal processing]
[S/N Ratio: >116 dB, 20 Hz - 20 kHz, unweighted]
[Frequency response: + 0.5 dB 20 Hz - 20 kHz, -3 dB @ 32 kHz]
[Display: 2 x 24 Character LCD]
[Limiter threshold: +22dBu to -10dBu]
[Limiter Attack Time: 0.3 to 90ms or ATC (automatic time constant)
D-Max Limiter: Attack Time: -60 uS]
[Limiter Release Time: 2, 4, 8, 16, 32 times attack time or ATC (automatic time constant)
D-Max Limiter: Release Time: Slow/Medium/Fast]
[Delay: Up to 650 ms in 0.3 µS steps
Latency: 1.5 mS (analogue in to analogue out @ 96 kHz)]
[Rack Units: 1U]
[Outputs: 8 electronically balanced]
|
|
|
