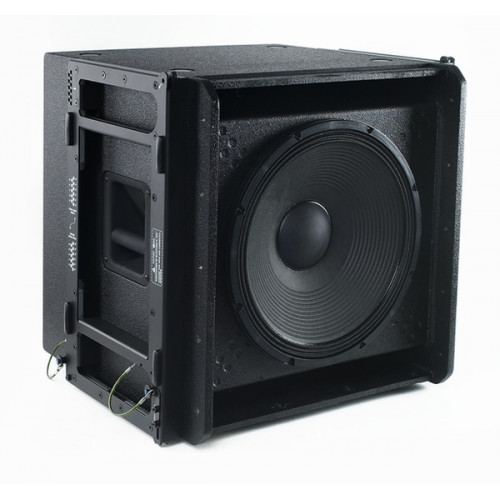

Model AX1115SP is a compact direct radiation bass-reflex subwoofer. AX1115SP can be suspended and complements AX2265P units both for suspended and stacked arrays, yielding coherent bass frequency reproduction, thus creating a 3-way system with a remarkable performance-dimension ratio. Its 15' woofer features a neodymium magnet and an ISV coil, along with a super-reinforced cone, which guarantee great excursions without any damage.
[System type: suspendable direct radiation bass-reflex subwoofer]
[Nominal Impedance: 8 ohm]
[Input power rating (AES):1000 ]
[Input power rating (program):2000 ]
[Frequency response: 40 Hz - 160 Hz (-3dB)]
[Sensitivity: 97 dB SPL (2.83V @ 1m)]
[Maximum (peak) Output:130 ]
[Low Frequency Device: 15'' neodymium woofer - 4'' voice coil]
[Crossover Frequency: from 80 Hz to 160 Hz]
[Signal Processing: Proel DSO26 - DSO480]
[Flying System: built in suspension system]
[Connectors: 2 x Neutrik Speakon NL4MP linked]
[Construction: 15mm birch plywood, internally reinforced ]
[Finishing: paint finish]
[Cabinet Colour: black]
[Weight:43 lb ]

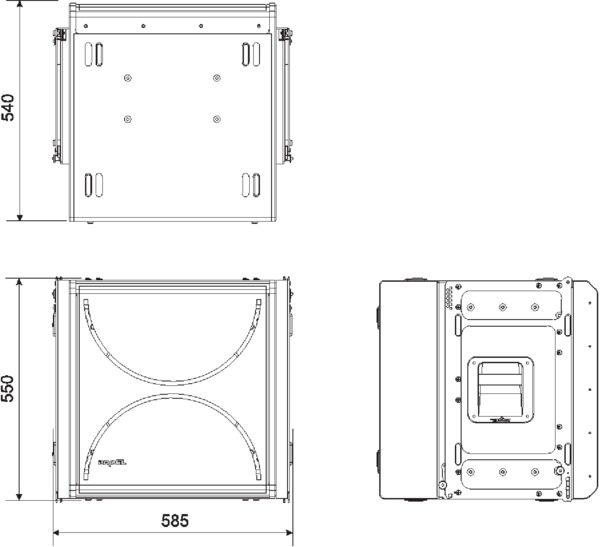

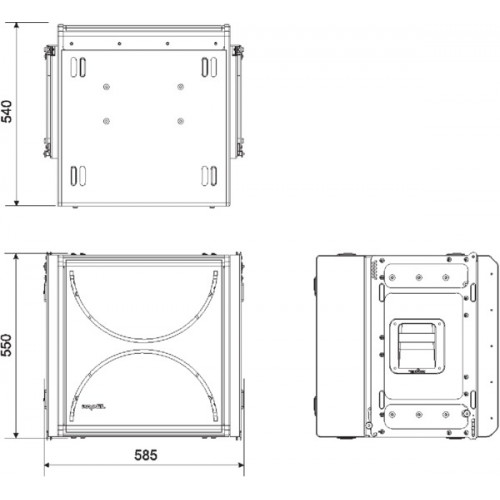

[Dimensions (W x H x D): 58.5 x 55 x 54 cm]
|
|
|
