3-way full-range vertical array element - bi-amp

  • Overview
  • Specifications
  • Gallery
  • Downloads

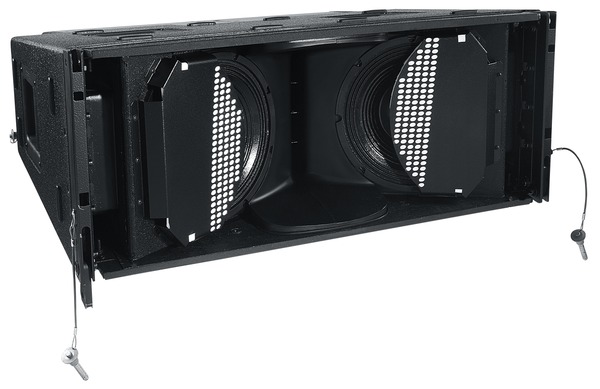

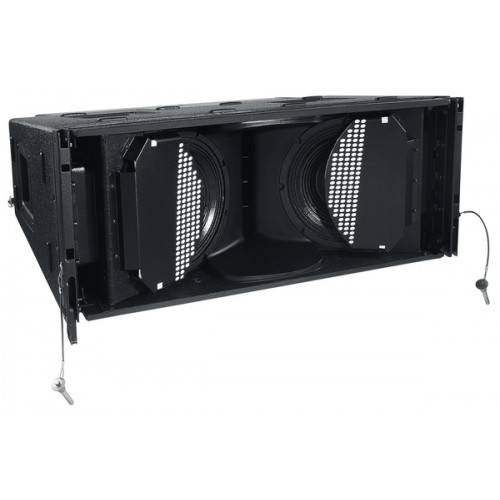

  • 3 way, full range, bi-amplifiable curvilinear array module. Featuring two 10' woofers with neodymium magnets and ISV coils (Interleaved Sandwich Voice coil) wound internally / externally to the support. The die-cast basket of the woofers features double ventilation to improve heat dissipation and therefore reduce the level of power compression. The flux demodulation ring, placed inside the magnetic circuit of the woofer, improves excursion control and reduces distortion. The two way coaxial compression driver features a neodymium magnet and a 2' throat. A 4' ring membrane is used for the reproduction of the mid range frequencies and a 2' membrane for the high frequencies. The crossover between the mid and high frequencies is achieved using an internal passive crossover, constructed using very high quality components with elevated power handling.

    [System type: 3-way full-range vertical array element bi-amp]
    [Frequency response: 75 Hz - 20 kHz]
    [Maximum (peak) Output:131 ]
    [Low Frequency Device: 2 x10'' neodymium woofer - 3'' voice coil]
    [LF Nominal impedance: 8 ohm]
    [LF Sensitivity: 99 dB SPL (2.83V @ 1m)]
    [LF Power rating (AES):800 ]
    [LF Power rating (program):1600 ]
    [High Frequency Device: 2'' coaxial compression driver - horn loaded]
    [HF Nominal impedance: 16 ohm]
    [HF Sensitivity: 110 dB SPL (4V @ 1m)]
    [HF Power rating (AES):150 ]
    [HF Power rating (program):300 ]

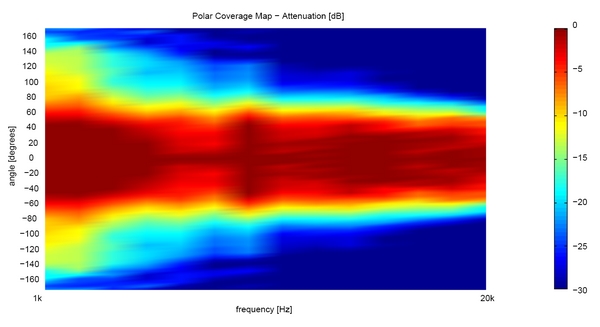

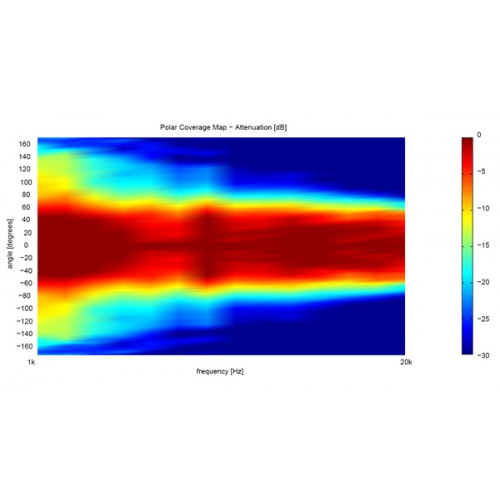

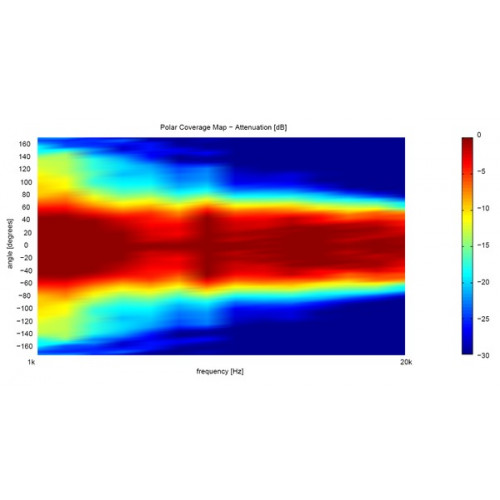

    [Coverage Angle H. (-6 dB): 110° average]
    [Coverage Angle V. (-6 dB): depending on array size]
    [Trapezoidal taper: 12°]
    [Directivity Index (DI): depending on array size]
    [Signal Processing: Proel DSO26 - DSO480]

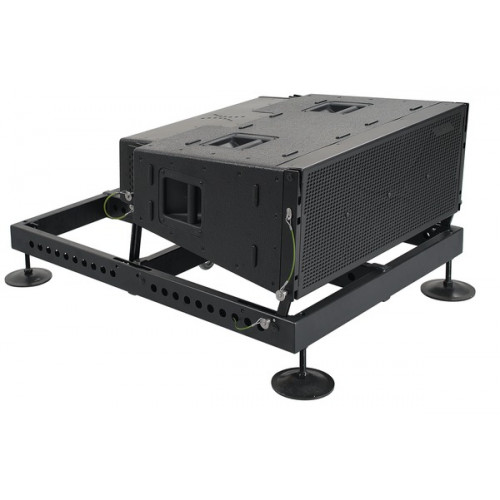

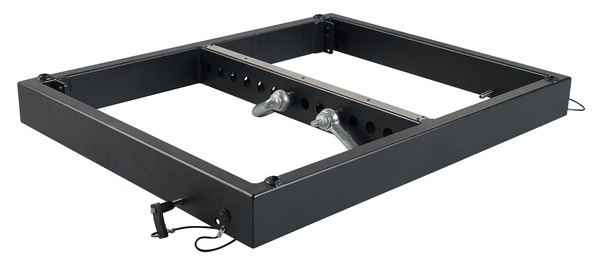

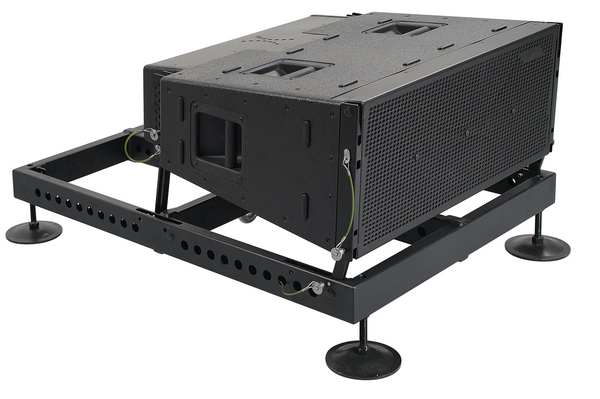

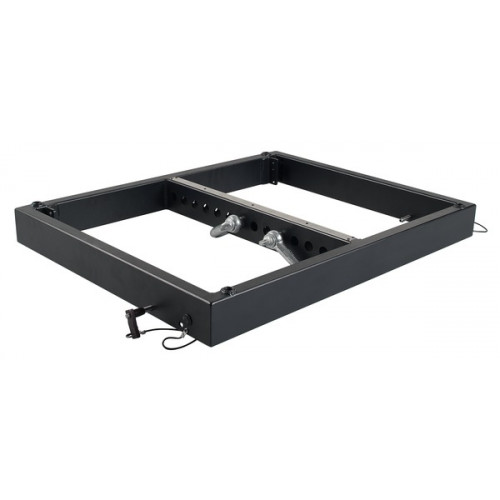

    [Flying System: built in suspension system]
    [Connectors: 2 x Neutrik Speakon NL4MP linked]
    [Construction: 15mm birch plywood, internally reinforced]
    [Finishing: paint finish]
    [Cabinet Colour: black]
    [Weight:51.5 lb ]
    [Dimensions (W x H x D): 79.6 x 32.1 x 66.5 cm]
