EDGE25PB

2 way full range loudspeaker


  • Overview
  • Specifications
  • Gallery
  • Downloads

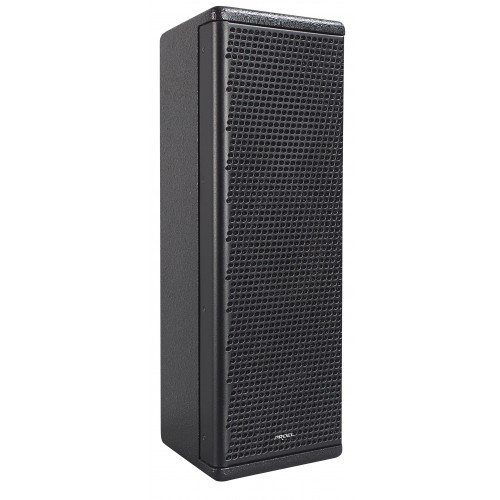

  • The EDGE25P is a 2 way, full range passive system with an internal crossover and a PTC protection for the tweeter. Designed for near-field applications such as television, stage front, conferences theatres etc. The system is characterised by 2x5.25'' woofers and a dome tweeter with a SWGH (Spherical Wave Guide Horn) in a WTW configuration. The trapezoid cabinet is asymmetric to allow positioning in small arrays. Among the characteristics of the system are elevated angular dispersion, homogenous coverage and a high sensibility. The speaker has the impedance of 16 ohm allowing many to be coupled together in parallel.

    System type: 2-way vented enclosure
    Nominal Impedance: 16 ohm
    Input power rating (AES): 100 W
    Input power rating (program): 200 W

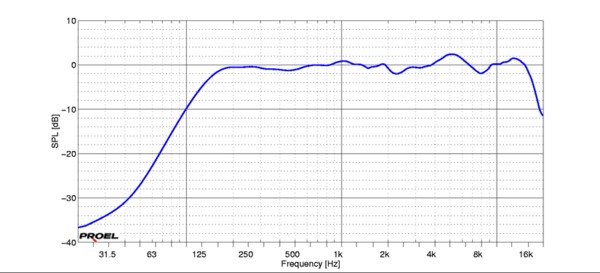

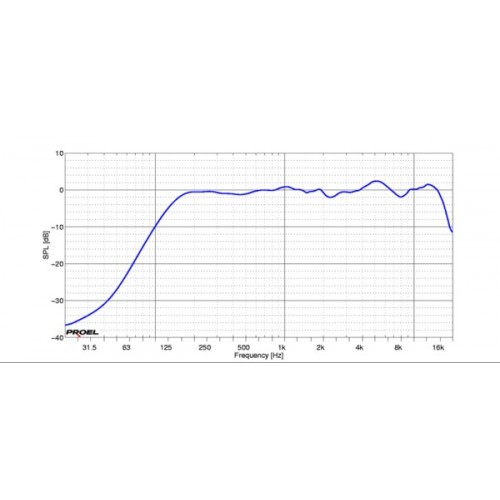

    Frequency response: 125 Hz - 20 kHz (-6dB, +6dB)]
    Sensitivity: 93 dB SPL ( 4V @ 1m )]
    Maximum (peak) Output: 116 dB
    Low Frequency Device: 2 x 5.25'' woofer
    High Frequency Device: Dome tweeter with spherical waveguide horn SWGH

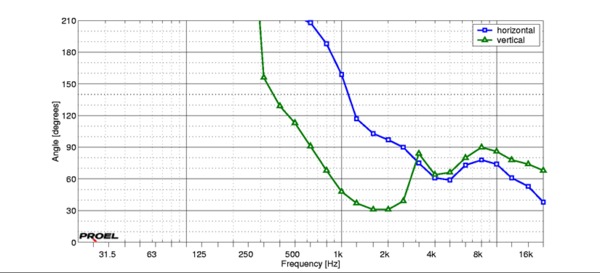

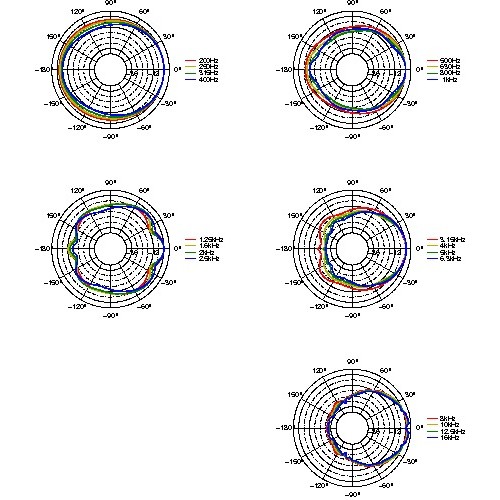

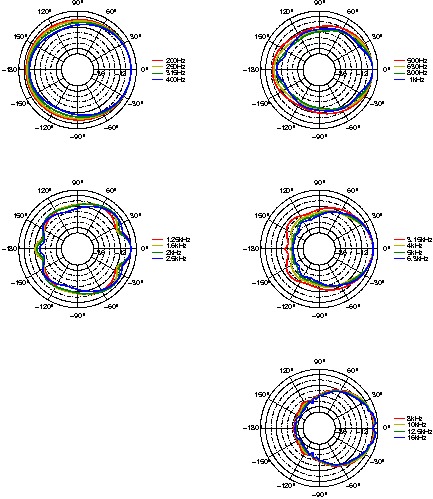

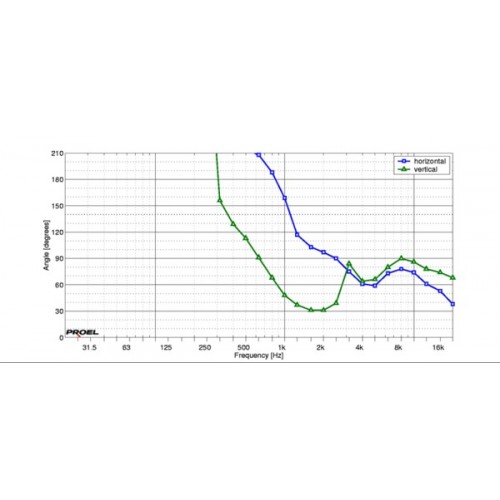

    Coverage Angle H. (-6 dB): 80° averaged, 1 kHz to 20 kHz

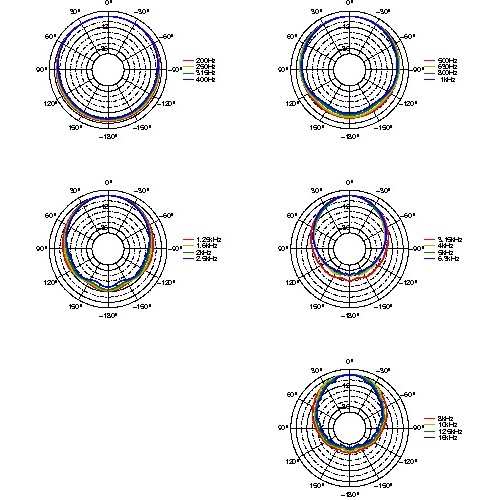

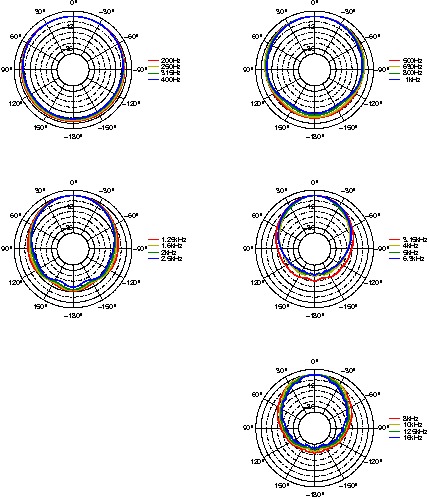

    Coverage Angle V. (-6 dB): 65° averaged, 1 kHz to 20 kHz
    Monitor Taper: 20°

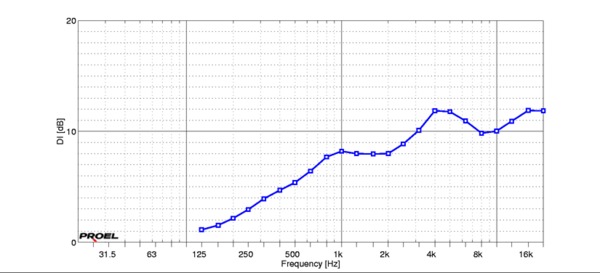

    Directivity Index (DI): 10 averaged, 1 kHz to 20 kHz
    Flying System: 2 x M8 - top, bottom - 1 x M10 - rear
    Connectors: 2 x Neutrik Speakon NL4MP in parallel, 1+ IN+, 1- IN-
    Construction: 15mm birch plywood
    Finishing: Paint finish
    Cabinet Colour: Black
    Weight: 7 lb
    Dimensions (W x H x D): 17.6 x 46 x 19 cm

    3D Model
    EDGE25PB.10.3dsTechnical Drawing 3D
    Software
    Proel EASE 4_3.zipEASE 4.3 models
    User Manual
    Manuale EDGE25P_ITA.pdfUser's Manual English
    Manual EDGE25P_ENG.pdfUser's Manual English
