AX2065A

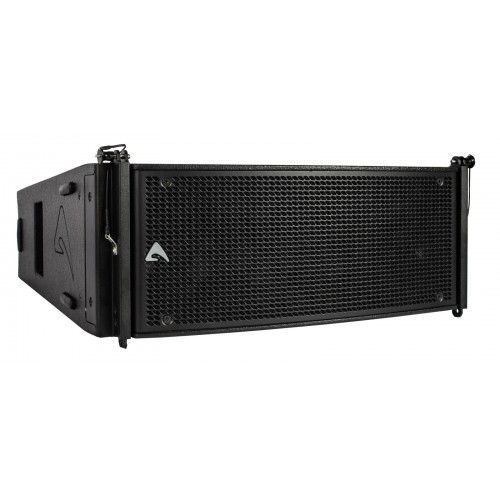

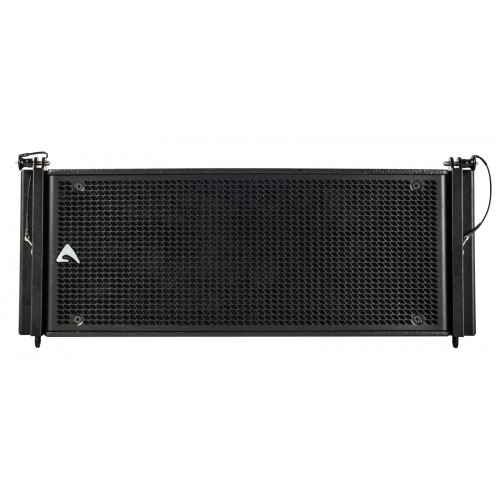

Dual 6.5” (165mm), High Output, Powered, CORE Processed, Vertical Array Element


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (4)
  • Accessories (9)
  • Systems

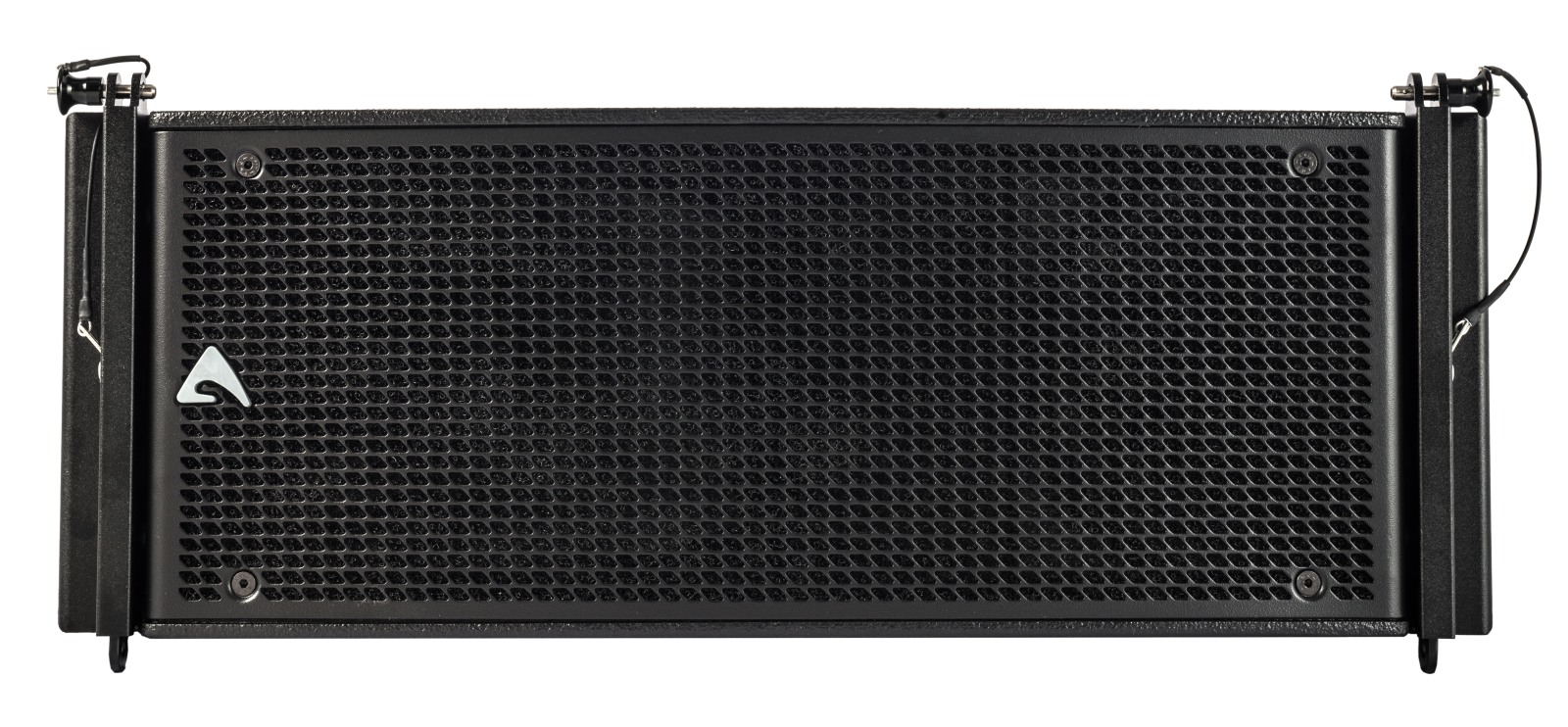

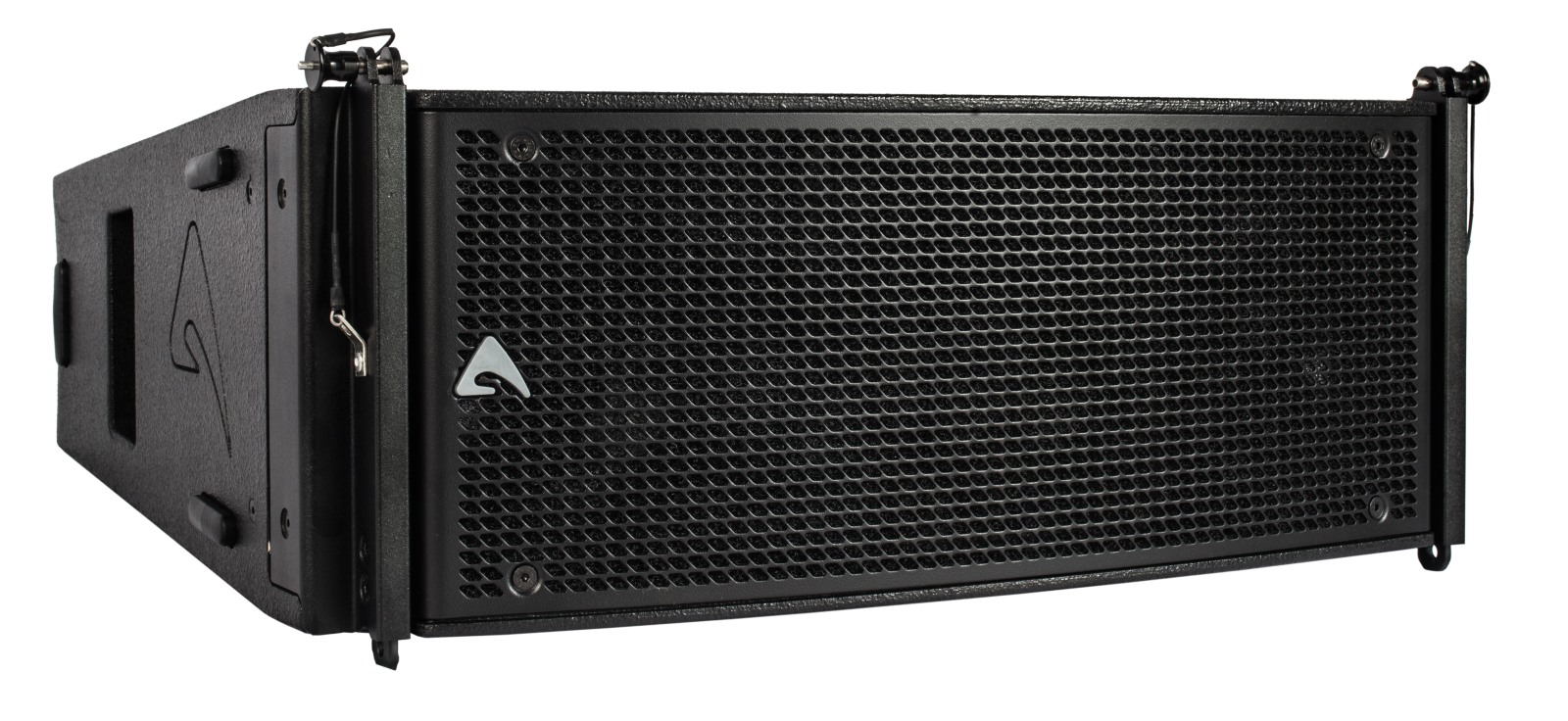

  • The AX2065A is a new powered line array element that combines superior sound quality with easiness and flexibility in a simple system with a very convenient price-to-performance ratio. The AX2065A has been designed both for rental live sound applications and for fixed installations and has been engineered for the simplest use possible but without sacrificing anything in sound quality and performance.

    TRANSDUCERS
    The high frequency range is reproduced by a low-distortion compression drive, equipped with very lightweight Titanium diaphragm and a special new suspension design for very natural sound. A transmission line wave-forming waveguide have been used to load the HF driver, in order to provide a detailed and natural sound and to achieve a long-distance HF projecting capacity.

    The two 6.5” woofers employed in the reproduction of the mid-bass range are equipped with very lightweight cones and rubber suspension to extend the low frequency response. The lightness of the diaphragm is furthermore improved by the use of aluminum voice coil instead of conventional copper. This ensure a fast reproduction of the mid range and mid-bass musical passages, improving also the thermal capacity of the voice coil and, consequently, controlling the overall power compression. The two 6.5” woofers are back loaded by a short hybrid transmission line that minimizes the effect of the box resonances and eliminates the “boxy” mid-bass sound commonly obtained from regular bass-reflex enclosures, giving to this module a natural cardioid directivity dispersion at the upper bass and mid low region.

    SYSTEM CONCEPT AND SONIC PERFORMANCES
    The AX2065A offers a simple but innovative design in line array elements. The simple concept of the WTW symmetrical design is implemented in an effective way in order to minimize the effects of potential beaming phenomena around the crossover frequency.

    In order to minimize these effects, many different details have been carefully engineered, the first of them being the choice of the HF driver unit. The special light-weight diaphragm used in this driver features a very low mechanical resonance, thus allowing a relatively low crossover frequency point that is placed in the 900Hz range.

    Moreover, the orientation of the two woofers allows to minimize the interference effect between them, while the use of a mechanical-acoustic polyurethane filter represents a further help in minimizing the midrange beaming.

    The crossover filter approach is based on a “Constant Power” technique. Thanks to a particular phase combination between the two ways around the crossover frequency, this approach is able to provide a very stable horizontal coverage and a very stable off-axys sound image, also minimizing unwanted effects around the crossover frequency. The further application of phase linearization techniques, combined to constant power crossover, yield a linear phase response and a coherent time response. This allows for a natural perception of acoustic instruments and voices and for an improved depth of the sound image.

    SIGNAL PROCESSING and POWER AMPLIFIERS
    The system processing is based on the CORE DSP platform designed by the PROEL R&D Laboratories using one of the most advanced SHARC DSP for audio application. It features 40bit, 96kHz floating point resolution and top-quality 24bit AD/DA converters, for a perfect signal integrity, a dynamic range in excess of 110dB and a superior sonic performance. Thanks to its massive processing power, the CORE platform is capable of providing the most sophisticated algorithms for speaker processing, together with remote control and networking capability.

    The PRONET control software, working on a solid and reliable CANBUS based network protocol, provides an intuitive interface for the remote control of the whole system, with the possibility of eqing, delaying, increasing the protections and monitoring the status of the amplifier.

    The AX2065A is powered by DA SERIES digital power modules, a new generation of CLASS D power amplifier with digitally-controlled SMPS.  The innovative technology used for these amplifiers (including also the use of a variable switching frequency) offers performances at the top of the range, such as a superior sound definition at any audio frequency, very high dynamics also for low level signals and very low distortion even at the maximum power The superior sound quality can be compared with top-of-the-range AB-class analog systems, while the DA modules feature a higher dynamics, very compact size and light weight and efficiency above 90%.

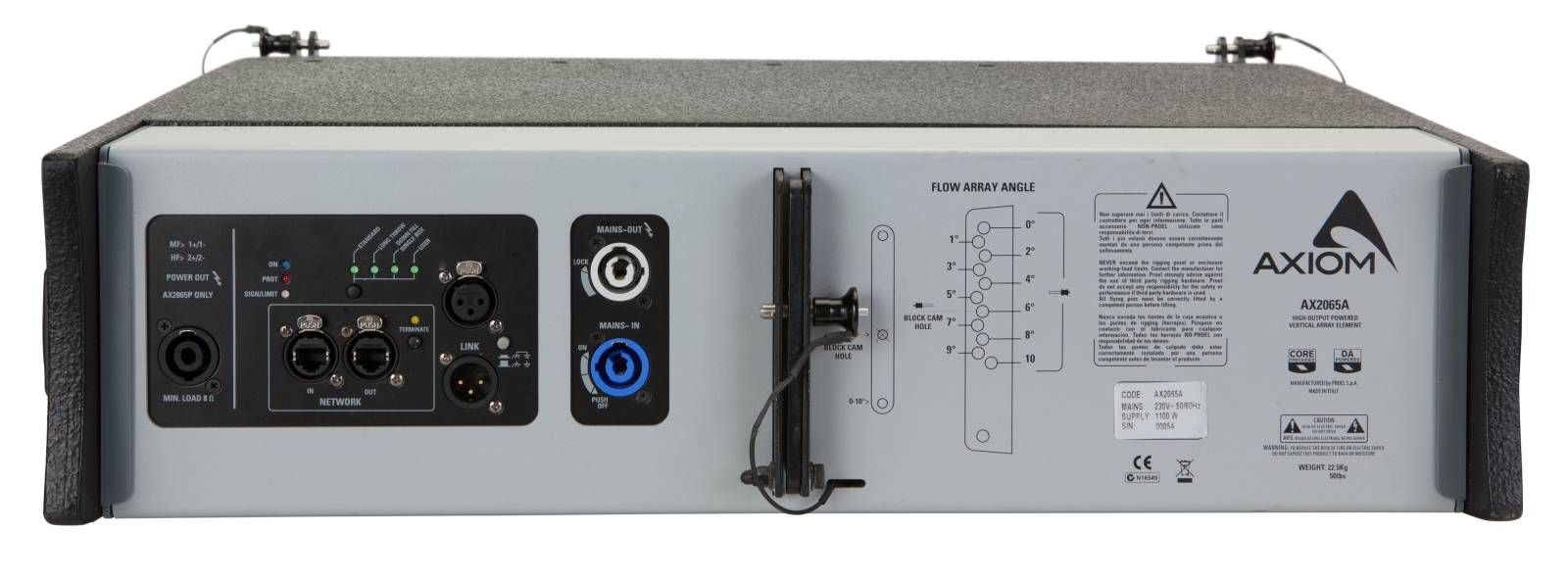

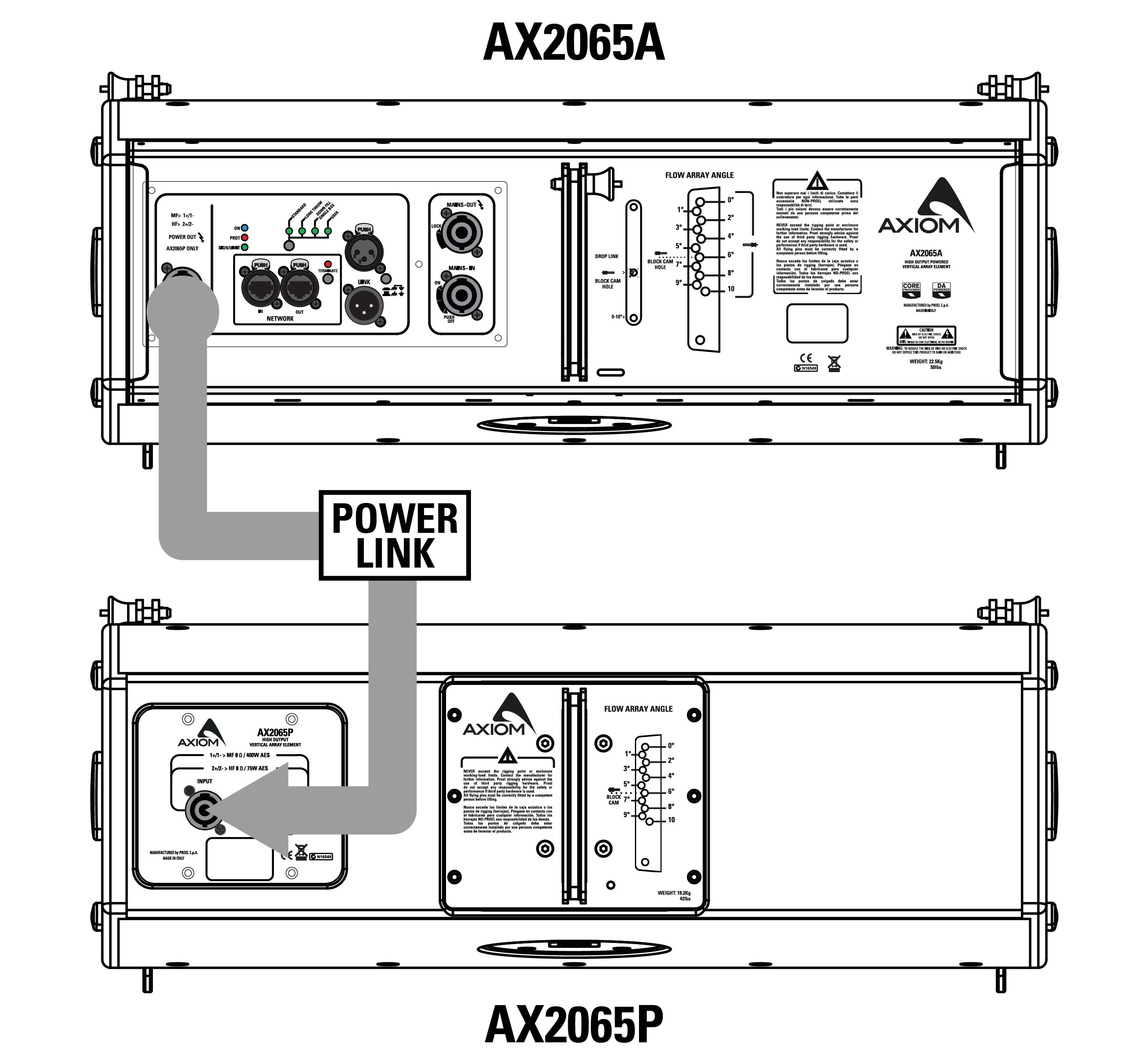

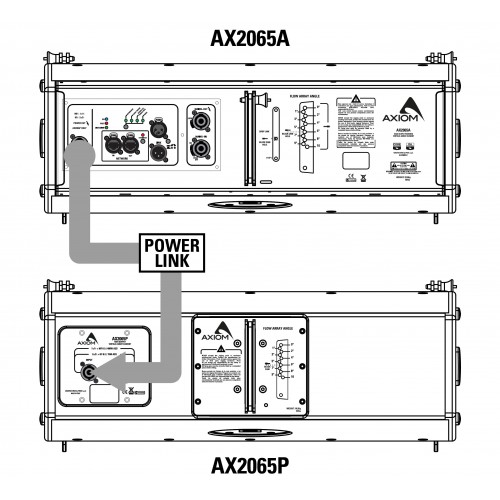

    The DA module employed for powering the AX2065A delivers in an ultra-compact package a maximum power of 2000W. Moreover, each AX2065A is able to power an additional passive AX2065P module through the available power output on the back panel. This feature will allow to assemble very competitive system solutions both for rental and installation applications.

    HARDWARE

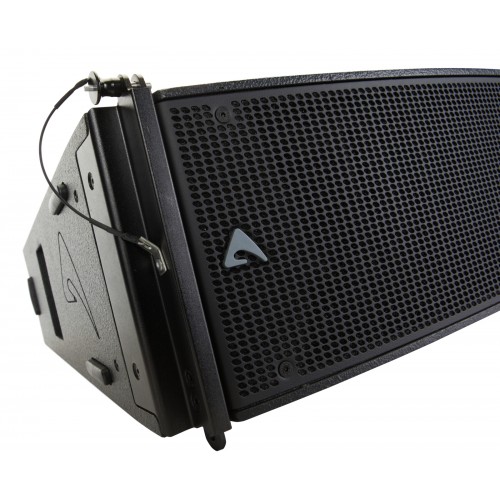

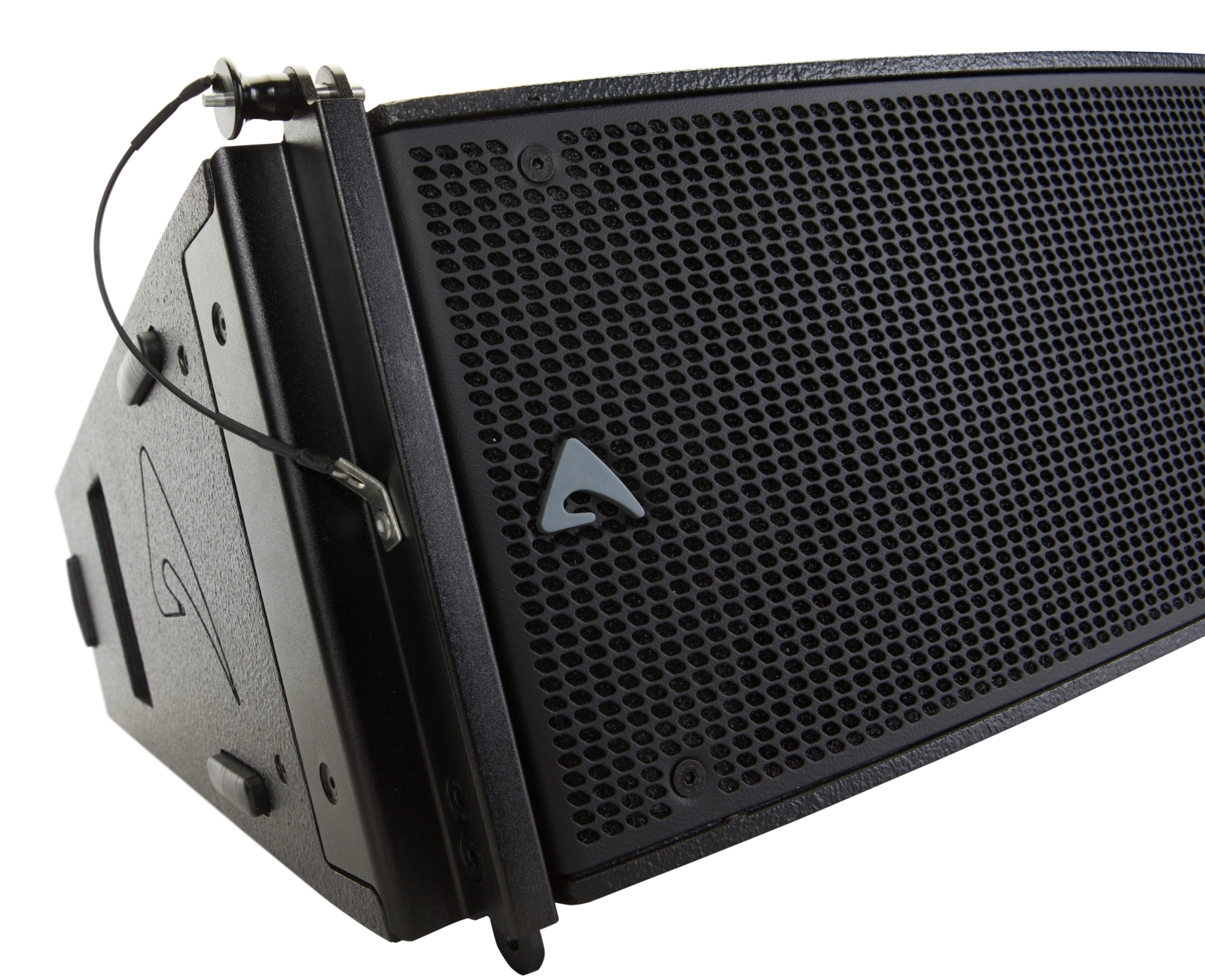

    The AX2065A includes as an integral part of the cabinet a built-in FLYING HARDWARE that provides an easy and  fast installation together with an excellent load- bearing capacity.

    In addition, each module features on the bottom panel a metal plate with a M20 thread for installing one or more modules on standard speaker stand.

    • High output Line Array element
    • Compact size, very good output-to-weight ratio
    • High quality, low compression, low distortion HF driver with Titanium Diaphragm and new suspension design
    • Very stable horizontal coverage
    • Transmission Line back loading for clean mid-bass reproduction and natural cardioid behavior
    • Natural sound Transmission Line HF projection wave-forming device
    • 96KHz / 40 bit floating point CORE processing with PRONET remote control
    • Digitally controlled Class D amplifier module with SMPS
    SYSTEM
    System’s Acoustic Principle Line Array Element
      Short Transmission Line LF Back Loading
      Acoustic Transmission Line HF Waveguide
    Frequency Response (±3dB) 80 Hz  –  18kHz  (Processed)
    Horizontal Coverage Angle 110° (-6dB)
    Vertical Coverage Angle 12° (-6dB)
    Maximum Peak SPL @ 1m 129 dB

    TRANSDUCERS
    LF Two 6.5”(165mm), 1.5” (38mm) aluminum voice coil, 16Ω each, paralleled
    HF One 1.4” driver, 2.5” (64mm) edgewound voice coil, titanium diaphragm, 8Ω

    ELECTRICAL
    Input Impedance 20 kΩ balanced, 10 kΩ unbalanced
    Input Sensitivity  +4dBu / 1.25 V
    Signal Processing CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
    Direct access Controls 4 Presets (Standard/Long Throw/Down Fill-Single Box, User), Network Termination, GND Link
    Remote Controls PRONET control software
    Network protocol CANBUS
    Amplifier Type Class D with SMPS, Variable Switching Frequency
    Output Power 1000W + 1000W
    Mains Voltage Range (Vac) 230V ±15%  -  115 ±15%  50/60Hz (internally selectable)

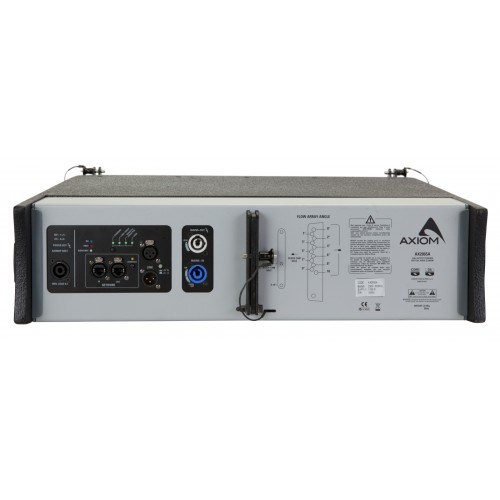

    IN / OUT Connectors Neutrik XLR-M / XLR-F
    IN / OUT Network Connectors ETHERCON®(NE8FAV)
    Mains Connector PowerCon® (NAC3MPA)
    Mains Link Connector PowerCon® (NAC3MPB)
    Cooling Variable speed DC fan

    ENCLOSURE & CONSTRUCTION
    Physical Dimensions
    Width 583 mm (22.95”)
    Height 244 mm (9.60”)
    Depth 481 mm (18.93”)
    Enclosure Material 15mm, reinforced Phenolic Birch
    Paint High resistance, water based paint
    Suspension system
    Front Suspension Aluminum Fast Link structure
    Back Suspension High Strength Steel with ¼ Fast Pin
    Net Weight 22.5 Kg (49.60 lbs.)
    3D Model
    KPTAX2065.3dsTechnical Drawing 3D
    AX2065A-3D.dwgTechnical Drawing 3D
    AX2065A-3D.3dsTechnical Drawing 3D
    KPTAX2065-3D.dwgTechnical Drawing 3D
    Software
    Presets AX2065A.zipPresets
    EASE_Focus_v3_1_180 AXIOM_GLL.zipEASE FOCUS 3 software and models
    Pronet_Setup_r232.zipPRONET Control Software Release 2.3.2
    AXIOM_AX Series_v3_2.zipEASE FOCUS 2/3 models
    Proel EASE 4_3.zipEASE 4.3 models
    Data Sheet
    AX2065A_data sheet.pdfTechnical Data Sheet
    Technical Drawing
    AX2065A-2D.dwgTechnical Drawing
    KPTAX2065-2D.dwgTechnical Drawing
    KPTSW215-2D.dwgTechnical Drawing
    User Manual
    FI-0115-04 KPTAX2065.pdfKPTAX2065 User's Manual
    AX2065A_UM_ENG.pdfUser's Manual English
    PRONET_manual rel23.pdfPRONET Control Software User's Manual English
    FI-0109-03 KPTSW215.pdfKPTSW215 User's Manual English
    KP010 KP010 Professional heavy-duty adapter, made of aluminum alloy, suitable for stands with Ø 35 mm end tube

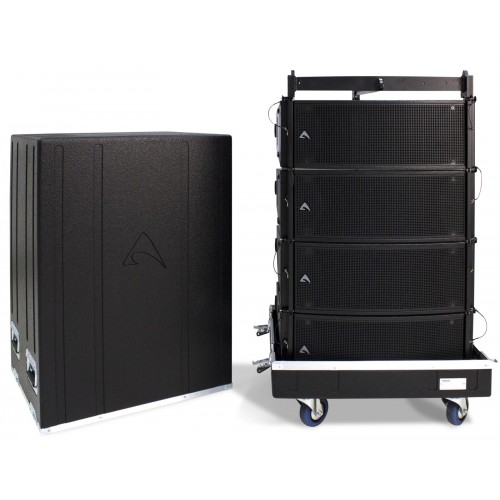

    AXCASE05 AXCASE05 Flight-case for 4 AX2065P / AX2065A with flying bar

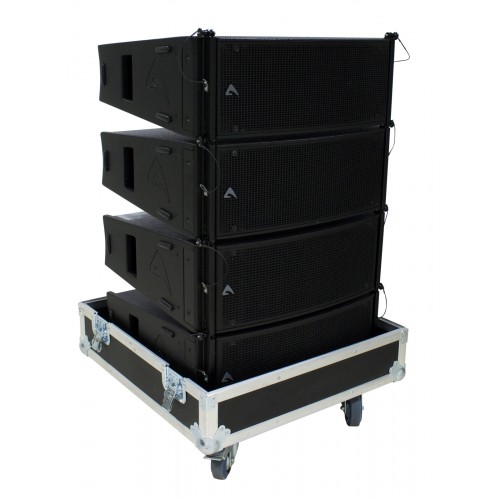

    AXCASE06 AXCASE06 Flight-case for 4 AX2065P / AX2065A
    KPTSW215 KPTSW215 Flying bar for AX2065 and SW215
    KPTAX2065 KPTAX2065 Flying bar for 4 AX2065P / AX2065A

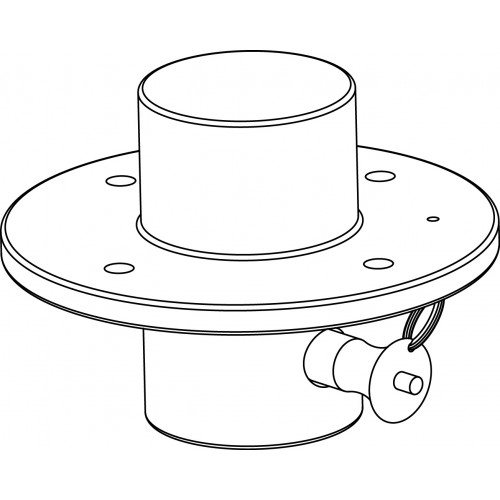

    KPAX265 KPAX265 Pole Adaptor
    RAINCOV2065 RAINCOV2065 AX2065 rain cover
    AXFEETKIT AXFEETKIT Kit made of 6pcs BOARDACF01 foot
    USB2CAND USB2CAND USB to CAN converter with two network connectors
