SW215FP

Dual 15” (380mm), Very High Output, Manifolded Band Pass, Subwoofer System - FLYING VERSION


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (2)
  • Accessories (2)
  • The SW215P subwoofer is designed to deliver high quality low frequency reproduction where very high output is a key requirement, together with well defined deep bass response and fast transient response. Its compact size and light weight make it suitable for several different uses, ranging from touring applications to fixed installations and high-level dance clubs.
    The SW215P is a very high quality subwoofer system featuring some of the most advanced technologies for low frequency reproduction. Its unique and innovative design is based on a configuration that can be defined as Manifolded Band Pass. It uses manifolding of the front side of the cones to maximize the mutual coupling between the two drivers. This innovative configuration does not use any large resonant cavity to load the speaker, but very compact cavities in order to obtain advantages in terms of definition, both at the lowest end and the upper bass.

    TRANSDUCERS
    The SW215P subwoofer system is equipped with two high power 15” (380mm) transducers capable of long excursion (up to 33mm peak-to-peak), controlled by high stiffness Double Silicon Spider as centering suspension and by heavy duty surround.  The motor structure features high strength (BL²/Re) with optimized symmetry and excursion controlled by Inner Flux Demodulating Ring.
    The robust copper 75mm (3”) voice coil is wounded in two different layers both outside and inside the coil support, then doubling the coil surface exposed to air cooling and consequently improving the long term thermal capacity of the loudspeaker.
    Cones are made of very high-stiffness reinforced paper, featuring also invisible water repellent treatment.

    PERFORMANCES
    The SW215P represents an innovative subwoofer design that features unprecedented performances in terms of low frequency definition and “punchy” feeling in the upper bass range.
    The combination of accuracy in acoustic transient response together with the use of latest technology in transducers linearity, signal processing and power amplifiers allows the SW215A to deliver unprecedented low frequency reproduction quality with solid deep end, together with very fast and accurate bass response.

    • Very High Output
    • Compact size for a very good output-to-weight ratio
    • Manifolded Band Pass configuration for a high output in a compact size
    • High-strength, water repellent cones
    • Long-excursion split coil for extended linear response
    SYSTEM
    System’s Acoustic Principle Manifolded Band Pass
    Frequency Response (±3dB) 39 Hz  –  120 Hz    (Processed)
    Frequency Range (±10dB) 35 Hz  –  300 Hz    (Unprocessed)
    Nominal Impedance 8 Ω + 8 Ω
    Minimum Impedance 6.1 Ω + 6.1 Ω @ 41Hz
    Sensitivity (1.41V @ 1m, 2Pi) 102dB (averaged from 40 to 100Hz)
    Maximum Peak SPL @ 1m 139 dB

    TRANSDUCERS
    Type Two 15” (380mm), 3” (75mm) VC
    Cone High stiffness, water repellent
    Voice Coil Type Flux Demodulating Ring
    Suspension Double Centering Spider

    INPUT CONNECTIONS
    Connector Type Neutrik® Speakon® NL4 x 2
    Input Wiring LF1 = Pin 1+/-; LF2 = Pin 2+/-)

    POWER HANDLING
    Continuous AES Pink Noise Power 700W + 700W
    Program Power 900W + 900W
    Peak Power 2100W + 2100W
    Power Compression
    @ -10dB Power (180W + 180W) 0.8dB
    @ -3dB Power (900W + 900W) 1.5dB
    @ 0dB Power (1800W + 1800W)  2.7dB

    ENCLOSURE & CONSTRUCTION
    Physical Dimensions
    Width 571 mm (22.48”)
    Height 800 mm (31.50”)
    Depth 582 mm (22.91”)
    Depth Including Wheels 710 mm (27.95”)
    Enclosure Material 15mm, reinforced phenolic birch
    Paint High resistance, water based paint
    Suspension system (SW215AF)
    Side Suspension High Strength Steel with ¼ Fast Pin
    Back Suspension High Strength Steel with ¼ Fast Pin
    Wheels 4 heavy-load 100 mm ø
    Net Weight SW215P: 61 Kg (134.48 lbs.) - SW215FP: 65 Kg (143.30lbs.)



    3D Model
    sw215fp_3D.3dsTechnical Drawing 3D
    KPTSW215.3dsTechnical Drawing 3D
    sw215fp-3D.dwgTechnical Drawing 3D
    KPTSW215-3D.dwgTechnical Drawing 3D
    Software
    AX2065P_PC260 presets.zipPresets for PC260
    AXIOM_SW215_v1_0.zip EASE Focus 3 models
    AXIOM_AX Series_v3_2.zipEASE FOCUS 2/3 models
    EASE_Focus_v3_1_180 AXIOM_GLL.zipEASE FOCUS 3 software and models
    Data Sheet
    SW215P.0.pdfTechnical Data Sheet
    Technical Drawing
    sw215fp_2D.dwgTechnical Drawing
    KPTSW215-2D.dwgTechnical Drawing
    User Manual
    FI-0109-03 KPTSW215.pdfKPTSW215 User's Manual English
    SW215P-SW215FP_UM_ENG.pdfUser's Manual
    KPTSW215 KPTSW215 Flying bar for AX2065 and SW215

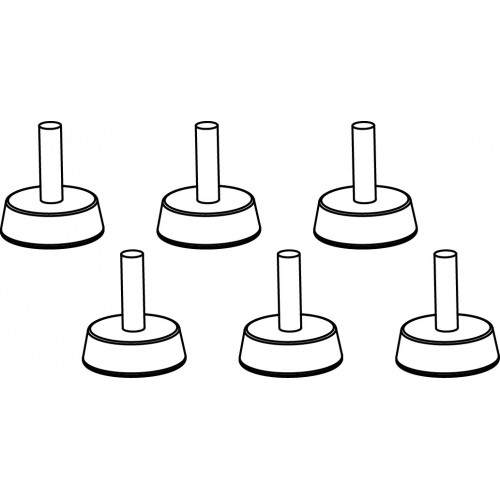

    AXFEETKIT AXFEETKIT Kit made of 6pcs BOARDACF01 foot
