AX6C

6 x 3.5” (88mm), High Power, Passive, Portable Line Array Element


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (8)
  • Accessories (7)
  • DESCRIPTION

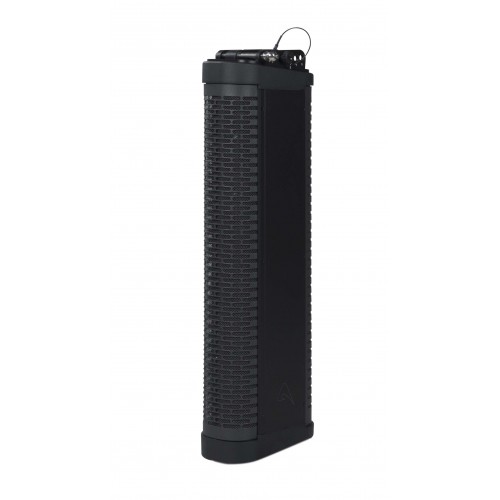

    The AX6C Line Array is a passive system equipped with six 3.5” neodymium transducers with waterproof cones, designed for portable and permanently installed applications where high power and clarity are needed. The aluminum frame box structure ensures lightweight and strength, while the shape features a back-loaded transmission line design that delivers clean mid-bass reproduction and natural cardioid behaviour. A Front Diffraction Waveguide (FDW) delivers wide horizontal dispersion, making the system flexible and adaptable to many different applications.

    THE SYSTEM
    The AX6C line array module has been designed to be used as a stand-alone or multiple column system in fixed installations, frontfill, or under balcony applications, and for low-profile stage monitoring solutions. It can also be combined with AX12C and AX12LF columns in multiple column systems in different configurations.
    The AX6C can be driven by the SW2100A processed active subwoofer or by QC Series Class D processed amplifiers. Up to eight AX6C modules (or different combinations of AX6C and AX12C) can be driven by one channel of the SW2100A subwoofer or of a QC amplifier. Different presets for different combinations are available for the built-in CORE DSP, which can be also remotely controlled using PRONET AX software.

    RIGGING HARDWARE AND ACCESSORIES
    Thanks to the elegant mechanical design the AX6C can be easily transported, while the integrated suspension system makes its deployment very fast and simple. Each unit comes with two aluminum brackets and four pins that allows multiple array elements to be easily combined either together, with the AX12C, or with the matching SW2100A subwoofer. The brackets allow inter-cabinet angles of 0° and 2°.
    A complete range of accessories for transport, installation and connections is available.

    KPTAX12C Flybar for suspending up to 8 units
    KPTWAX6C Bracket for wall, ceiling, or floor mounting
    KPTWAX12C Wall bracket for up to 4 units
    KPTFAXC Foam adapters for stage monitor or frontfill application
    KPTFAX12C Floor stand
    KPTPOLEAX12C Pole adapter

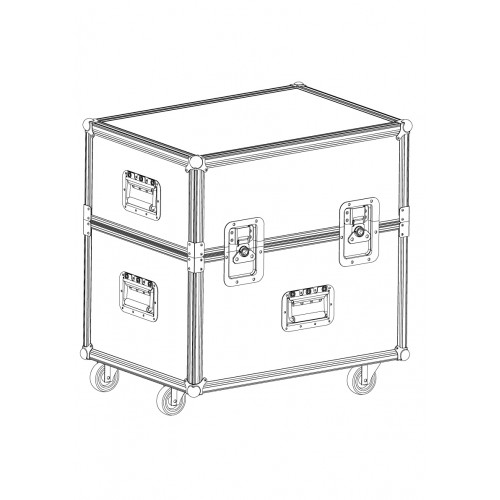

    AXCASE12PT Flight case for six AX6C
    COVERAX6C Cover / carry bag for single AX6C
    PLG716 Galvanised steel shackle
    ESO2500LU025 25cm 4x4mm speakON™ linking cable

    KEY FEATURES
    • High Power passive portable Line Array element
    • 6 x 3.5” neodymium transducers with waterproof cones
    • 180W continuous power – 360W program power
    • Line Array dispersion characteristics
    • Acoustic transmission line back loading design, resulting in clean mid-bass reproduction and natural cardioid behaviour
    • Wide horizontal dispersion through Front Diffraction Waveguide (FDW)
    • Fast, easy-to-use integrated suspension system
    • Aluminium frame structure
    • Designed for mobile and installed applications
    • Black or white finish

    APPLICATIONS
    • Portable system for live bands
    • Installed system for theatres, clubs, houses of worship, conference rooms
    • Portable AV system for corporate events
    • High performance mobile DJ system
    SYSTEM
    System’s Acoustic Principle Line Array Element
      Short Transmission Line Back Loading
      Acoustic Diffractor
    Frequency Response (-6dB) 200 Hz - 16 Hz (Processed)
    Nominal Impedance 32 Ohm
    Horizontal Coverage Angle 100°
    Sensitivity (5.66 V) 102 dB SPL @ 1m*
    Maximum (peak) SPL  124 dB SPL @ 1m*
    TRANSDUCERS
    Type 6 x 3.5" (88mm) Neodymium magnet woofers, 1"(25mm) VC
    Cone Waterproof Cone
    Voice Coil Type Ventilated voice coil
    INPUT CONNECTIONS
    Connector Type Neutrik® Speakon® NL4 x 2   (1+/1- signal IN & LINK ; 2+/2- thru)
    POWER HANDLING
    Continuous AES Pink Noise Power  180 W
    Program Power  360 W
    ENCLOSURE & CONSTRUCTION
    Width 107 mm
    Height 626 mm (without flying system)
      673 mm (with flying system)
    Depth 193 mm
    Enclosure Material Aluminum
    Paint High resistance, water based paint
    Flying system Aluminum Fast Link structure with dedicated pins
    Net Weight 6.6 kg (without flying system)
      8.7 kg (with flying system)

    *measured @4 m and scaled @1 m
    3D Model
    AX6C-3D.dwgTechnical Drawing 3D
    AX6C-3D.3dsTechnical Drawing 3D
    Software
    EASE_Focus_v3_1_180 AXIOM_GLL.zipEASE FOCUS 3 Software & Models
    AXIOM_Column_v1_1.zipEASE Focus 2/3 models
    Data Sheet
    AX6C datasheet_2018.pdfAX6C Data Sheet
    Technical Drawing
    AX6C-2D.dwgTechnical Drawing 2D
    User Manual
    FI-0153-00 KPTWAX6C.pdfKPTWAX6C User's Manual
    AX6C_UM_ENG.pdfAX6C User's Manual
    FI-0154-00 KPTFAXC.pdfKPTFAXC User's Manual
    KPTAX12C KPTAX12C Flying Bar AX12C
    KPTWAX12C KPTWAX12C Wall Bracket AX12C
    KPTFAX12C KPTFAX12C Floor stand AX12C
    KPTPOLEAX12C KPTPOLEAX12C Pole adapter for AX12C
    KPTWAX6C KPTWAX6C Wall/ceiling/floor bracket for AX6C
    KPTFAXC KPTFAXC Foam floor stand for AXC (pair)
    AXCASE12PT AXCASE12PT Flight-case for 6 AX6C
