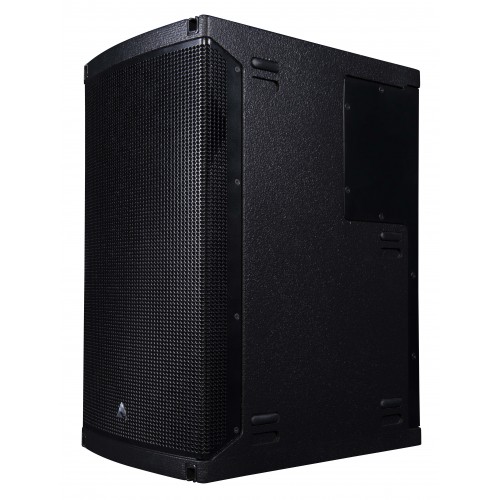

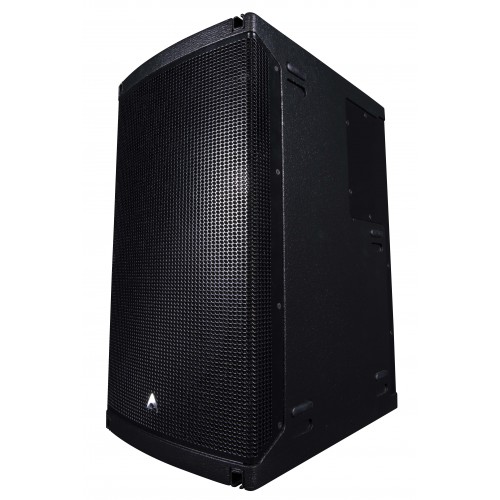

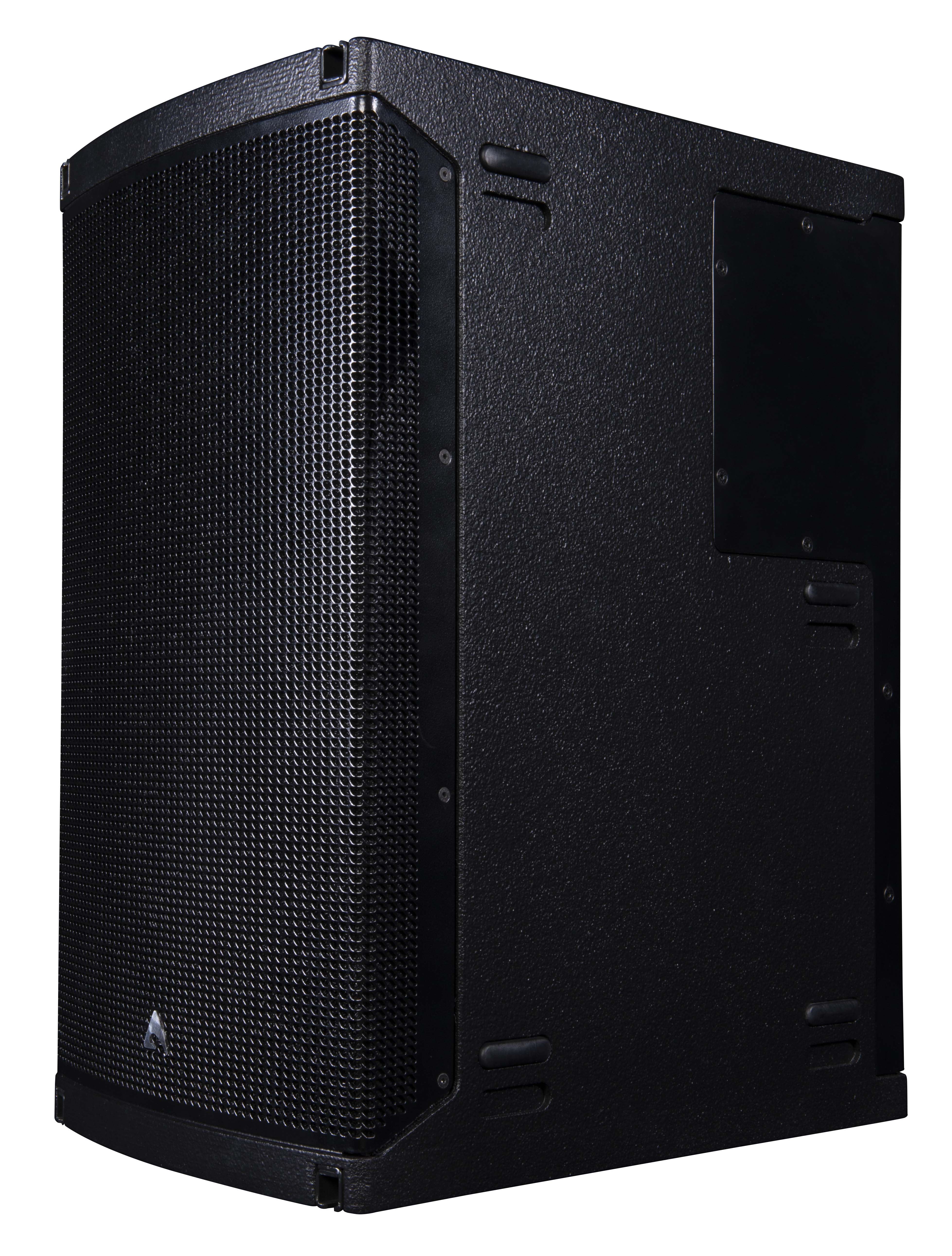

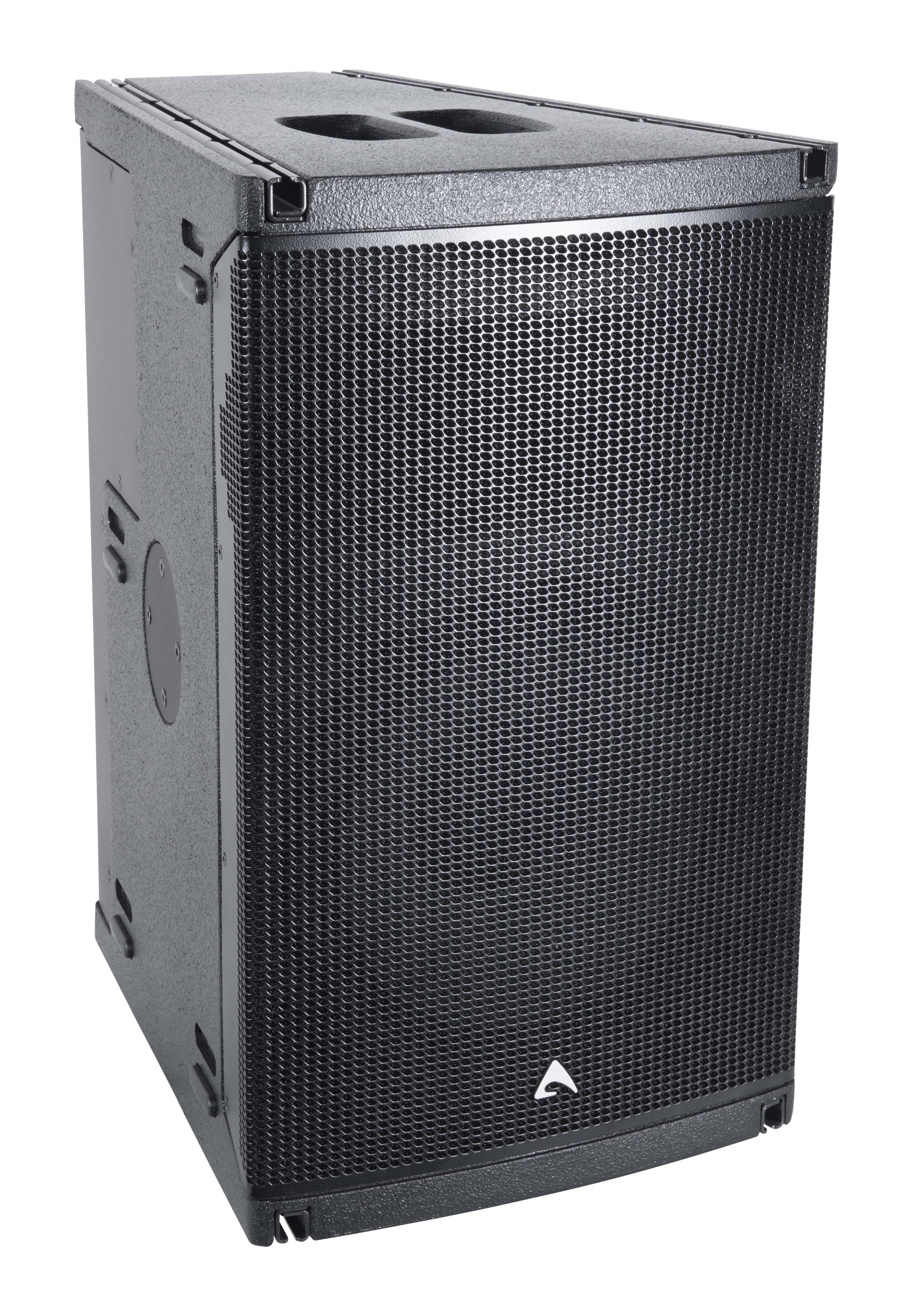

AX1012 is a versatile constant curvature full-range element that can be used to create both vertical and horizontal line source arrays and also as a high-directivity point-source loudspeaker.
- Powered Constant Curvature Array Element
- 12” woofer,1.4” HF neodymium compression driver
- Constant curvature Seamless Transition Waveguide (SWT) with 100° H x 20° V dispersion
- Class D amplifier module with SMPS
- 96KHz / 40 bit floating point CORE processing with PRONET remote control
- Integral suspension hardware for horizontal or vertical array installation
- Pole mounting available for free-standing applications
- Passive versione available (AX1012P)
STW - SEAMLESS TRANSITION WAVEGUIDE
The 1.4” high frequency compression driver is coupled to STW - Seamless Transition Waveguide, which ensures a precise control of mid-high frequencies both on horizontal and vertical axis, for a perfect acoustic coupling between the enclosures that form the array. The unique waveguide design produces vertical line source directivity with a horizontal pattern that is maintained down to approximately 950Hz. This allows to project clean music and vocals evenly around the audience without hot-spots and dead-spots. The sharp SPL oﬀ-axis rejection is used to avoid reﬂecting surfaces in the enclosure coupling plane and perfectly adjusts the acoustic coverage to the audience geometry.
Phase interactions between traditional stand-alone Point Source loudspeakers featuring poor directionality, make it difficult to achieve consistent and lobe-free dispersion. This phenomena produces destructive interferences that affect the tonal balance, claritiy and intelligibility at many listening positions. Thank to the Seamless Transition Waveguide the system designer or sound engineer can build true line source horizontal or vertical arrays in 20° building blocks with seamless integration between cabinets.
CONSTRUCTION & RIGGING HARDWARE

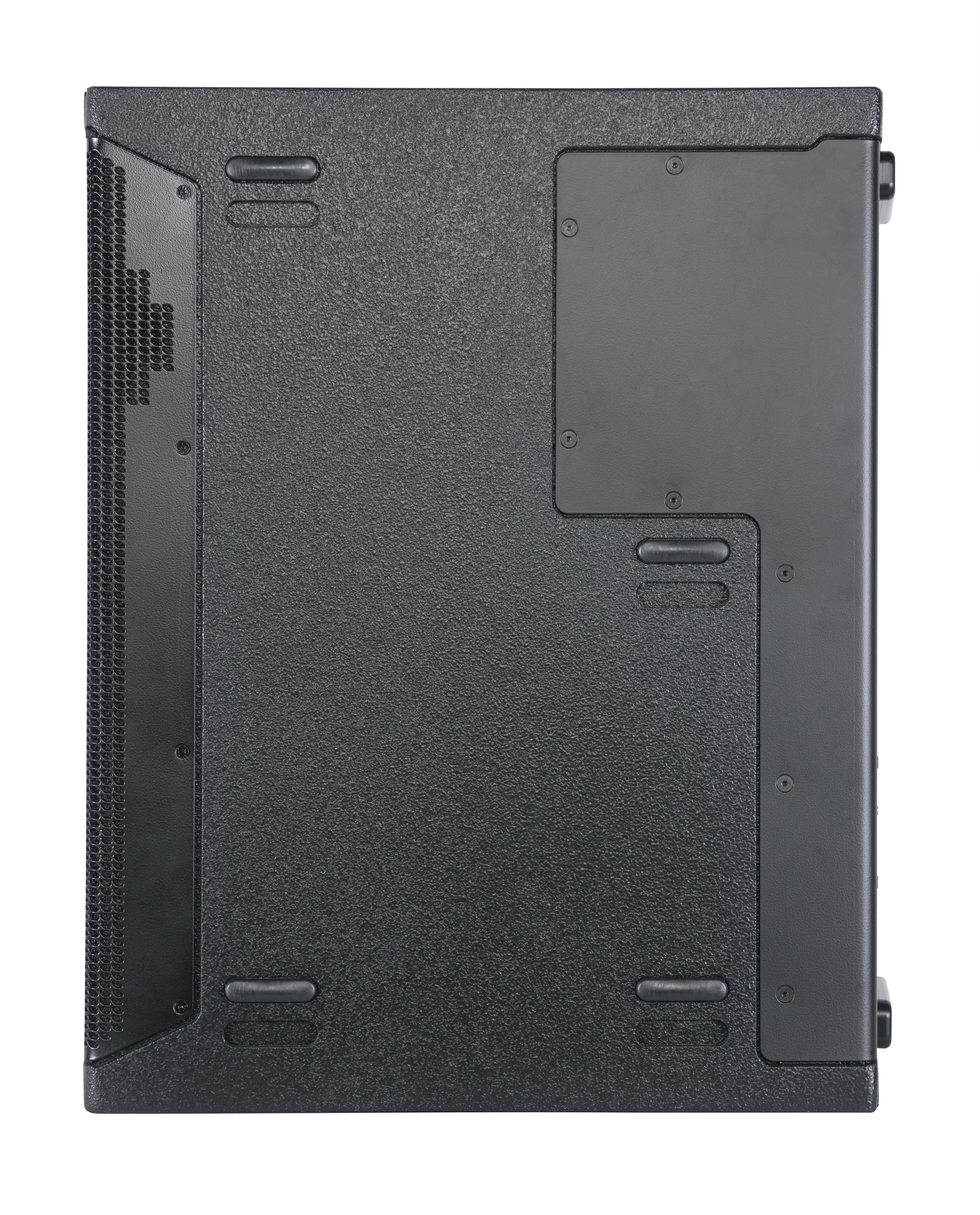

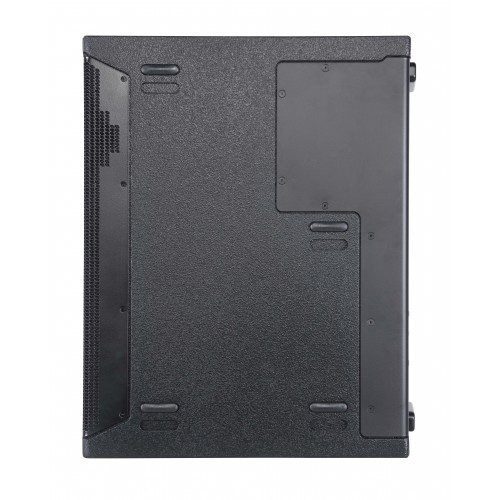

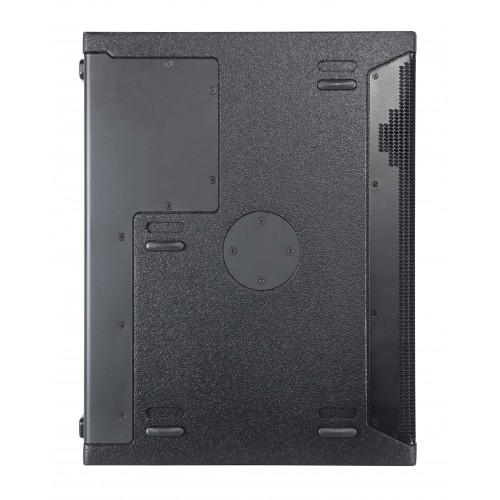

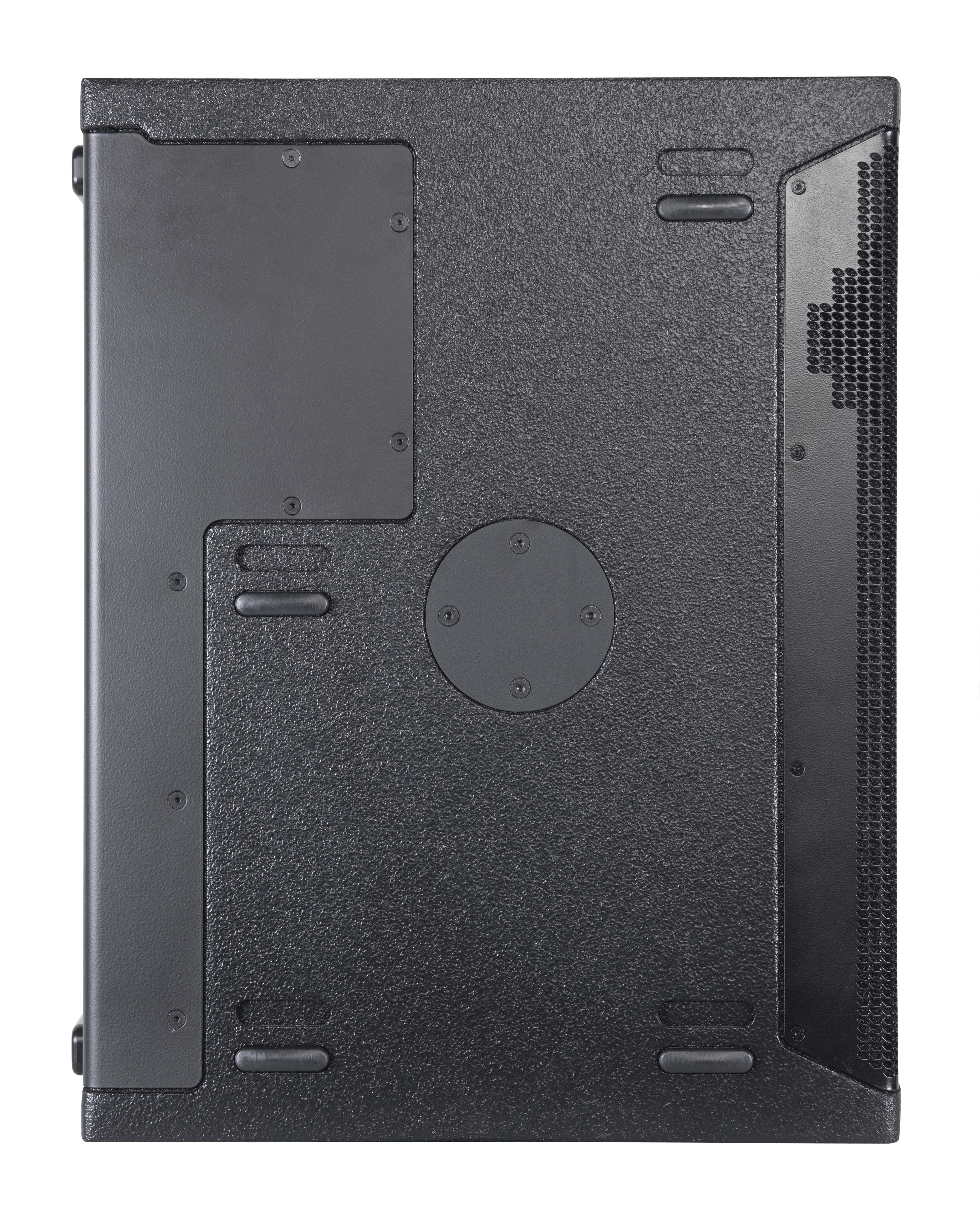

The AX1012 tour-grade 15mm phenolic birch plywood cabinet is provided with four integrated steel rails, to be used for coupling the cabinets with the KPTAX1012 aluminium Coupling Bars.
A comprehensive set of accessories is available for creating horizontal or vertical arrays, for ground-stacking the systems and also for pole mounting one or two units.
The KPTAX1012H is a coupling bar to be used to fly the AX1012 in an horizontal array.
The KPTAX1012T Suspension Bar allows an array of up to 6 units to be installed using a single suspension point.
The KPAX1012V is a flying bar than be used to create a vertical array of up to 6 units. It can be used also for down-firing arrays.

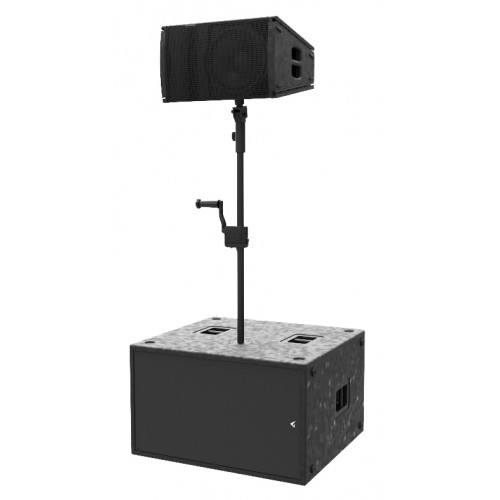

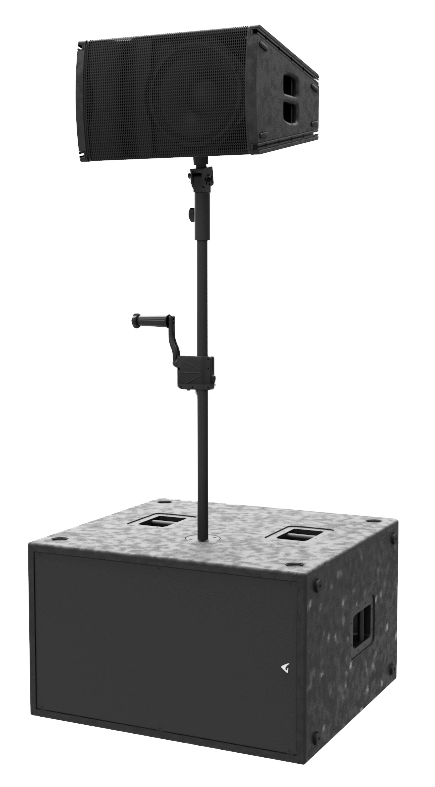

The KPAX265 Pole Adapter and the KP010 Tilt Adapter allows the AX1012 to be installed on a pole, with the possbility to tilt the cabinet in order to aim the sound to the audience.
AX1012 arrays deliver seamless coverage only to desired areas minimizing unwanted reflections of walls and surfaces or avoiding interactions with other sound systems, with the stage or with other areas. Multiple units in a horizontal array, for example, allow to shape the radiation pattern in slices of 20°, providing exceptional flexibility in the construction of the desired coverage angle. In this way, even a center array with 360° coverage angle can be assmebled very easily.
To extend the system’s low frequency response the AX1012 can be complemented by sub-woofers from the Axiom SW series such as SW18A, SW1800A or SW218XA.
AX1012 is recommended for the use as indoor FOH (Left – Centre - Right systems) or outdoor FOH in small to medium-sized events. It can be used also as a complement to large systems as Out-ﬁll, In-ﬁll or distributed ﬁll applications in a wide range of venue, providing clear sound to areas not fully reached by the main system, while minimizing unwanted interactions and room reﬂections.
- Sound reinforcement in small-to-medium-size live venues.
- Side-fill, Out-ﬁll or In-ﬁll applications
- Down-firing array systems
- Delay systems in stadia and arenasTheatres
- Corporate & A/V
- Theme parks
- Houses of Worship
- Leisure and Fitness
The system processing is based on the CORE DSP platform designed by the PROEL R&D Laboratories using one of the most advanced SHARC DSP for audio application. It features 40bit, 96kHz floating point resolution and top quality 24bit AD/DA converters for perfect signal integrity, dynamic range in excess of 110dB and superior sonic performance.
Thanks to its massive processing power, the CORE platform is capable of providing the most sophisticated algorithms for speaker processing, together with remote control and networking capability.
The PRONET AX control software, working on a solid and reliable CANBUS based network protocol, provides an intuitive interface for the remote control of the whole system, with the possibility of EQing, delaying, managing the protection functions, and monitoring the status of the amplifier.
Three different operating modes are provided: SETUP, EDIT, and LIVE; these can be chosen depending on whether systems are to be set up for the first time, units are to be edited individually, or operated under live conditions.
The interface allows different choices of information or features to be displayed or selected on the unit’s control panels and provides a method of fast Group assignment. The software allows the easy creation of arrays of AXIOM loudspeakers and global control of volume, mute and EQ functions for each array.
Snapshots of the system can be loaded or saved, including a specific unit’s position on the desktop and all the parameters of the whole system.
The AX1012A is powered by a DA SERIES power module, a new generation of CLASS D power amplifier with SMPS. The innovative technology used for these amplifiers offers top-of-the-range performances, such as a superior sound definition at any audio frequency, very high dynamics even for low level signals, and very low distortion even at maximum power.
Output power is optimised specifically to the drive units for efficient power transfer, with the low frequency section producing 900 watts while 300 watts is available for the high frequency compression driver.

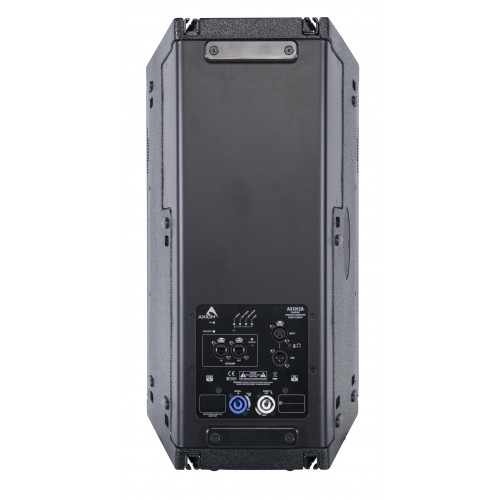

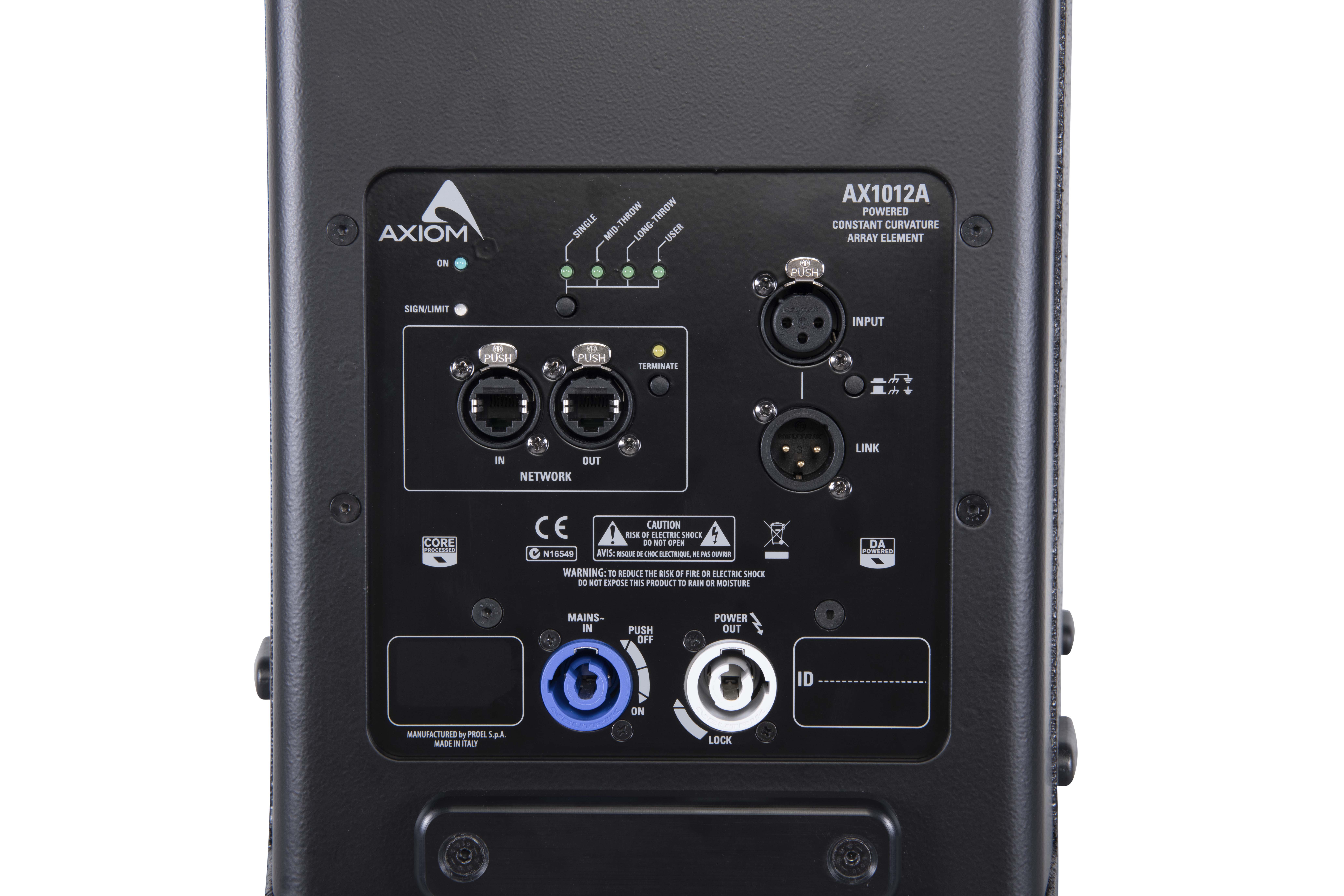

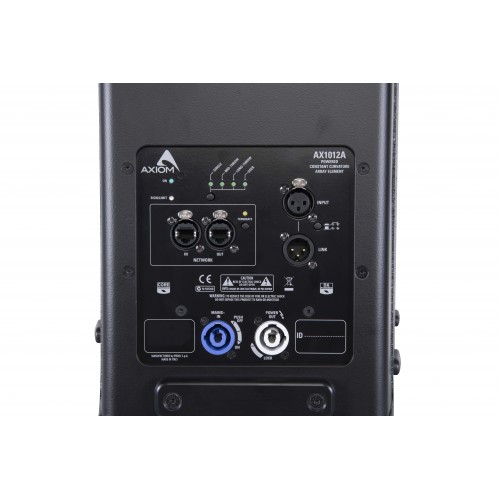

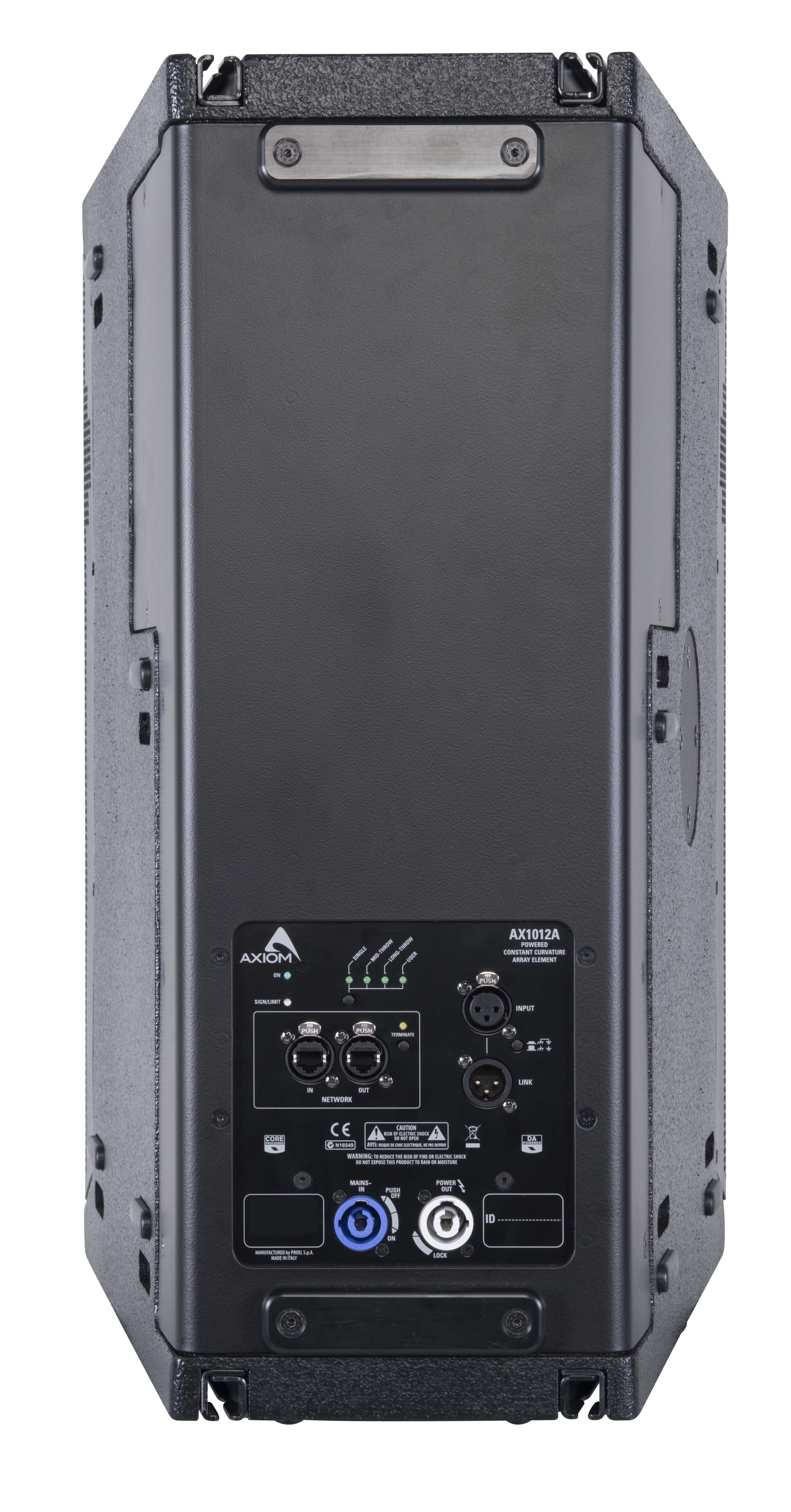

Input and link connections are via balanced 3-pin XLR connectors, and a ground lift switch is provided for hum-free operation. Mains power is connected through a locking Neutrik PowerCON, and a Power Out connector allows mains power to be linked to additional AX1012A cabinets.
|System’s Acoustic Principle||Constant Curvature Array Element|
|Frequency Response (-6dB)||65 Hz – 17 kHz (processed)|
|Horizontal Coverage Angle||100° (-6dB)|
|Vertical Coverage Angle||20° (-6dB)|
|Maximum (peak) Output||134 dB SPL @ 1m|
|LF||1.4" exit, neodymium magnet compression driver - 2.4" Aluminum VC|
|HF||12" ferrite magnet low frequency woofer - 3" aluminum VC|
|Input Impedance||20 kΩ balanced, 10 kΩ unbalanced|
|Input Sensitivity||+4dBu / 1.25 V|
|Signal Processing||CORE processing, 96kHz / 40bit floating point SHARC DSP
24 bit AD/DA converters
|Direct access Controls||4 Presets (SINGLE/MID-THROW/LONG-THROW/USER)
Network Termination, GND Link
|Remote Control||PRONET control software|
|Amplifier Type||Class D with SMPS|
|Output Power||900W + 300W|
|Mains Voltage Range (Vac)||230V ±15% - 115 ±15% 50/60Hz (internally selectable)|
|IN / OUT Connectors||Neutrik XLR-M / XLR-F|
|IN / OUT Network Connectors||ETHERCON®(NE8FAV)|
|Mains Input Connector||PowerCon® (NAC3MPA)|
|Mains Link Connector||PowerCon® (NAC3MPB)|
|Cooling||Variable speed DC fan|
|ENCLOSURE & CONSTRUCTION|
|Width||246 mm (9.7")|
|Height||611 mm (24.0")|
|Depth||500 mm (19.7")|
|Enclosure Material||15mm, reinforced phenolic birch|
|Paint||High resistance, water based paint|
|Flying system||Captive suspension system|
|Net Weight||34.5 kg (76 lbs)|
