21” (530mm), High Output, Bandpass Subwoofer

  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (3)
  • Accessories (1)

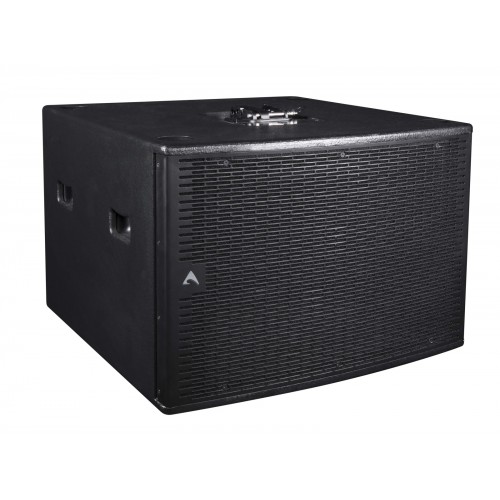

    The SW2100P is a very compact Band-Pass/Bass-Reflex subwoofer providing high output and extended low frequency response. It is equipped with a single 21” neodymium transducer with a 4” ISV voice coil, large displacement suspension system, and composite reinforced, water repellent cone, able to provide clean and undistorted LF reproduction at very high SPL.
    The loudspeaker is designed with a unique motor featuring a high grade neodymium magnet assembly in a structure optimized for thermal and magnetic efficiency. Its features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone and the proprietary Double Silicon Spider (DSS) technology, allows an ultra-linear piston action and provides full mechanical control across the entire working range. The 100mm (4 in) state-of-the-art voice-coil utilizing Interleaved Sandwich Voice coil (ISV) technology, provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor.

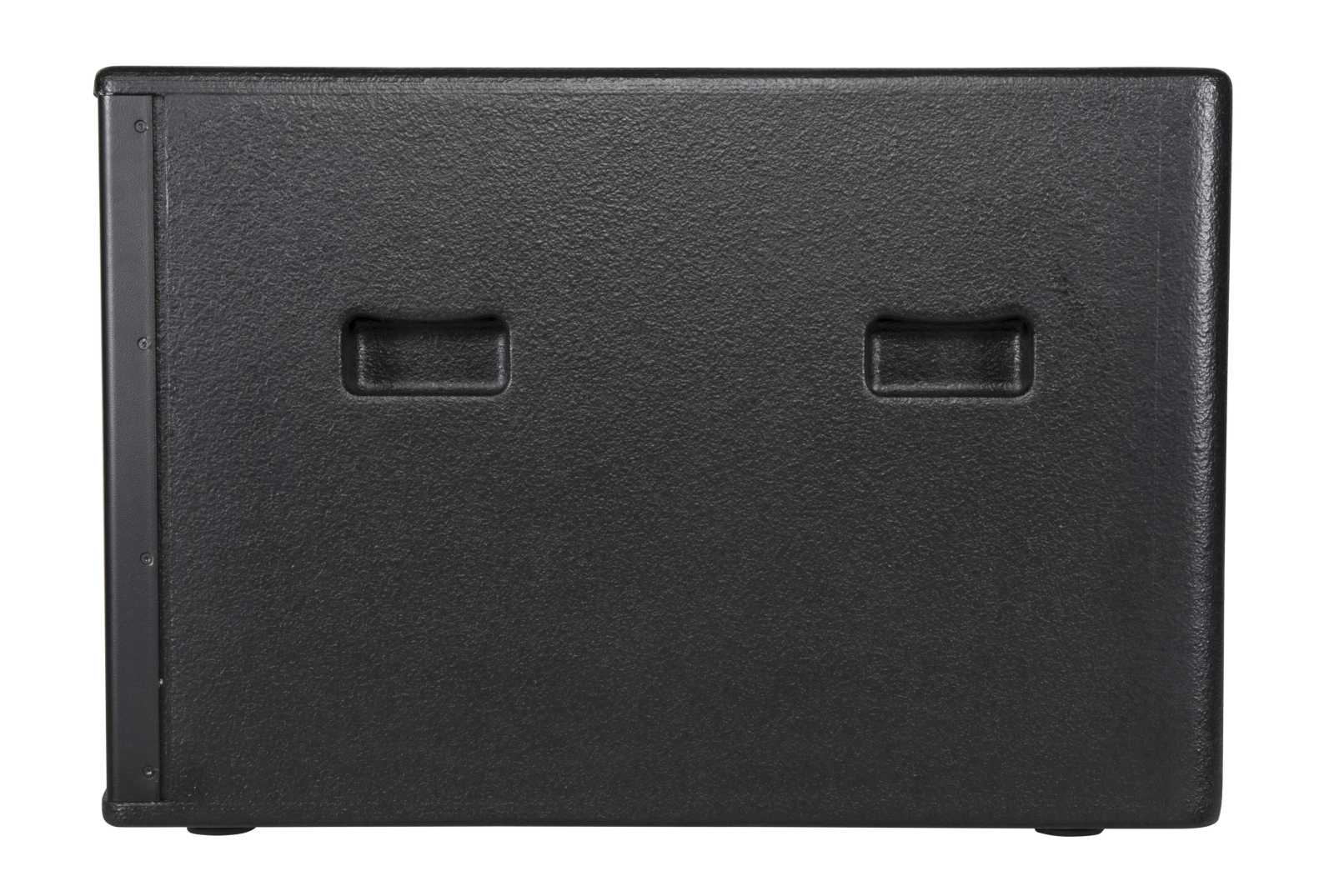

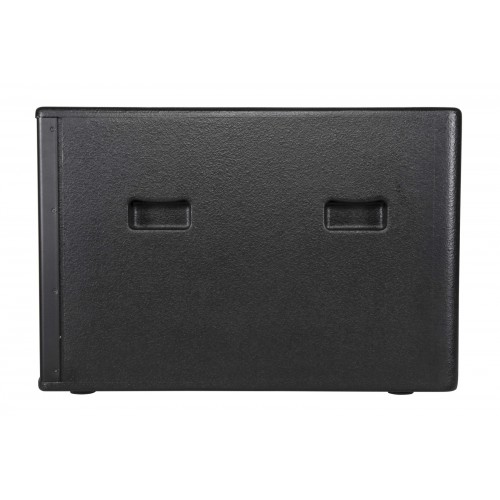

    The phenolic birch plywood cabinet is equipped with pole mount socket, stacking feet, flush handles, and heavy duty wheels to enable easy handling and transportation.
    It will deliver high level and extended low bass performance from a very compact cabinet, and thanks to the integral pole mount socket partners well with any of the ED point source and AXIOM line array loudspeakers in any audio applications, while its small size enables it to be easily fitted into tight venue spaces.

    • Band-Pass/Bass-Reflex Passive Subwoofer
    • Single 21” Neodymium woofer with 4” ISV voice coil
    • Water repellent cone
    • Very compact enclosure
    • Very good output-to-weight ratio
    • 18mm birch plywood enclosure
    • Heavy duty castors

    • Live sound reinforcement
    • Theatre
    • Corporate & A/V
    • Live music venues
    • House of Worship
    • Leisure and Fitness
    • Nightclubs and Bars

    System’s Acoustic Principle Band-pass / bass-reflex
    Frequency Response (-6dB) 34 Hz - 180 Hz (Processed)
    Nominal Impedance 4 Ohm
    Sensitivity (1.41V @ 1m, 2Pi) 94 dB
    Maximum Peak SPL @ 1m 138 dB
    Type 21" Neodymium magnet woofer, 4" (100mm) VC
    Cone High stiffness (Complex Composite), water repellent
    Voice Coil Type Interleaved Sandwich Voice coil (ISV)
    Suspension Triple-roll
    Connector Type Neutrik® Speakon® NL4 x 2
    Continuous AES Pink Noise Power  1600 W
    Program Power  3200 W
    Peak Power  7200 W
    Power Compression
    @ -10dB Power (320 W) 0.62 dB
    @ -3dB Power (1600 W) 2.18 dB
    @ 0dB Power (3200 W) 3.57 dB
    Dimensions (W x H x D) 760 mm (29.9”) x 511 mm (20.1”) x 770 mm (30.3”)
    Depth Including Wheels 881 mm (34.6”)
    Enclosure Material 18mm, reinforced phenolic birch
    Paint High resistance, water based paint
    Transport 4 x heavy duty 100mm (4”) castors, 4 handles
    Net Weight 56 Kg (123.5 lbs.) - 60 Kg (132.3 lbs) including wheels
    Data Sheet
    SW2100P datasheet 2023.pdfSW2100P Data Sheet
    Technical Drawing
    SW2100P.pdfSW2100P Technical Drawing
    User Manual
    SW2100P_UM_ENG.pdfSW2100P User's Manual

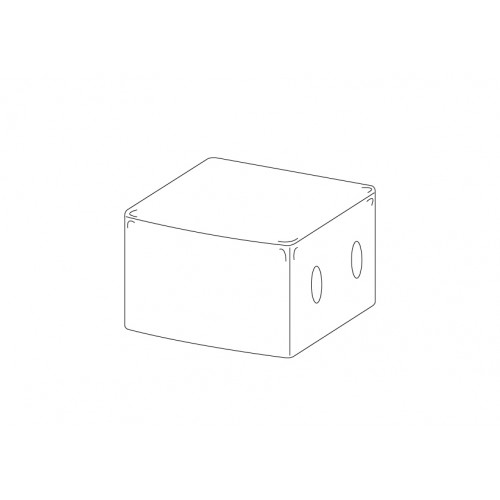

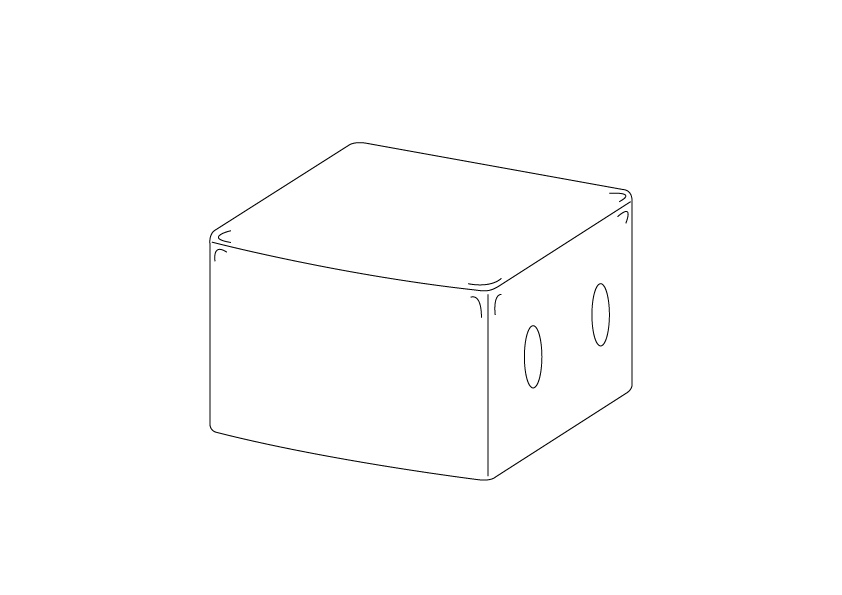

    COVERSW2100 COVERSW2100 Cover for SW2100A
