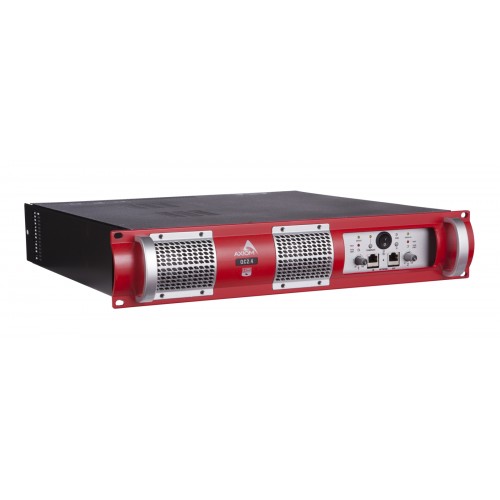

QC2.4

2-channel DSP amplifier


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (14)
  • Accessories (1)
  • AXIOM QC series amplifiers are high performance 2U rack mount models with built-in DSP, designed for powering large touring PA systems or loudspeaker systems in high-profile fixed installations. They are available in standard two channel configurations for powering typically a pair of full range loudspeakers or frequency band of a stereo multi-way speaker system; or in a four channel format for use with large multi-cabinet PA systems or for multiple monitor mixes. QC series amplifiers are fully networkable using the highly stable CANBUS protocol, so making it possible to set up and control a large network of devices – including amplifiers, powered speakers, and PROEL PC260 speaker processors – in a complex fixed install.

    This new generation of digitally controlled Class D power modules with switch mode power supplies (SMPS) feature innovative and very efficient power supply technology with significant benefits over currently available designs. Rather than relying on a commonly used fixed switching frequency, the QC series amplifier design uses a variable switching frequency which varies according to the input signal level, giving high-fidelity sound quality that can be compared with pure audiophile, top-of-the-range, Class AB designs, but with the added advantages of lower weight, better than 90% efficiency, and negligible heat dissipation. The improvement in operating efficiency is a big contributing factor to an overall reduction in wasted energy that is often associated with large and complex sound system installations.

    Signal processing is based on the CORE DSP platform developed by PROEL’s R&D laboratories, using one of the most advanced SHARC DSP chips available today for high quality audio applications. Thanks to its substantial processing power, the CORE DSP platform can provide the most sophisticated algorithms for enhanced speaker processing, together with comprehensive remote control and system monitoring capabilities.

    QC series amplifiers can be remotely controlled with PROEL’s proprietary PRONET software, which provides an intuitive user interface for control of the DSP features in the amplifier, and for monitoring of the amplifier’s overall status. This allows the user access to many of the loudspeaker system’s operating parameters such as equalisation, multiple delays, and individual driver protection.

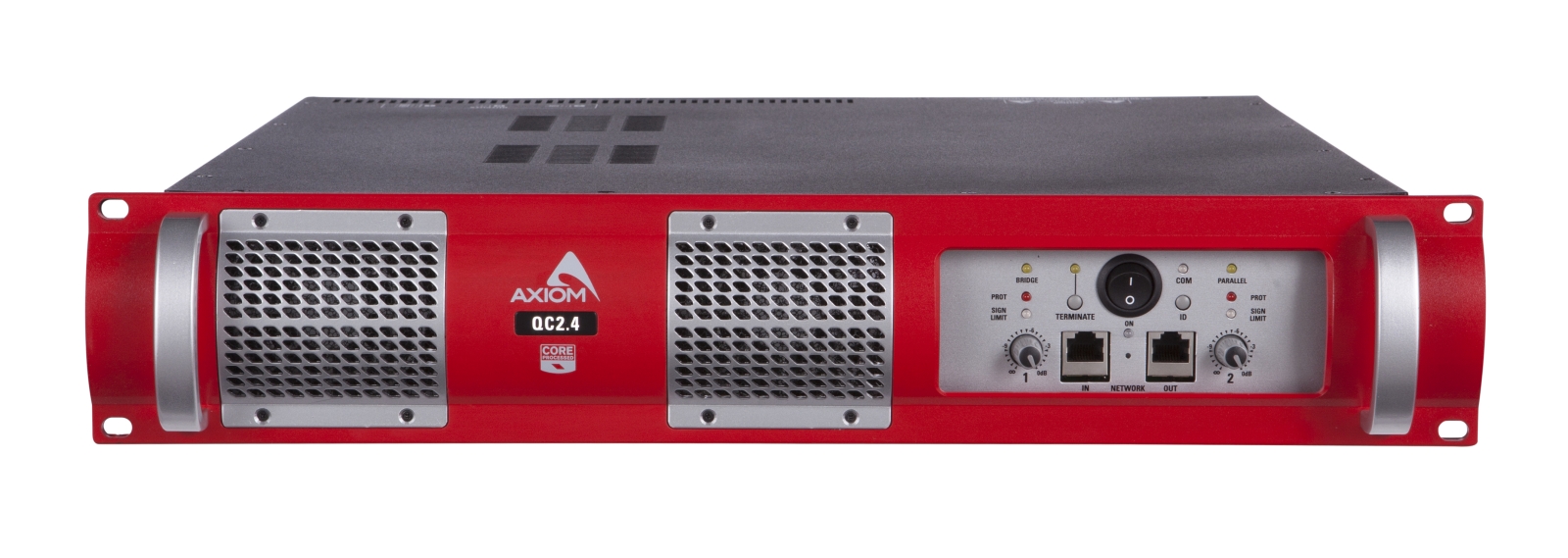

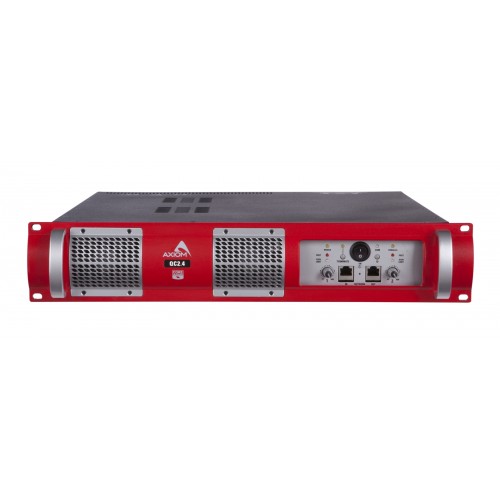

    Based around a lightweight 2U chassis with an aluminium front panel, QC series amplifiers are equally at home on tour or in fixed installs. Airflow is from front to rear, aided by whisper-quiet variable speed fans, and the removable dust filters are accessible from the front for easy maintenance when racked.

    The most powerful in the series, the QC2.4 is a two channel unit delivering 2000 watts per channel at 4 ohms and featuring PFC (Power Factor Correction), a technology able to guarntee always the highest level of power regardless of any eventual fluctuations of the power supply. QC2.4 is ideal for use with subwoofers from the Axiom SW series, either bridged with a single driver model like the SW121HLP, or in two channel mode with dual driver subwoofers such as the SW36XFP, SW218P or SW218XP.

    Channels: 2 (single) or 1 (bridge)
    Power 8 ohm *: 1000 W
    Power 4 ohm *: 2000 W
    Power BRIDGE 8 ohm *: 4000 W
    Frequency response: 20 Hz - 20 kHz
    Input Sensitivity: +3 dBu
    Gain (fixed): 38 dB
    Input Impedance: 30 Kohm (bal) / 15 Kohm (unbal)

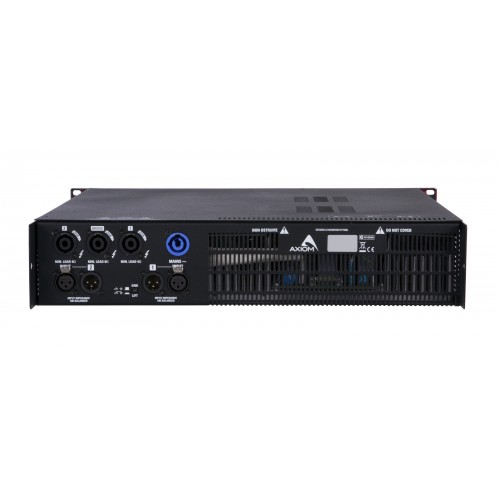

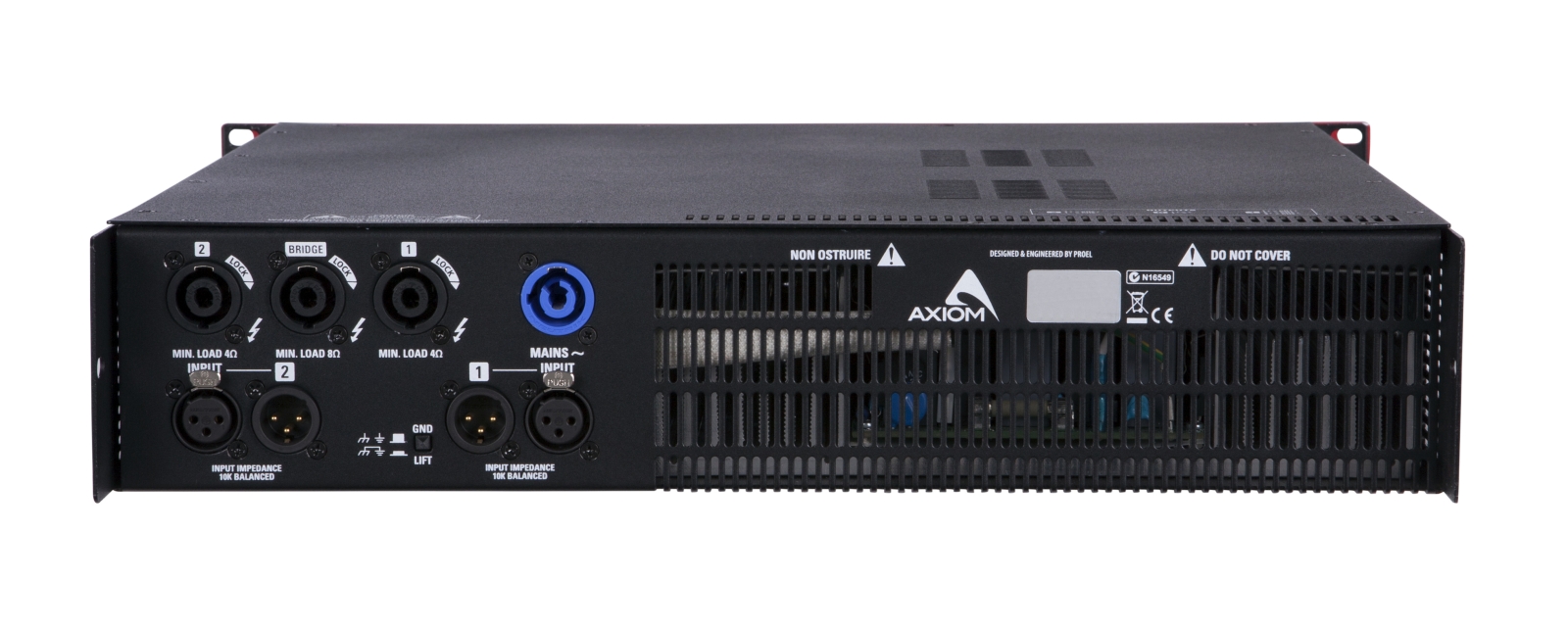

    Input Connectors: INPUT XLR-F, LINK XLR-M
    Output Connectors: NL4 Speakon (4x single, 2x bridge)
    Network Connectors: 2 x RJ45
    Controls: Level, GND lift, Terminate, ID
    LED Indicators: Signal/Limit, Protection, Bridge, Parallel, Com, Terminate, Power
    Signal Processing: CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
    Cooling: 2x Variable speed DC fan
    Protections: Clip Limiter, Short circuit, DC voltage, Over heating
    Damping Factor: > 500 @ 8 ohm
    Slew Rate: 50 V/uS
    S/N Ratio: > 105 dB (unweighted)
    THD+N: < 0.5 %
    Power Supply: 230 V~ or 120 V~ - 50/60 Hz
    Max Consumption: 1800 W
    Rated Consumption**: 600 W
    Weight: 11 Kg (24.3 lb)
    Dimensions (W x H x D): 483 x 89 x 463 mm (19 x 3.5 x 18.2 inch)
    * Standard EIA 1KHz THD < 1%, per channel
    ** Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program

    Software
    AX12LF_Presets for QC24.zipPresets for AXIOM speakers
    Pronet_Setup_r232.zipPRONET Control Software Release 2.3.2
    Presets for QC24.zipPresets for AXIOM speakers
    AX1012P_Presets for QC2.4.zipPresets for AXIOM speakers
    ED150P_Presets for QC2.4.zipPresets for AXIOM speakers
    SW2100P_Presets for QC2.4.zipPresets for AXIOM speakers
    Data Sheet
    QC_data sheet.pdfTechnical Data Sheet
    User Manual
    96MAN0105-QC4.2-QC4.4-QC2.4_ENG_ITA.pdfUser's Manual English
    PRONET_manual rel23.pdfPRONET Control Software User's Manual English

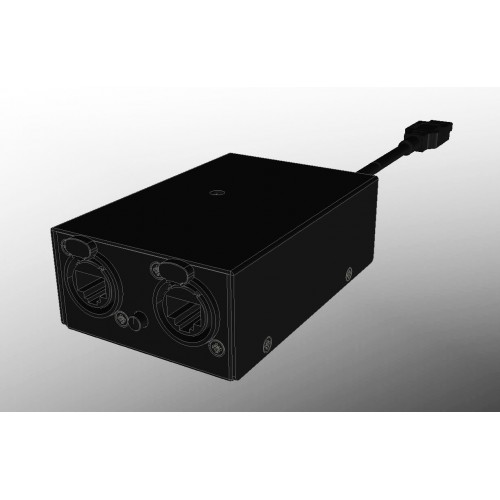

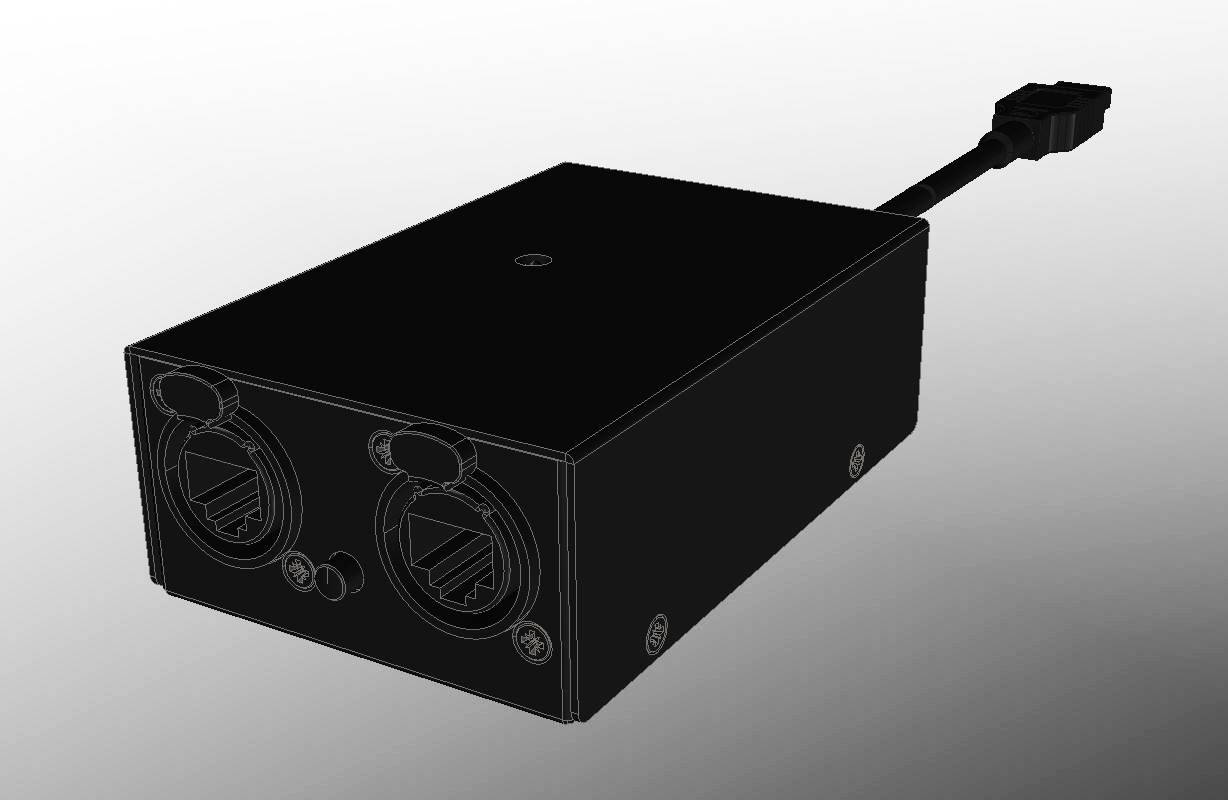

    USB2CAND USB2CAND USB to CAN converter with two network connectors
