SW1800A

Dual 18” (457mm), High Output, Powered, CORE Processed, Manifolded Bandpass Subwoofer


  • Overview
  • Specifications
  • Gallery
  • Downloads
  • Related (3)
  • Accessories (2)
  • The SW1800A is a compact powered manifolded subwoofer designed to provide sub-bass support for the compact AX800A compact line array, and features some of the most advanced technologies for low frequency  reproduction. The manifolded bandpass design uses manifold loading of the front side of the speaker cones to maximize the mutual coupling between the two drivers. This innovative configuration does not use any large resonant cavity to load the speakers, but very compact cavities in order to obtain advantages in terms of definition, both at the lowest end and the upper bass.

    TRANSDUCERS
    The SW1800A subwoofer system is equipped with two high power 18” (460mm) transducers with 3” voice coils wound on aluminum formers for good heat dissipation.
    The speaker cones feature a humidity resistant treatment which makes the SW1800A very suitable for outdoor concert touring applications.

    SONIC PERFORMANCE
    The SW1800A represents an innovative subwoofer design that features solid low frequency definition and a “punchy” feeling in the upper bass range. The combination of accuracy in acoustic transient response together with the use of the latest technology in transducer linearity, signal processing and power amplifiers allows the SW1800A to deliver unprecedented low frequency reproduction quality with  solid deep end, together with very fast and accurate bass response. It is designed to complement the AX800A line array in an approximate 4:1 ratio.

    HARDWARE
    The 15mm birch plywood enclosure features two 35mm pole mount sockets, one on the top and one on the side, allowing satellite speakers such as AX800A compact line array elements or any ED series point source loudspeakers to be securely pole mounted on top of the subwoofer at an optimum height for best audience coverage.
    Heavy duty wheels and flush handles are provided for easy transportation and handling, while matching stacking recesses and feet enable stable ground stacks to be assembled.

    SIGNAL PROCESSING
    The system processing is based on the CORE DSP platform designed by the PROEL R&D Laboratories using one of the most advanced SHARC DSP devices available for audio applications. It features 40bit, 96kHz floating point resolution and top-quality 24-bit AD/DA converters for perfect signal integrity, dynamic range in excess of 110dB, and superior sonic performance. Thanks to its massive processing power, the CORE platform is capable of providing the most sophisticated algorithms for speaker processing, together with comprehensive remote control and networking capabilities.
    The PRONET control software, working on a solid and reliable CANBUS based network protocol, provides an intuitive interface for the remote control of the whole audio system via the rear panel etherCON RJ45 connectors, with the possibility to equalise and delay individual devices, as well as setting driver protection parameters, and monitoring the status of the amplifier.
    Four factory DSP presets are provided for when the SW1800A subwoofer is not connected to a network, and allow for rapid and simple setup: Standard, for general purpose use; Infra Sub, as an additional very low frequency band or for sub-bass effects; Cardioid, for use in directional bass arrays; and User, allowing custom parameters to be designed in PRONET and recalled for specific situations when off-line.

    POWER AMPLIFIER
    The SW1800A is powered by a DA SERIES digital power module, a new generation of CLASS D power amplifier with digitally-controlled SMPS.  The innovative technology used for these amplifiers (including also the use of a variable switching frequency) offers performance at the top of the range, such as superior sound definition at any audio frequency, very high dynamics for low level signals, and very low distortion even at maximum power. The amplifier’s superior sound quality can be compared with top-of-the-range AB-class analog systems, while the DA modules feature higher dynamic range, very compact size, light weight, and efficiency above 90%.
    The amplifier delivers 1000 watts into each driver individually. Input and link connections are via balanced 3-pin XLR connectors, and a ground lift switch is provided for hum-free operation.

    SYSTEM
    System’s Acoustic Principle Manifolded Band Pass
    Frequency Response (±3dB) 36 Hz  –  115 Hz (Processed)
    Maximum Peak SPL @ 1m 139 dB

    TRANSDUCERS
    Type Two 18” (460mm) woofers, 3” (75mm) VC
    Cone High stiffness, water repellent

    ELECTRICAL
    Input Impedance 20 kΩ balanced, 10 kΩ unbalanced
    Input Sensitivity  +4dBu / 1.25 V
    Signal Processing CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit  AD/DA converters
    Direct access Controls 4 Presets (Standard/InfraSub/Cardioid/User), Network Termination, GND Link
    Remote Controls PRONET control software
    Network protocol CANBUS
    Amplifier Type Class D with SMPS, Variable Switching Frequency
    Output Power 1000W + 1000W
    Mains Voltage Range (Vac) 230V ±15%  -  115 ±15%  50/60Hz (internally selectable)
    IN / OUT Connectors Neutrik XLR-M / XLR-F
    IN / OUT Network Connectors ETHERCON®(NE8FAV)
    Mains Connectors PowerCon® TRUE1 - NAC3PX (In/Out)
    Cooling Variable speed DC fan

    ENCLOSURE & CONSTRUCTION
    Physical Dimensions
    Width 570 mm (22.40”)
    Height 960 mm (37.80”)
    Depth 880 mm (34.65”)
    Depth Including Wheels 1008 mm (39.70”)
    Enclosure Material 15mm, reinforced phenolic birch
    Paint High resistance, water based paint
    Transport 4 heavy duty 100 mm (4") castors, 6 handles
    Net Weight 70 Kg (154.30 lbs.)
    3D Model
    SW1800A_3D.dwgTechnical Drawing 3D
    Other
    BR_AX800A_SW1800A_2016_low.pdfBrochure
    Software
    Pronet_Setup_r232.zipPRONET Control Software Release 2.3.2
    AXIOM_SW1800_v1_0.zipEASE Focus 3 models
    Presets SW1800A.zipPresets
    EASE_Focus_v3_1_180 AXIOM_GLL.zipEASE Focus 3 Software & Models
    Data Sheet
    SW1800A datasheet_2017.pdfTechnical Data Sheet
    Technical Drawing
    SW1800A_2D.dwgTechnical Drawing
    User Manual
    SW1800A_UM_ENG.pdfUser's Manual English
    PRONET_manual rel23.pdfPRONET Control Software User's Manual English
    USB2CAND USB2CAND USB to CAN converter with two network connectors

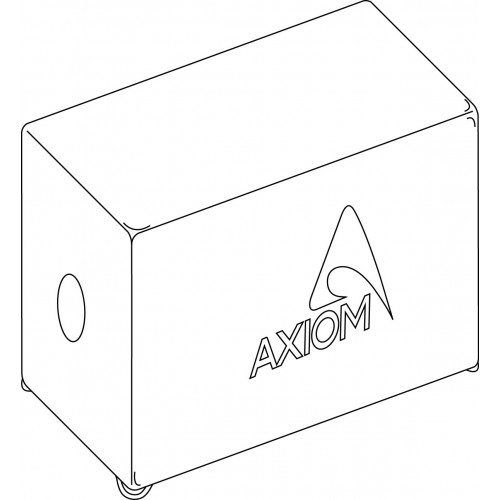

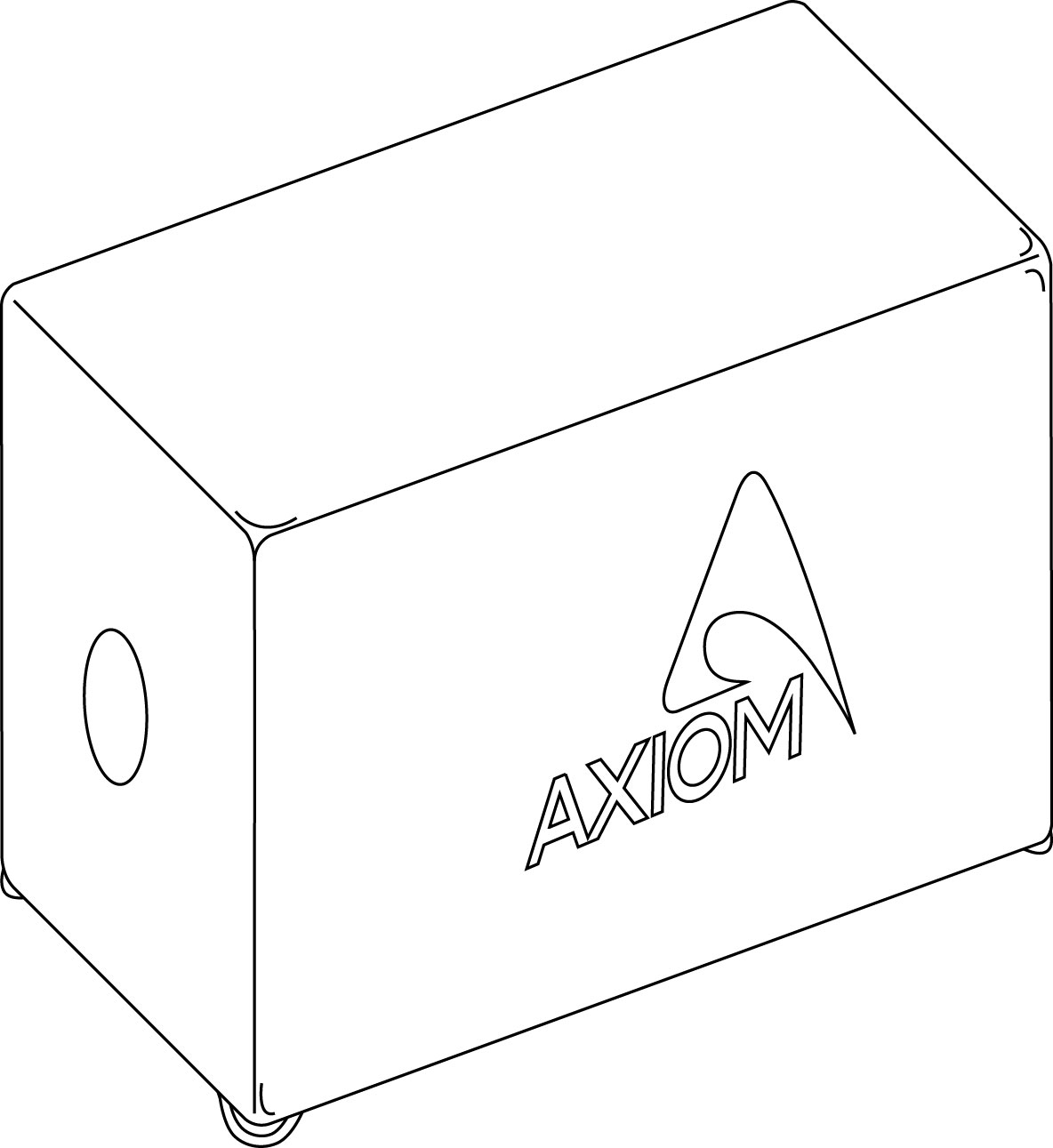

    COVERSW1800 COVERSW1800 Cover for SW1800
