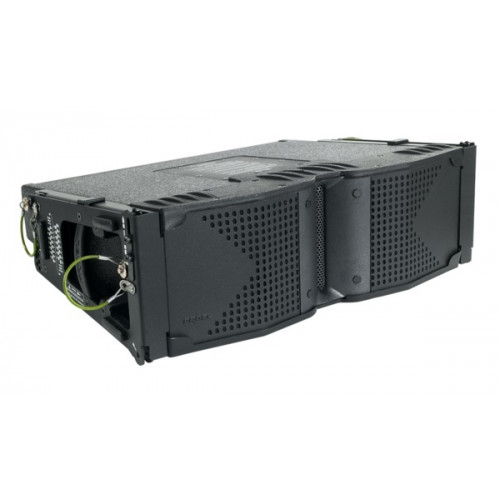

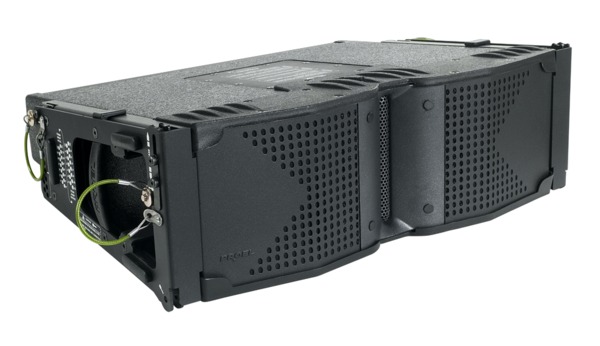

Model AX2265P is a compact module for under-dimensioned Vertical Arrays that will surprise you with their quality and high pressures. AX2265P is a 2-way bi-amplifiable system designed for live concerts and permanent installations. It features two mid-low 6.5' loudspeakers with neodymium magnet, aluminium coil and single demodulating ring. The compression driver features a neodymium magnet, a 1' throat and is equipped with a special titanium membrane which enables it to work well even at 1.3 kHz despite its small size. The average nominal angular dispersion is 110° (-6 dB) on the horizontal level, whereas the vertical dispersion depends on the composition of the array.
[System type: 2-way full-range vertical array element bi-amp]
[Frequency response: 125 Hz - 18 kHz]
[Maximum (peak) Output:129 ]
[Low Frequency Device: 2 x 6.5'' neodymium woofer - 2'' voice coil]
[LF Nominal impedance: 8 ohm]
[LF Sensitivity: 99 dB SPL (2.83V @ 1m)]
[LF Power rating (AES):500 ]
[LF Power rating (program):1000 ]
[High Frequency Device: 1'' compression driver - horn loaded]
[HF Nominal impedance: 16 ohm]
[HF Sensitivity: 110 dB SPL (4V @ 1m)]
[HF Power rating (AES):80 ]
[HF Power rating (program):160 ]

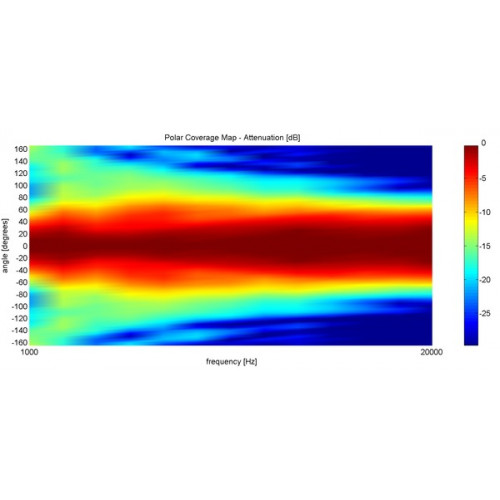

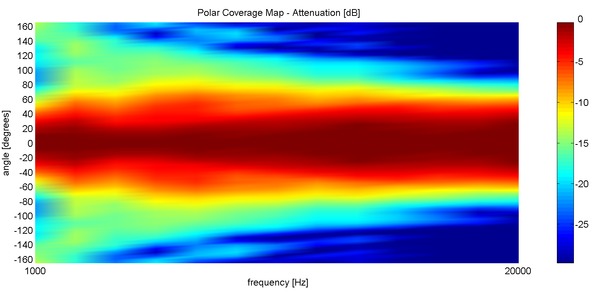

[Coverage Angle H. (-6 dB): 110° average]
[Coverage Angle V. (-6 dB): depending on array size]
[Trapezoidal taper: 12°]
[Directivity Index (DI): depending on array size]
[Signal Processing: Proel DSO26 - DSO480]
[Flying System: built in suspension system]
[Connectors: 2 x Neutrik Speakon NL4MP linked]
[Construction: 15mm birch plywood, internally reinforced]
[Finishing: paint finish]
[Cabinet Colour: black]
[Weight:18.5 lb ]

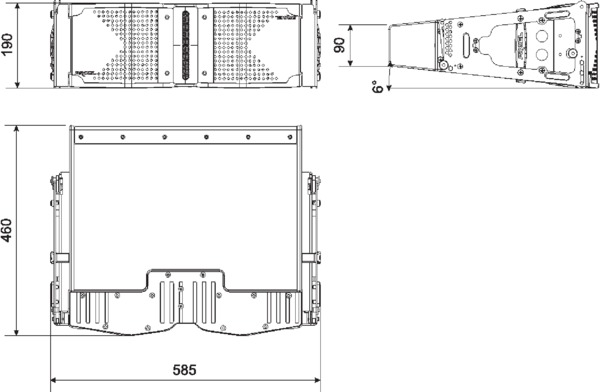

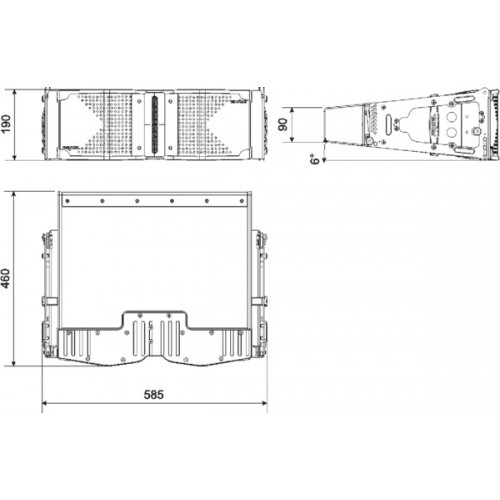

[Dimensions (W x H x D): 58.5 x 19 x 46 cm]
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
