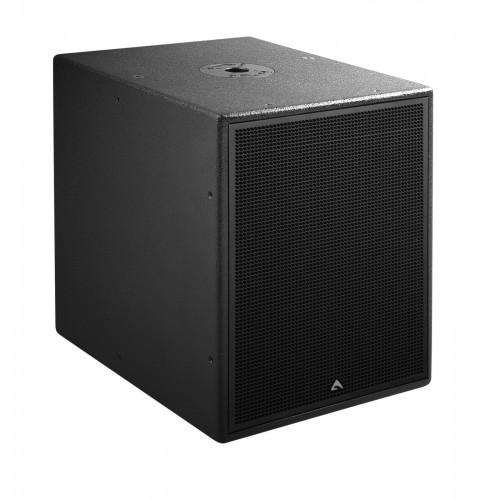

SW112P

Compact 12” Reflex-loaded Subwoofer


  • Overview
  • Specifications
  • Downloads
  • Related (2)
  • The SW112P is a front-loaded subwoofer designed for good near-field coverage of medium sized venues such as high profile bars and clubs that feature recorded music, DJs, and live bands, and is specifically recommended for use with ED23P, ED25P, and ED65P point source loudspeakers.

    Its interleaved sandwich voice coil provides high efficiency (125 dB peak SPL), and the double silicon spider maintains good linearity.

    Due to its compact size and minimal front area it is small enough to be unobtrusively built into a stage or under seating, while the integrated pole mount socket allows it to provide sub-bass support for ED series satellite speakers, and also to be effective in portable audio-visual applications.

    SYSTEM
    System’s Acoustic Principle Direct radiation bass-reflex
    Frequency Response (±3dB) 39 Hz - 125Hz (Processed)
    Nominal Impedance 8 Ω
    Maximum Peak SPL @ 1m 125 dB
    TRANSDUCERS
    Type 12” woofer, 3” VC
    Cone Water repellent cone and epoxy coated plates
    Voice Coil Type Interleaved Sandwich aluminum Voice coil (ISV)
    Suspension Linear suspension behavior
    INPUT CONNECTION
    Connector Type Neutrik® Speakon® NL4 x 2
    POWER HANDLING
    Continuous AES Pink Noise Power  600W
    Program Power  1200W
    Peak Power  2000W
    Power Compression
    @ -10dB Power 0.9dB
    @ -3dB Power 2.8dB
    @ 0dB Power 3.8dB
    ENCLOSURE & CONSTRUCTION
    Width 37 cm
    Height 47 cm
    Depth 46 cm
    Enclosure Material 15/18mm, reinforced phenolic birch
    Paint High resistance, water based paint
    Suspension system 5 x M10 - top, bottom, rear
    Net Weight 24.5 kg (53.9 lbs)
    Data Sheet
    SW112P_data sheet.pdfTechnical Data Sheet
