EDGE12CXP

12'' coaxial monitor


  • Overview
  • Specifications
  • Gallery

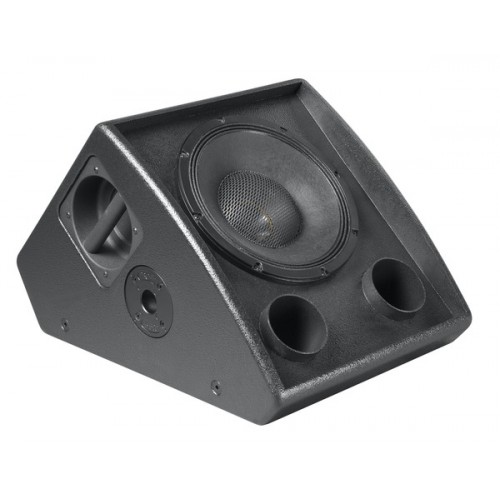

  • The high performance wedge system EDGE12CXP is a high-efficiency low profile 2-way system. Bass frequencies are reproduced by a high-excursion 12' woofer with a 3' coil equipped with a copper ring on the pole piece to achieve the lowest distortion in the vocal range. A spherical wave guide, housed coaxially in the magnet assembly, loads a 1.5'’ neodymium magnet, titanium-diaphragm compression driver that delivers a 65° symmetric coverage for 1.4 kHz upwards. The EDGE12CXP is equipped with a superior-performance high-quality passive filter. The EDGE12CXP can be internally switched to bi-amp operation and driven by the DSO480 digital processor using the dedicated preset.

    [System type: Coaxial 2-way vented enclosure]
    [Nominal Impedance: 8 ohm]
    [Input power rating (AES):450 ]
    [Input power rating (program):900 ]
    [Frequency response: 75 Hz - 20 kHz (-6dB,+6dB)]
    [Sensitivity: 98 dB SPL ( 2.83V @ 1m )]
    [Maximum (peak) Output:127 ]
    [Low Frequency Device: 12'' woofer - 3'' voice coil]
    [LF Nominal impedance: 8 ohm]
    [LF Sensitivity: 98 dB SPL ( 2.83V @ 1m )]
    [LF Power rating (AES):450 ]
    [LF Power rating (program):900 ]
    [High Frequency Device: 1.5'' compression driver - coaxial]
    [HF Nominal impedance: 8 ohm]
    [HF Sensitivity: 109 dB SPL ( 2.83V @ 1m )]
    [HF Power rating (AES):75 ]
    [HF Power rating (program):150 ]

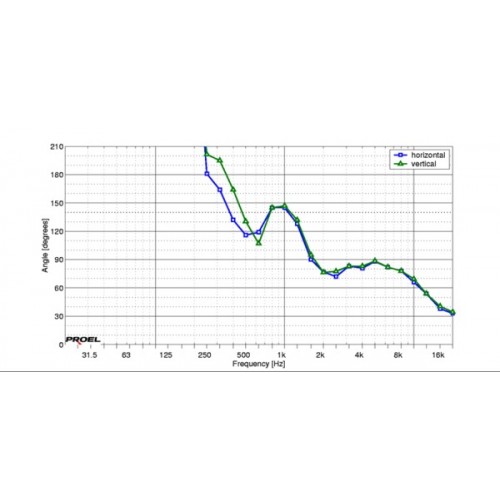

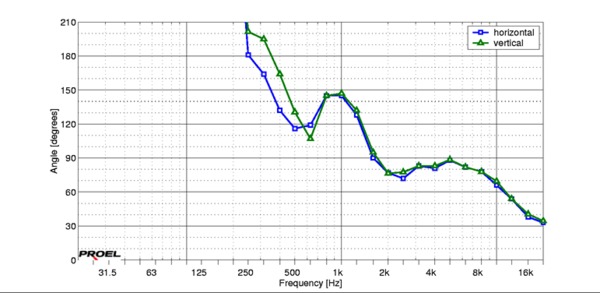

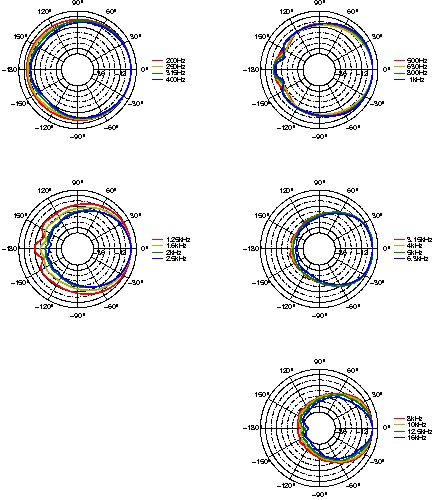

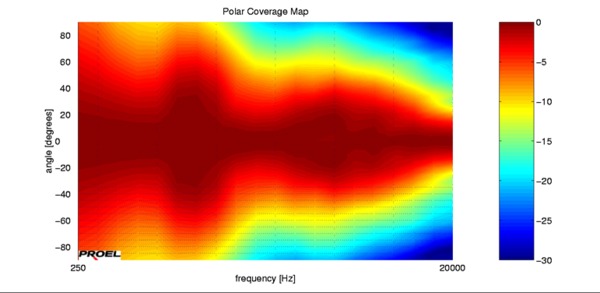

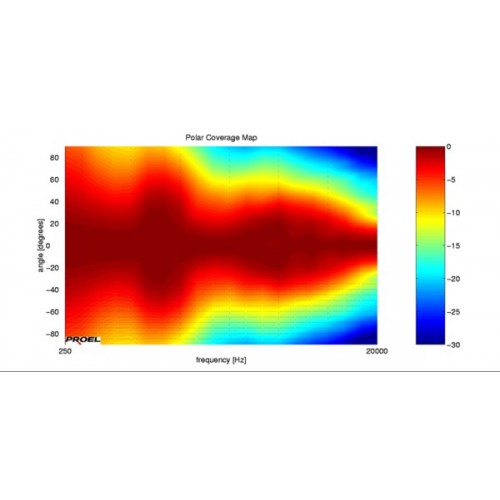

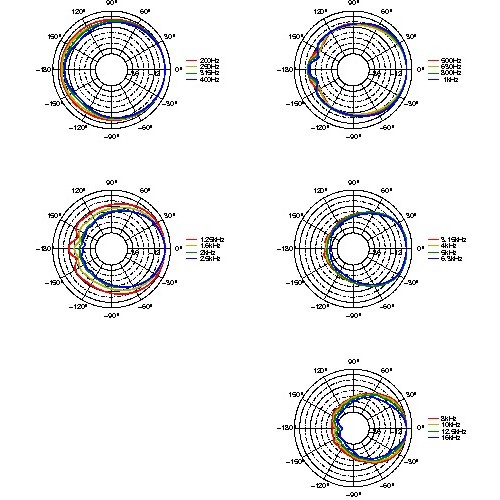

    [Coverage Angle H. (-6 dB): 65° average, 630 Hz to 20 kHz]

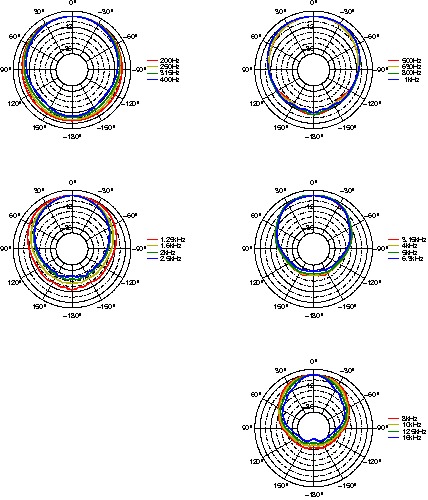

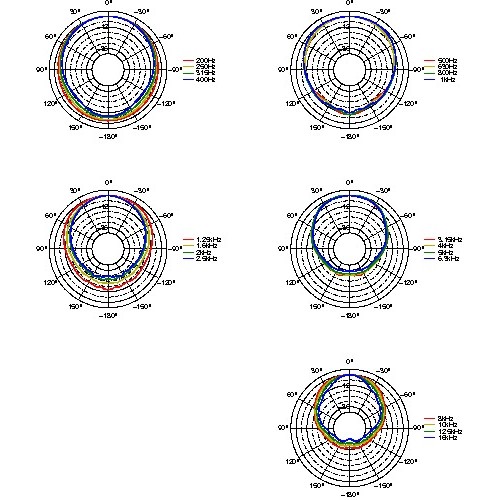

    [Coverage Angle V. (-6 dB): 65° average, 630 Hz to 20 kHz]
    [Monitor Taper: 42°]

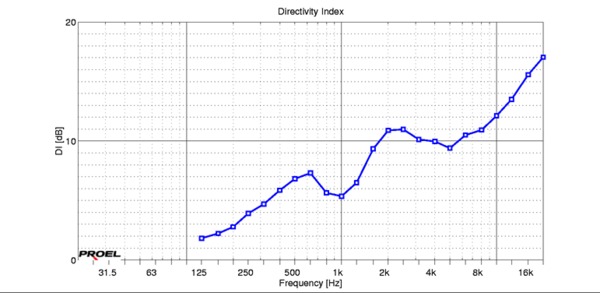

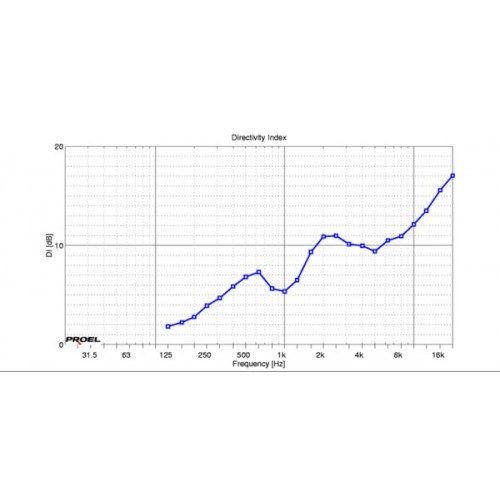

    [Directivity Index (DI): 12.4 average, 630 Hz to 20 kHz]
    [Signal Processing: Proel DSO26]
    [Flying System: 4 x M10 lateral]
    [Connectors: 2 x Neutrik Speakon NL4MP paralleled, FULL-RANGE: 1+ LF+/HF+, 1- LF-/HF-, BIAMP: 1+ LF+, 1- LF-, 2+ HF+, 2- HF-. ]
    [Construction: 18 mm birch plywood, internally reinforced]
    [Finishing: Paint finish]
    [Cabinet Colour: Black]
    [Mounting Pole: 1 x lateral]
    [Weight:25 lb ]
    [Dimensions (W x H x D): 43.5 x 39.4 x 61.9 cm]
