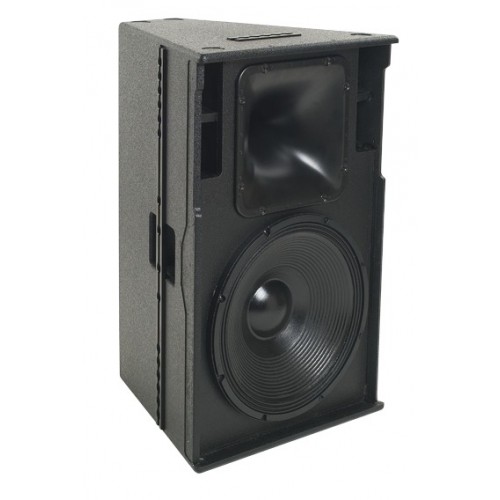

EDGE C15P are 2-way bi-amplifiable speaker systems. They feature a 15' woofer mounting a cone reinforced with carbon fibre, a 4' moving coil, a single demodulating ring, and a water repellent protection treatment. For the high frequencies they mount a large format 1.5' driver with a ferrofluid-cooled coil on a rotatable horn. This high frequency driver is combined with a progressive constant directivity thick aluminium waveguide to obtain excellent directivity control, balanced frequency response and low distortion, which means high-end reproduction of outstanding quality. The system frequency response extends effectively. The systems can be equipped with a waveguide featuring a nominal 60°x40° (H x V) coverage or, on request, with a waveguide with a nominal 90°x60° (H x V) coverage . The angular coverage can be changed at any time just by replacing the waveguide.
Connectors: 2 x Neutrik Speakon NL4MP linked

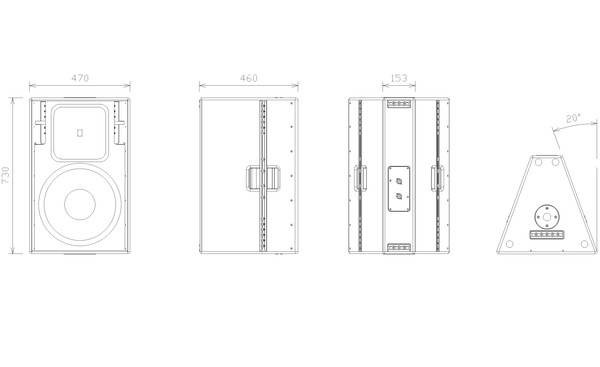

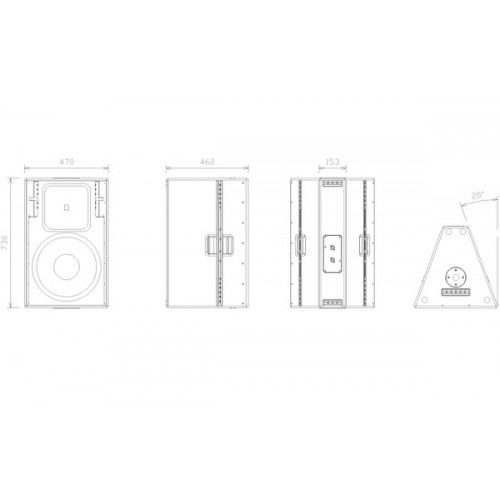

Dimensions (W x H x D): 47 x 73 x 46 cm]

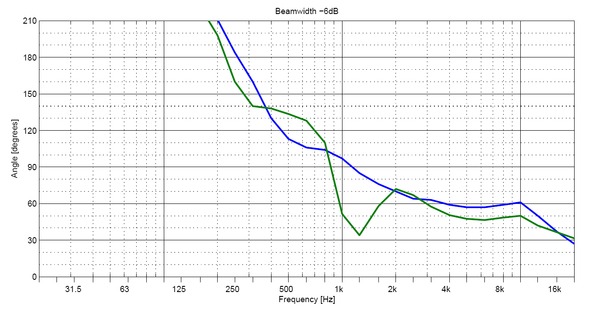

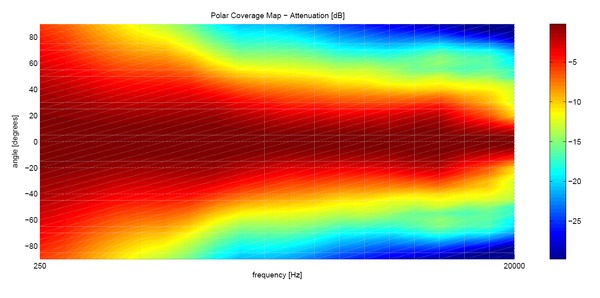

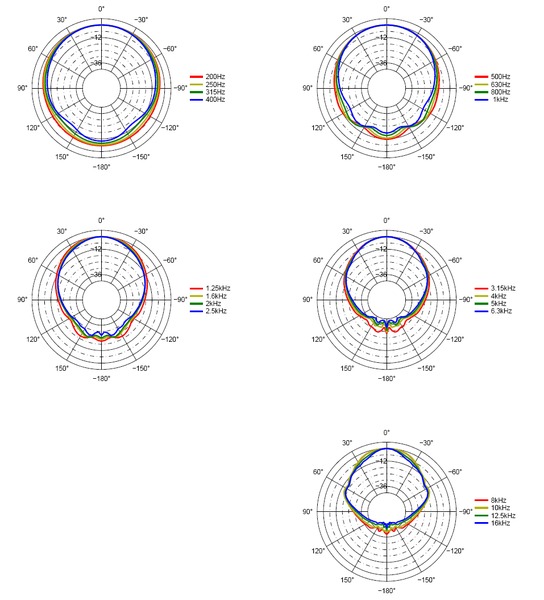

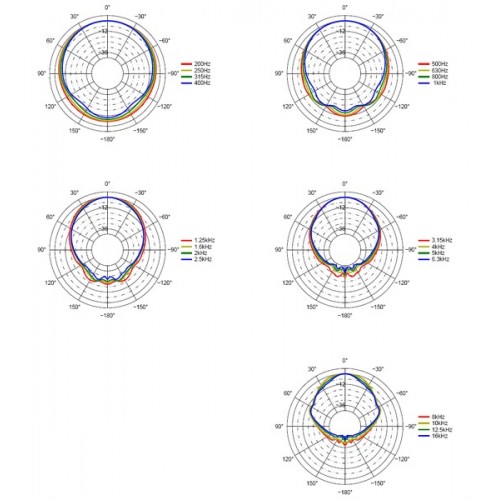

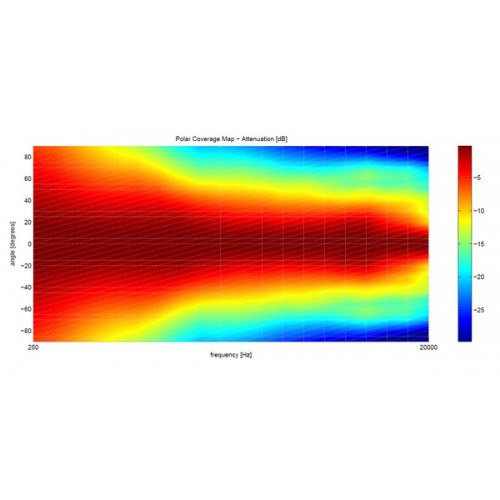

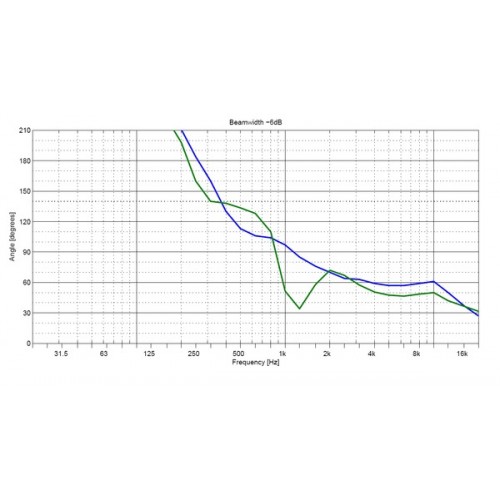

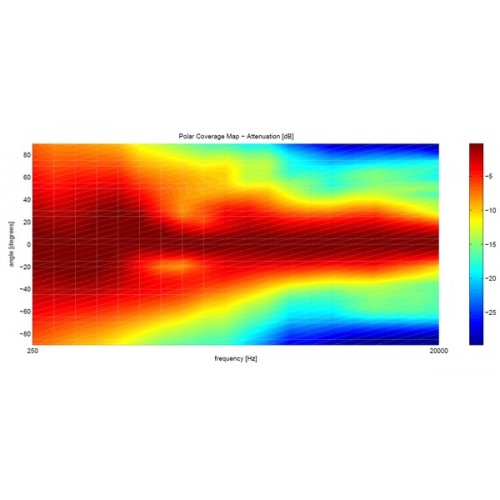

Coverage Angle H. (-6 dB): 60° or 90° average, from 1 kHz to 20 kHz

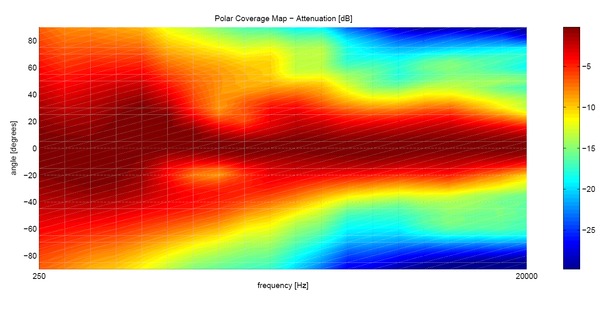

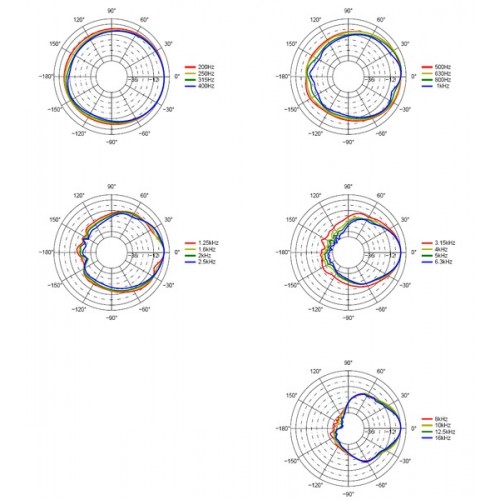

Coverage Angle V. (-6 dB): 40° or 60° average, from 1 kHz to 20 kHz
Mounting Pole: 1 x bottom

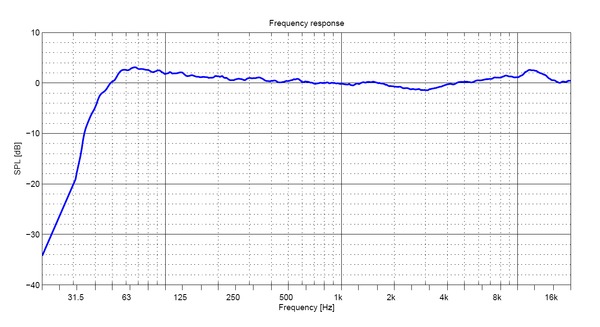

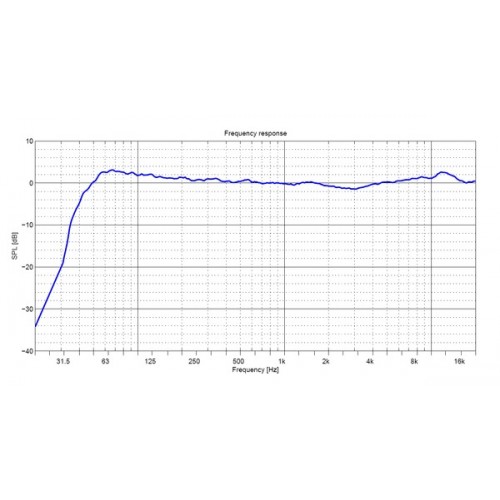

Frequency response: 50 Hz - 18 kHz (-3 dB, +6 dB)
Maximum (peak) Output: 132 W
Finishing: paint finish
Nominal Impedance: 8 Ohm + 8 Ohm
LF Power rating (AES): 800 W
Low Frequency Device: 15' neodymium woofer - 4' voice coil
HF Power rating (AES): 100 W
LF Nominal impedance: 8 ohm
Trapezoidal taper: 20°
HF Sensitivity: 110 dB SPL (2.83 V @ 1 m)
LF Sensitivity: 99 dB SPL (2.83 V @ 1 m)
HF Power rating (program): 200 W
Weight: 36.7 lb

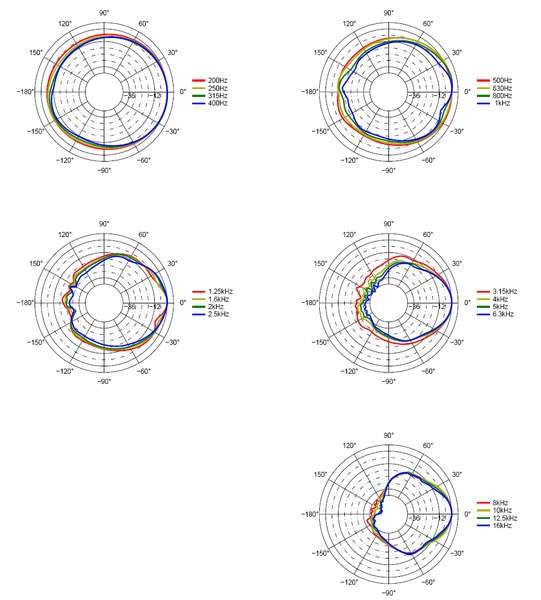

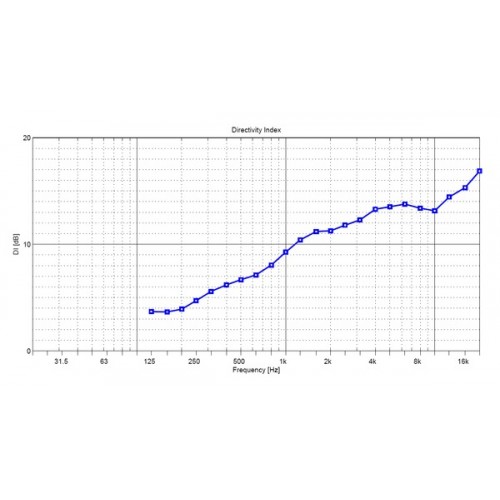

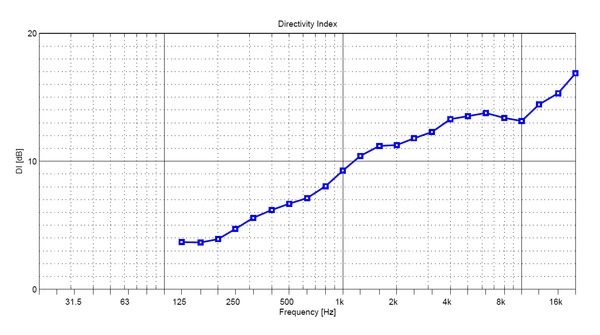

Directivity Index (DI): 4.7 5.9 average, 630 Hz to 18 kHz
System type: 2-way compact full range bi-amp
High Frequency Device: 1.5' neodymium driver - 3' voice coil
HF Nominal impedance: 8 ohm
Flying System: Fly Track
LF Power rating (program): 1600 W
Cabinet Colour: Black
Construction: trapezoidal, 15 mm birch plywood, internally reinforced
