ED80P

8”, Passive, 2-way, Full-range, Compact Loudspeaker

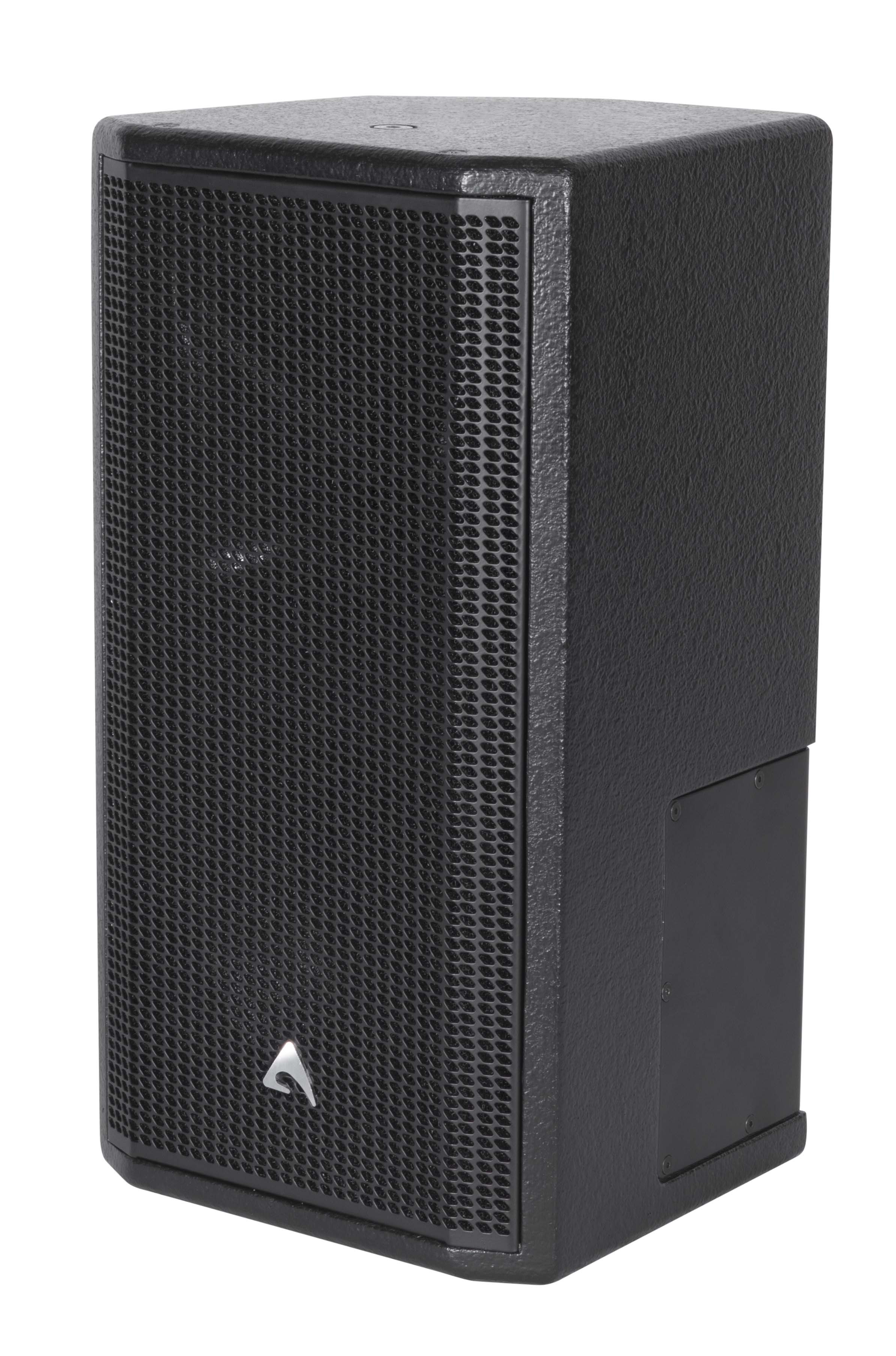

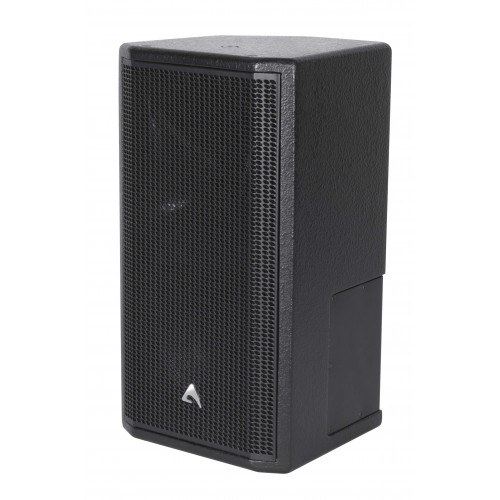

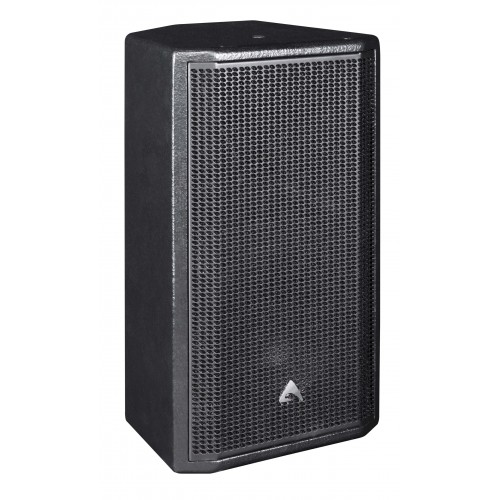

The ED80P is a compact, lightweight, two-way passive point source loudspeaker that provides great performance from a very discreet and easily manageable enclosure. It is designed for sound reinforcement applications requiring high quality sound and accurate reproduction in a space-saving format.

The 8” low frequency driver is matched to a 1” high frequency compression driver, both components using aluminium voice coils for low weight and good transient response, with an audiophile-grade passive crossover.

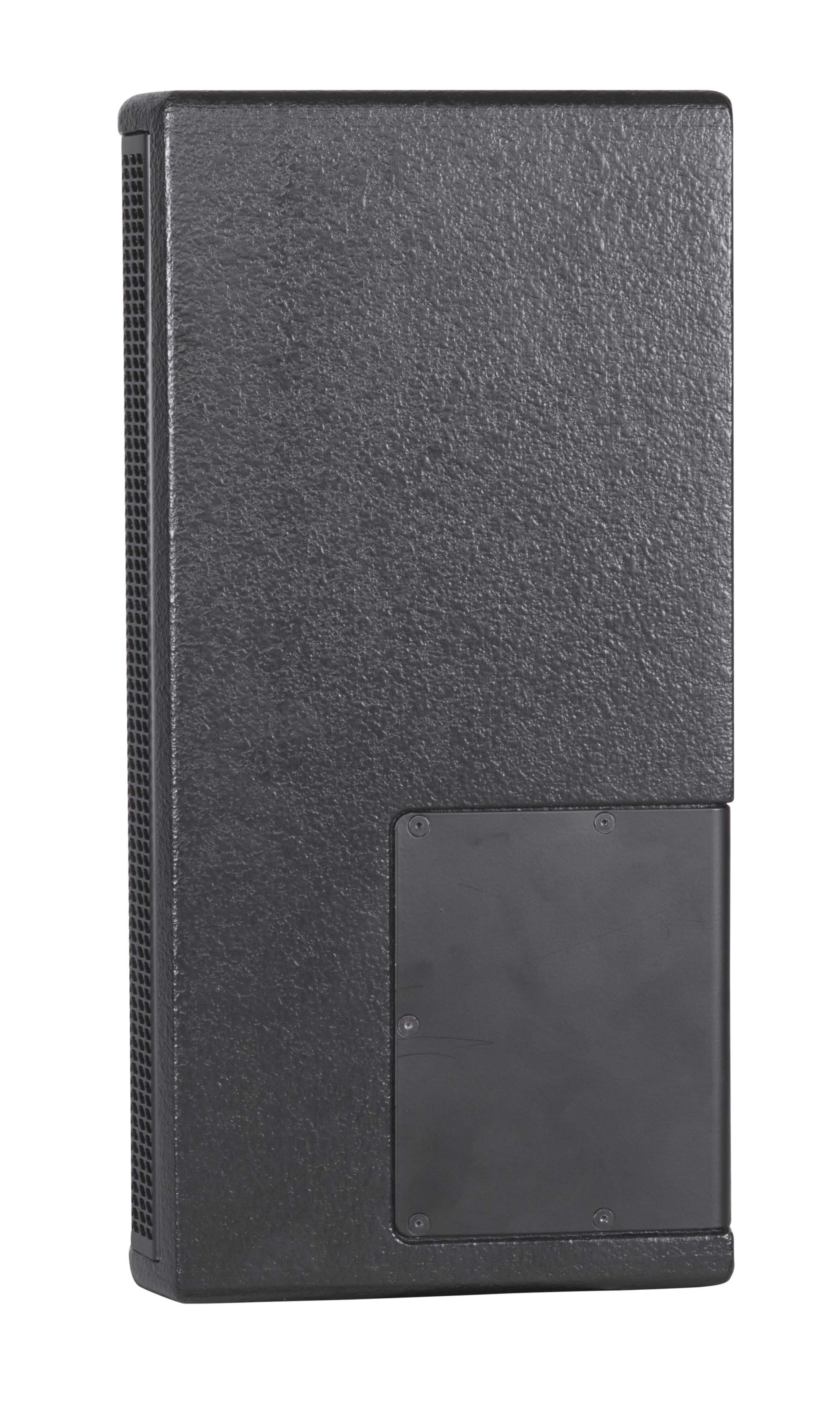

The ED80P’s non-symmetrical vented enclosure allows it to adapt to multiple portable and fixed applications, such as front-of-house duties on a speaker stand, or pole mounted on an associated subwoofer or, by using the 35° wedge angle, as a very compact and low profile stage monitor. In addition the 7° angled sides enable it to be deployed as a discreet stage lip front fill loudspeaker.

A key feature of the ED80P is its asymmetrical high frequency coverage pattern, varying from 120° horizontal in the lower part of the horn for more effective near field coverage, and narrowing to 60° horizontal at the top of the horn for more focused coverage in the far field. The result is more accurate coverage of a typical auditorium than is possible with a fixed horizontal coverage device. The HF horn is also rotatable through 90° by simply removing four screws and re-aligning
the horn, so that in a stage monitor mode the asymmetrical pattern optimises coverage for performers both near to, and further away from, the monitor. This rotatable horn feature also makes it possible to maintain the ideal coverage pattern when the cabinet is installed in a horizontal (landscape) format.

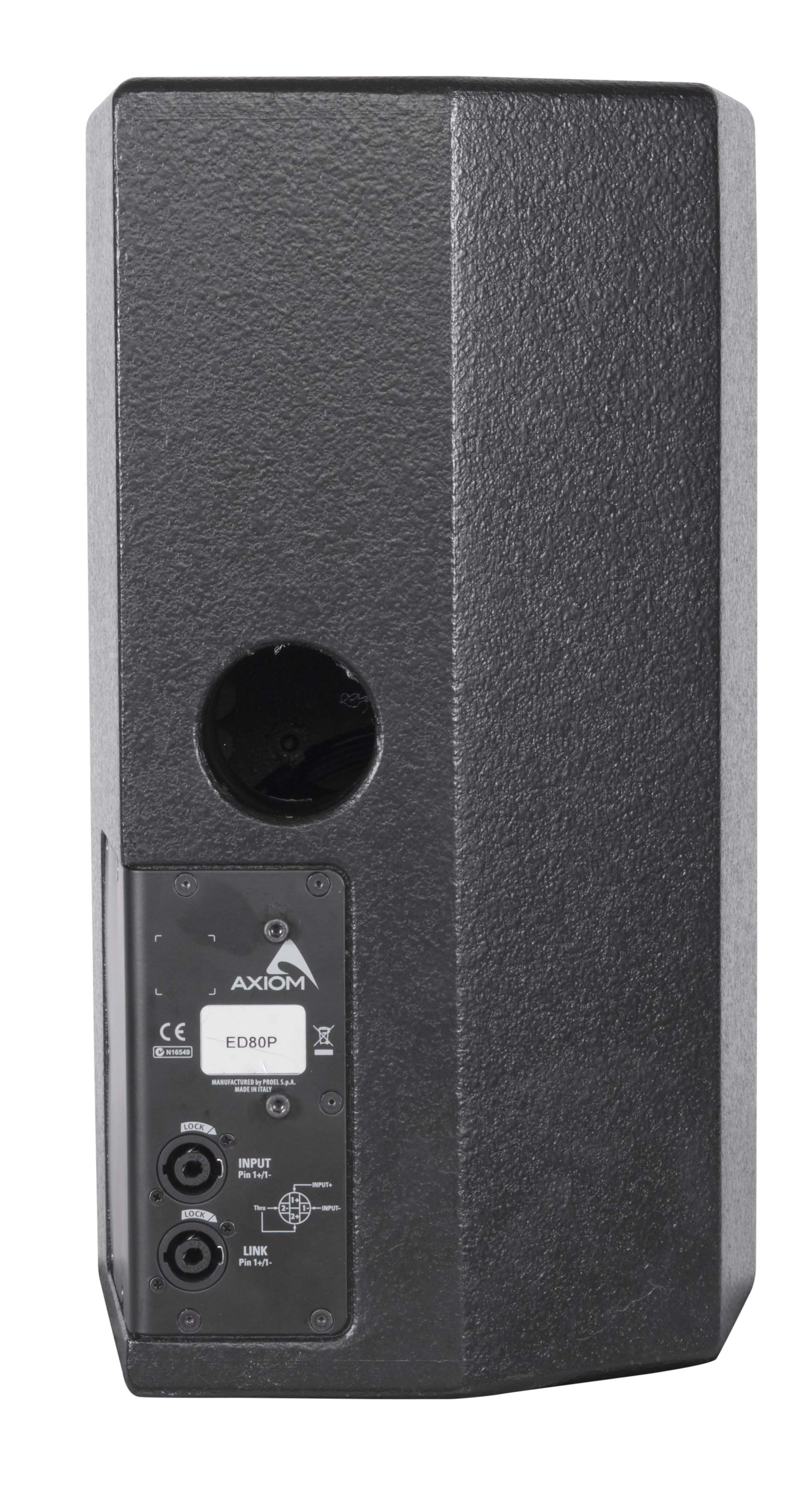

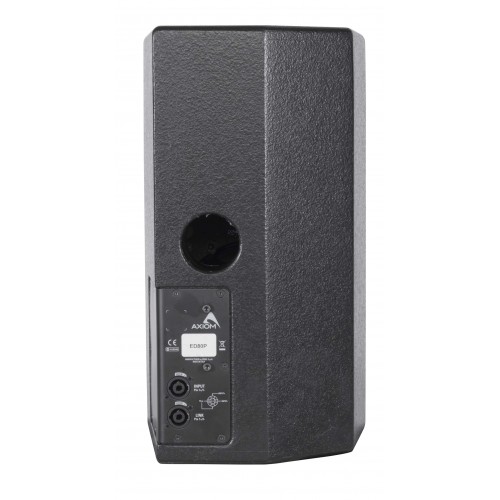

The 15mm phenolic birch plywood cabinet is provided with a 35mm pole mount, a recessed handle for easy lifting and handing, and M10 and M6 flying points to allow suspension in fixed installations using optional mounting brackets. Two Neutrik® speakON™ NL4 connectors provide input and link connections.

To extend the system’s low frequency response the ED80P can be complemented by subwoofers from the Axiom SW series such as the SW210P or SW18P.

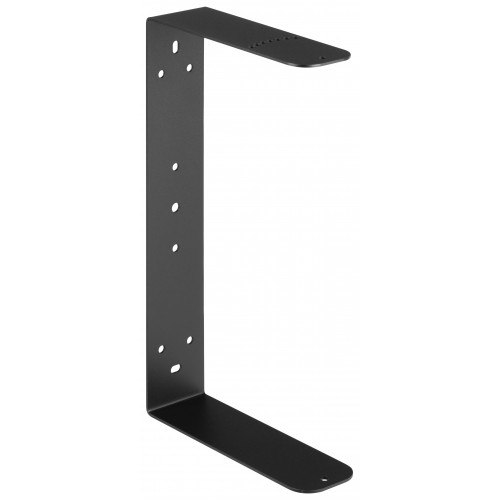

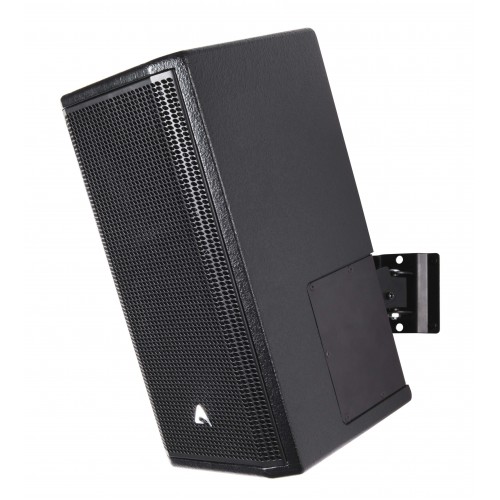

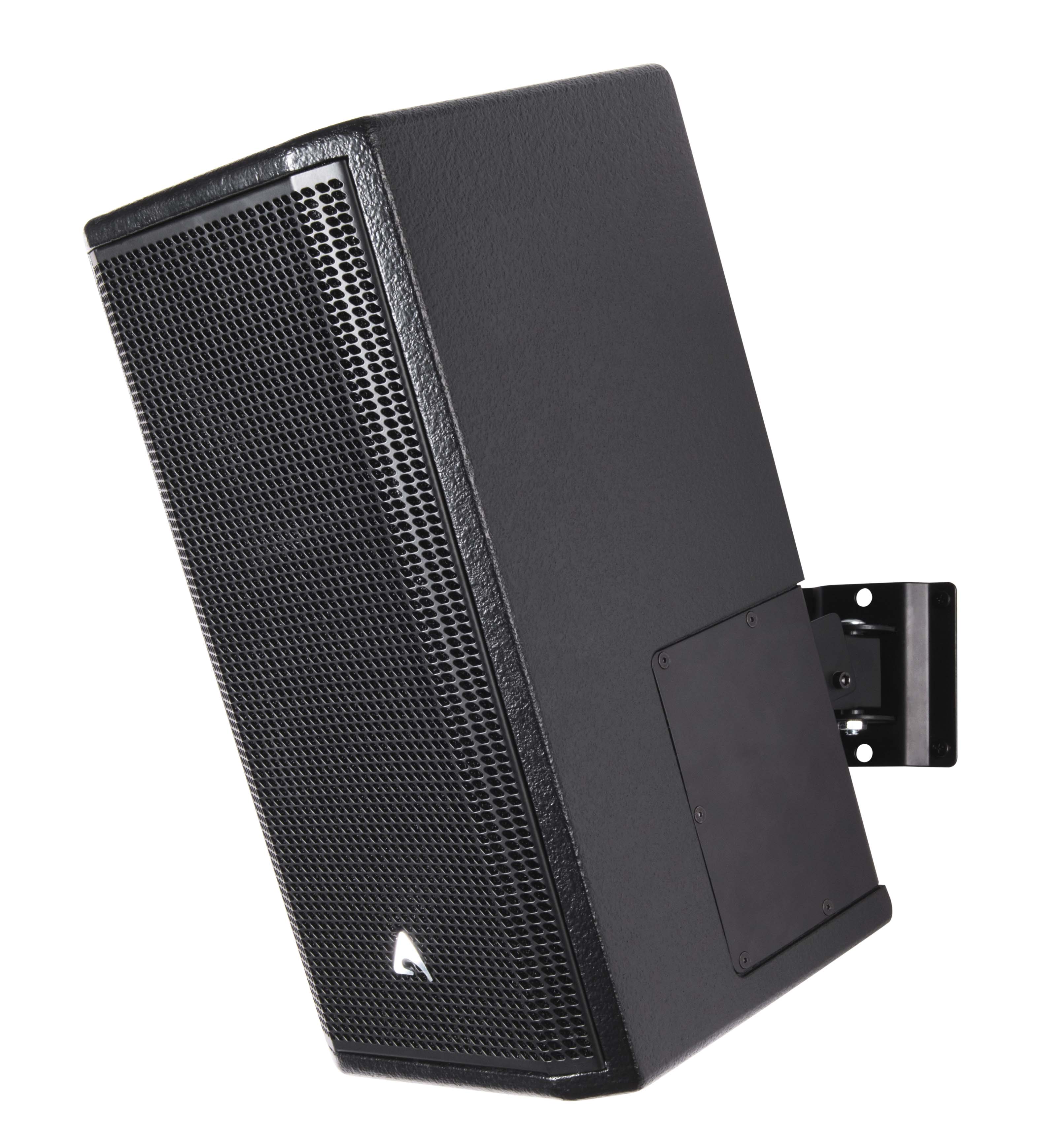

The ED80P can be wall mounted in permanent installations either vertically or horizontally using the KPTED80B wall bracket. The wall bracket allows seven steps of incremental rotational adjustment to enable the louspeaker to be accurately aimed. When mounted horizontally the loudspeaker’s asymmetrical HF waveguide can be rotated through 90° within the enclosure to maintain the optimum coverage pattern.

KEY FEATURES
• Passive two-way point source
• Compact lightweight enclosure
• 8” woofer, 1” HF compression driver
• Asymmetric HF coverage pattern
• Rotatable HF horn

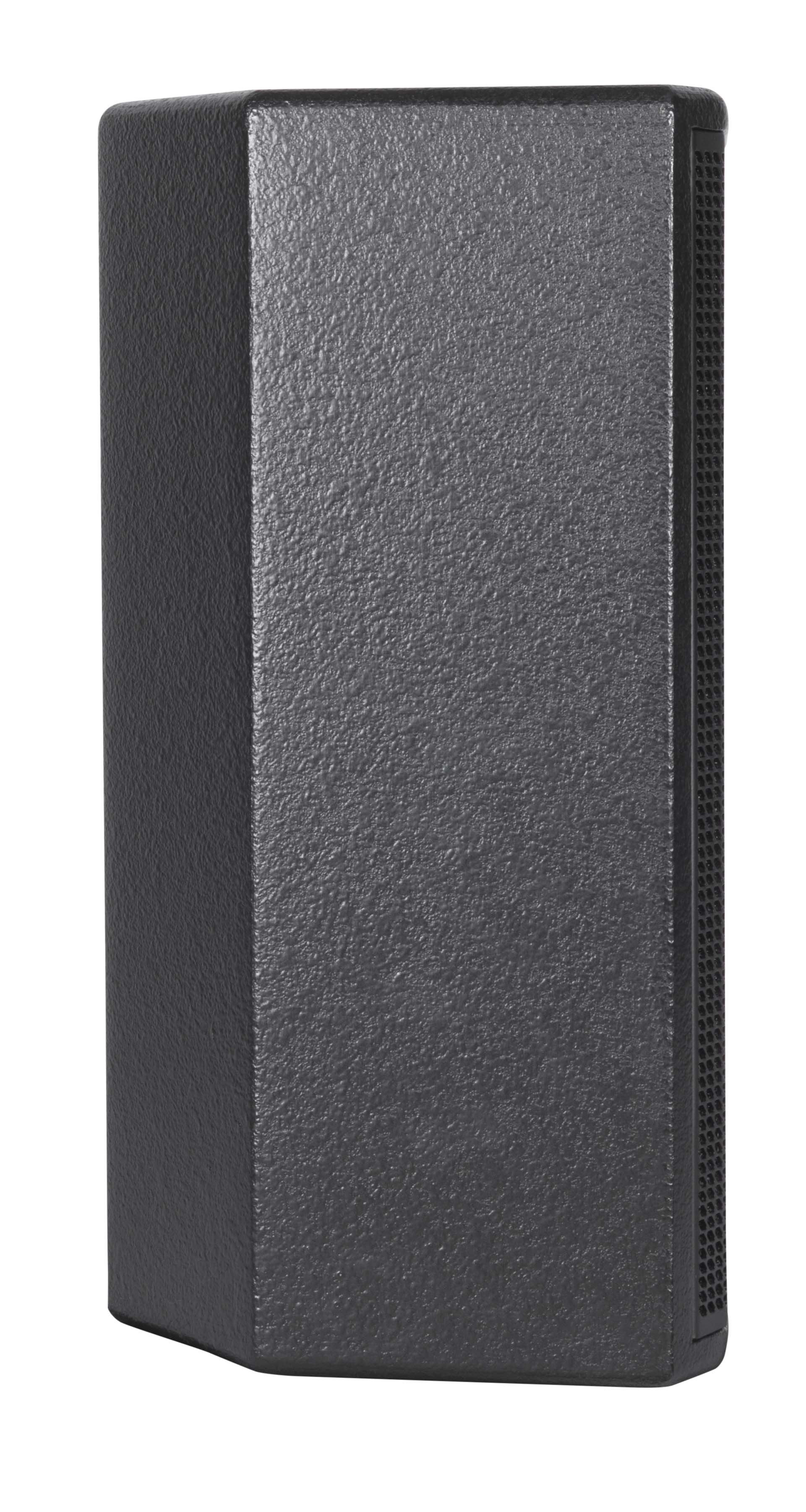

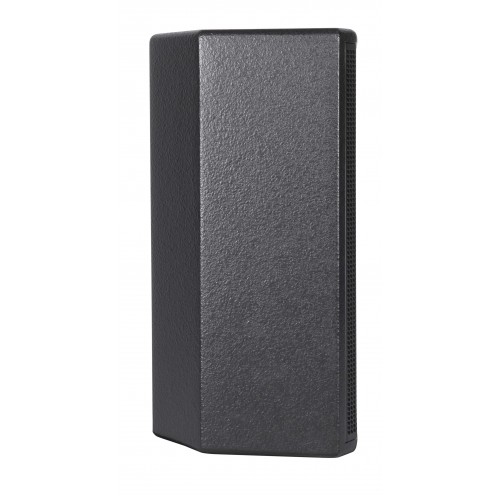

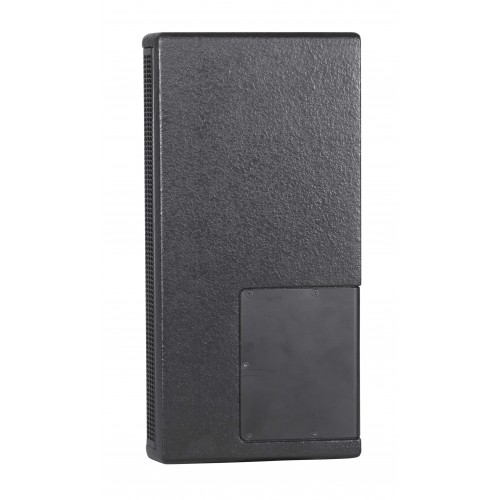

• Non-symmetrical, multi-angled enclosure
• M10 and M6 flying points
• Pole mount socket
• Black or white finish

APPLICATIONS
• Distributed systems
• Theatre underbalcony
• Corporate and A/V
• TV and broadcast
• Stage monitoring
• Near fill and front fill
• Live music venues
• Bars and restaurants
• House of Worship
• Retail outlets

SYSTEM
System’s Acoustic Principle 2-way vented enclosure
Frequency Response (-6dB) 75 Hz - 18 kHz
Nominal Impedance 8 Ohm
Horizontal Coverage Angle 60° to 120° asymmetric, (-6dB)
Vertical Coverage Angle 55° averaged, 1kHz to 20kHz (-6dB)
Sensitivity 2.83V 95 dB SPL @ 1m
Maximum (peak) Output 124 dB SPL @ 1m
TRANSDUCERS
HF 1" exit lightweight, ferrite magnet compression driver - 1" Aluminum VC
LF 8" ferrite magnet low frequency woofer - 2" aluminum VC
INPUT CONNECTIONS
Connector Type  Neutrik® Speakon® NL4MP x 2 (1+/1- signal IN & LINK ; 2+/2- thru)
POWER HANDLING
Power rating (AES) 280 W
Power rating (program) 560 W
ENCLOSURE & CONSTRUCTION
Width 250 mm
Height 450 mm
Depth 230 mm
Taper Stage Monitor: 35° - Frontfill: 7.5°
Enclosure Material 15mm, reinforced phenolic birch
Paint High resistance, black or white water based paint
Flying system 2 x M10 flying points or dedicated metal bracket
Net Weight 8 kg (17.6 lb)
3D Model
ED80P-3D.dwgTechnical Drawing 3D
ED80P-3D.3dsTechnical Drawing 3D
Software
AXIOM_ED80_v1_0.zipEASE models
Data Sheet
ED80P datasheet 2018.pdfData Sheet
Technical Drawing
ED80P-2D.dwgTechnical Drawing
KPTED80B_C-Shape Bracket.dwgTechnical Drawing 2D
User Manual
FI-0149-00 KPTED80B.pdfKPTED80B User's Manual
ED80P_UM_ENG.pdfUser's Manual
KPTLTP KPTLTP Bracket for LTX

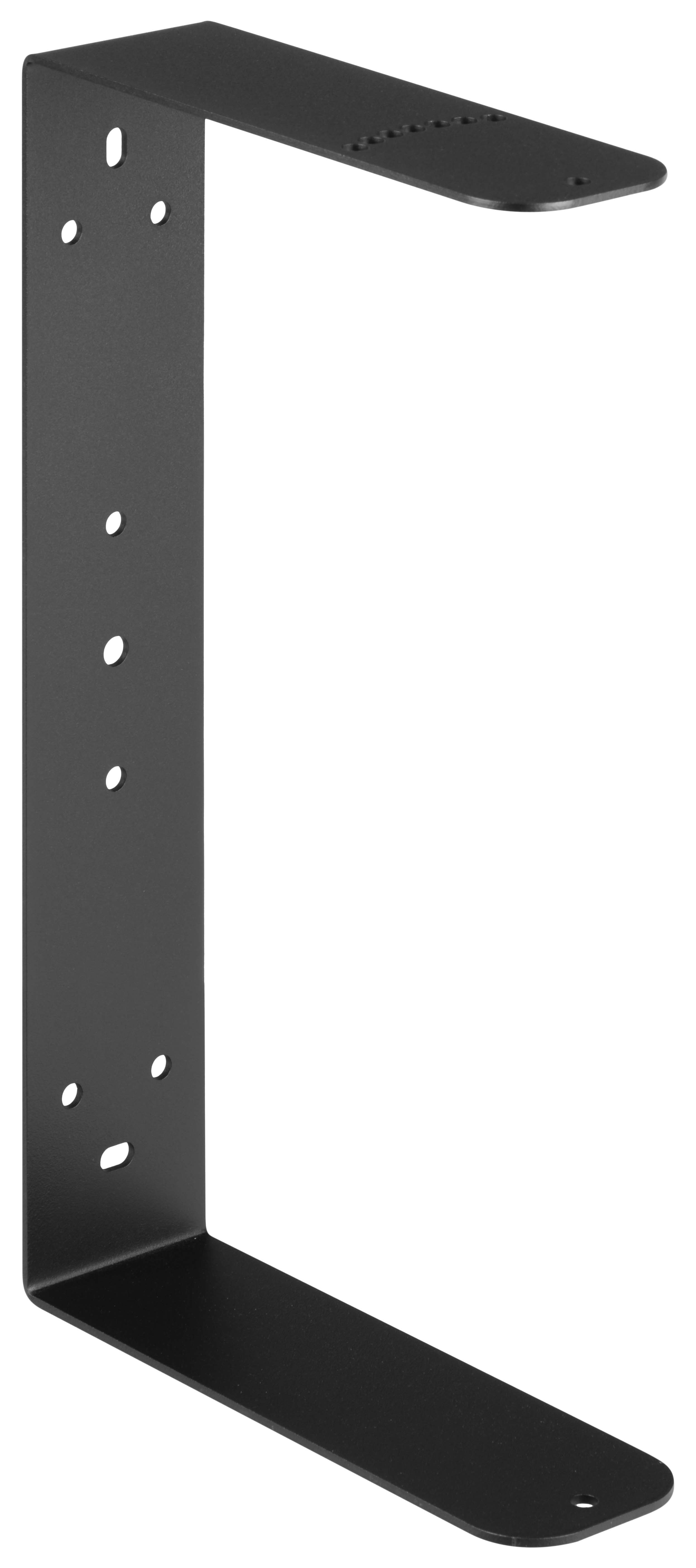

KPTED80B KPTED80B C-bracket for ED80P
