DESCRIPTION

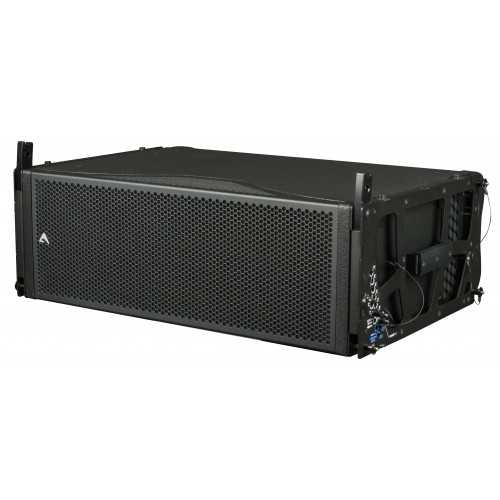

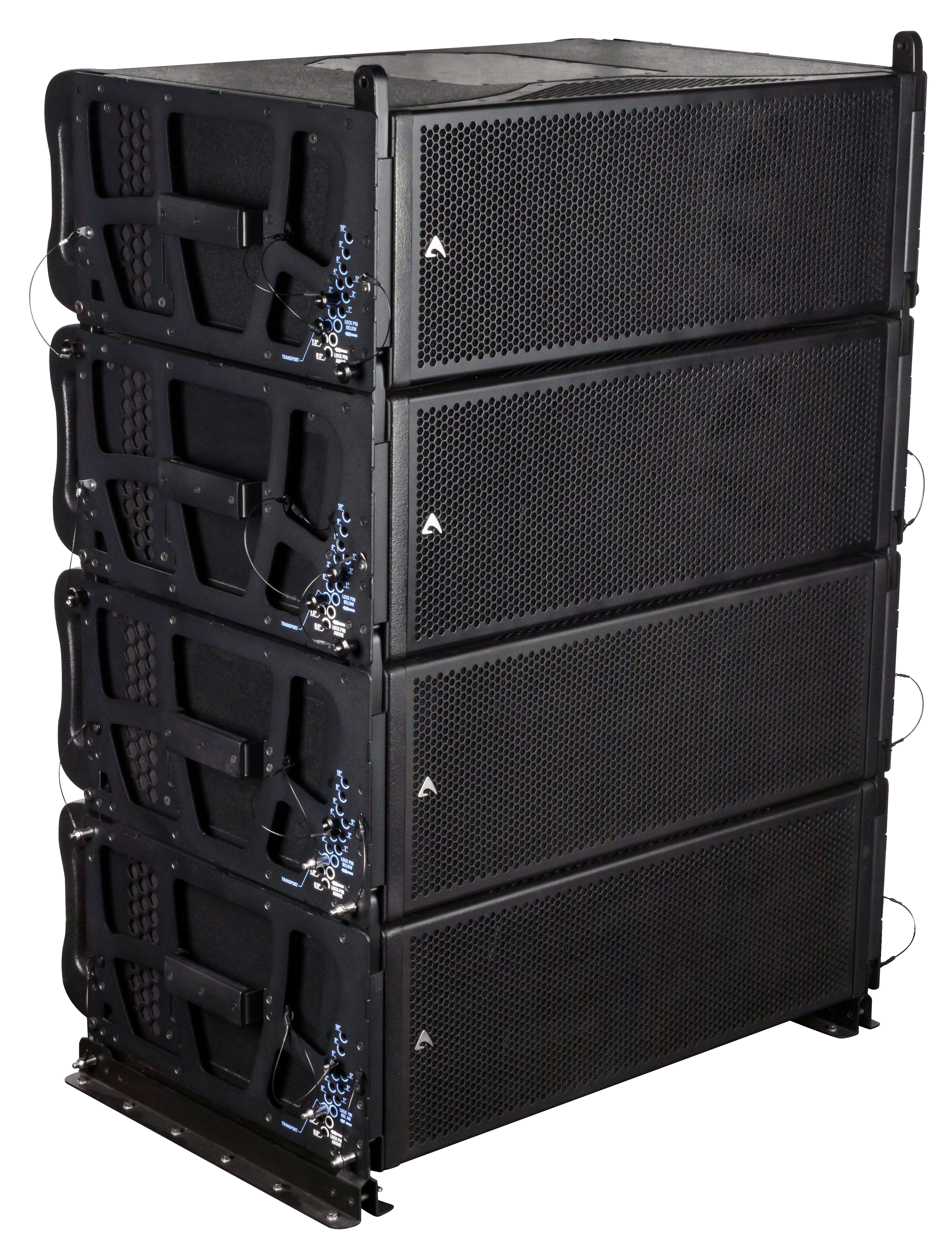

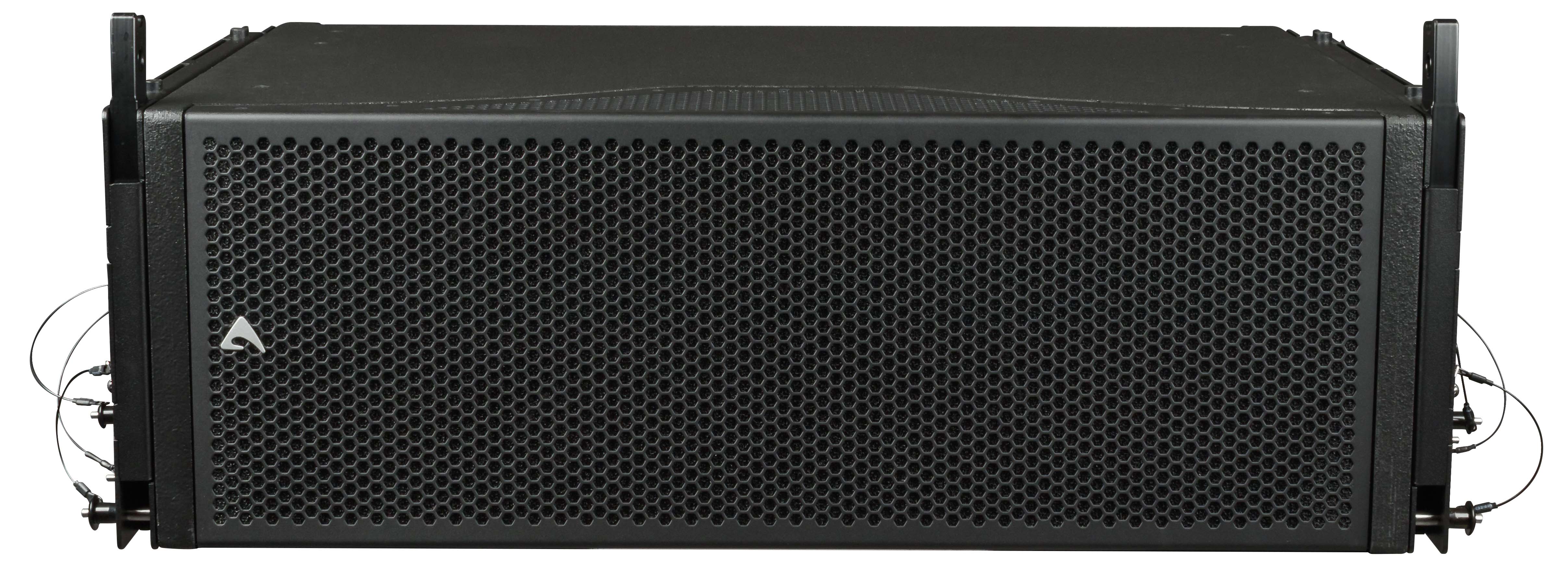

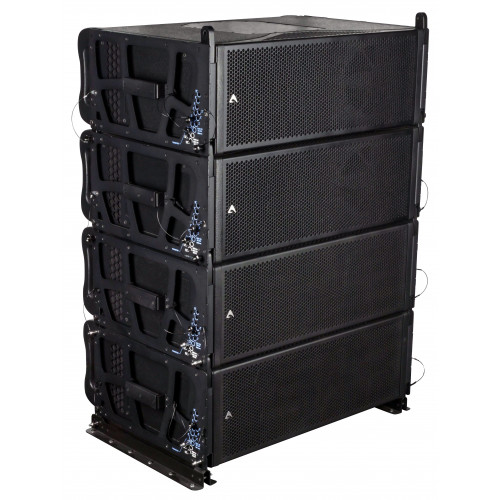

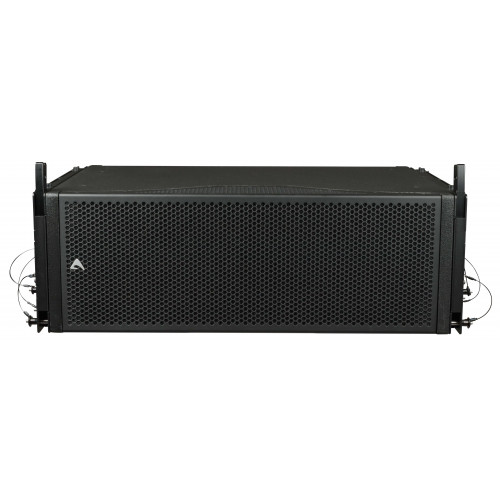

The Axiom AX2022P is a compact dual 10-inch line array element designed to deliver exceptional output and presence from a remarkably efficient physical footprint. Offering the highest power-to-size ratio in the Axiom product line, the AX2022P provides the scale, impact, and projection typically associated with larger systems, while maintaining the flexibility required for both touring and fixed installation applications.
TRANSDUCERS
The AX2022P features a three-way, fully passive transducer configuration centered around a coaxial compression driver paired with an advanced waveguide. This architecture enables the waveguide—traditionally optimized for high-frequency reproduction—to operate effectively into the midrange. By extending controlled directivity through a wider operating bandwidth, the AX2022P achieves increased sensitivity and reduced distortion across the critical vocal band, resulting in improved intelligibility and clarity at all output levels.
Two high-performance 10-inch transducers handle the remaining mid- and low-frequency reproduction, engineered for fast transient response and consistent output under sustained load. The integration of these elements within a carefully tuned enclosure ensures musical, controlled performance across the lower spectrum while maintaining consistent phase coherence.
SYSTEM CONCEPT AND SONIC PERFORMANCE

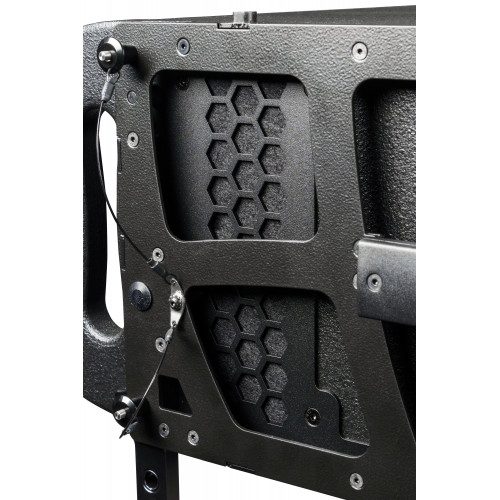

Constructed from phenolic birch plywood, the AX2022P features a robust enclosure developed to withstand the demands of both touring and permanent installation environments. Second-generation directive control technology is employed to manage rear-facing energy, improving rejection and minimizing unwanted interactions with reflective surfaces and adjacent array elements.
The result is consistent tonal balance from front to back of the venue—natural voice reproduction and musical integrity are preserved whether addressing the first row or the rear balcony. This behavior simplifies system design and reduces the need for corrective equalization, allowing engineers to focus on the performance rather than fighting the room.
SYSTEM INTEGRATION
The AX2022P integrates seamlessly with Axiom’s Q-Nex amplifier platform, which provides optimized DSP processing, comprehensive system protection, and scalable power delivery. This pairing ensures that the enclosure performs to specification across varying signal levels and deployment configurations, delivering repeatable results with minimal setup time.
KEY FEATURES
- Compact dual 10-inch passive line array element
- Highest power-to-size ratio in the Axiom product line
- Three-way design with coaxial compression driver and extended waveguide operation
- Enhanced sensitivity and clarity through the vocal frequency range
- Second-generation directive control with improved rear rejection
- Phenolic birch plywood construction for touring and installation durability
- Optimized for Axiom Q-Nex amplification and DSP processing
- Consistent front-to-back coverage with minimal equalization requirements
| SYSTEM | |
| System’s Acoustic Principle | Line Array Element, LF Transmission Line, Broadband directivity control |
| Frequency Response (-6dB) | 65 Hz – 18kHz (Processed) |
| Horizontal Coverage | 100° deg Avg., from 400Hz to 18kHz; 160° Avg. from 65 Hz to 400Hz |
| Vertical Coverage | Array Size dependent |
| Sensitivity 2.83V | 98 dB SPL @ 1m (LF) - 114 dB SPL @ 1m (HF) |
| Maximum (peak) Output | 146 dBSPL (AES 75 Standard) |
| TRANSDUCERS | |
| LF | Two 10”(260mm) Dual Gap, 3.5” (88mm) ISV, Neodymium Woofers, 16Ω each, paralleled |
| HF | Two 1.4”, two way, Coaxial Neodymium driver, 3” (64mm) midrange voice coil, 2” (51mm) high voice coil, 16Ω each, paralleled |
| INPUT CONNECTORS | |

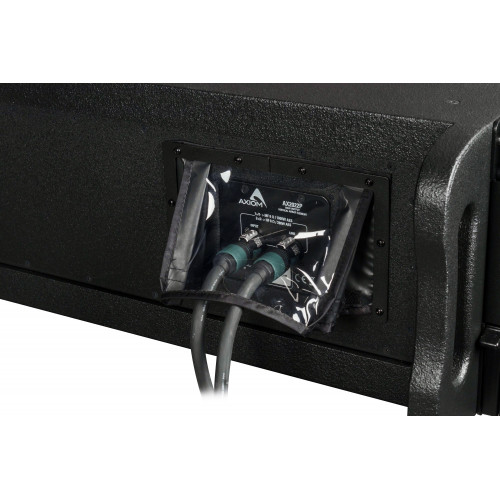

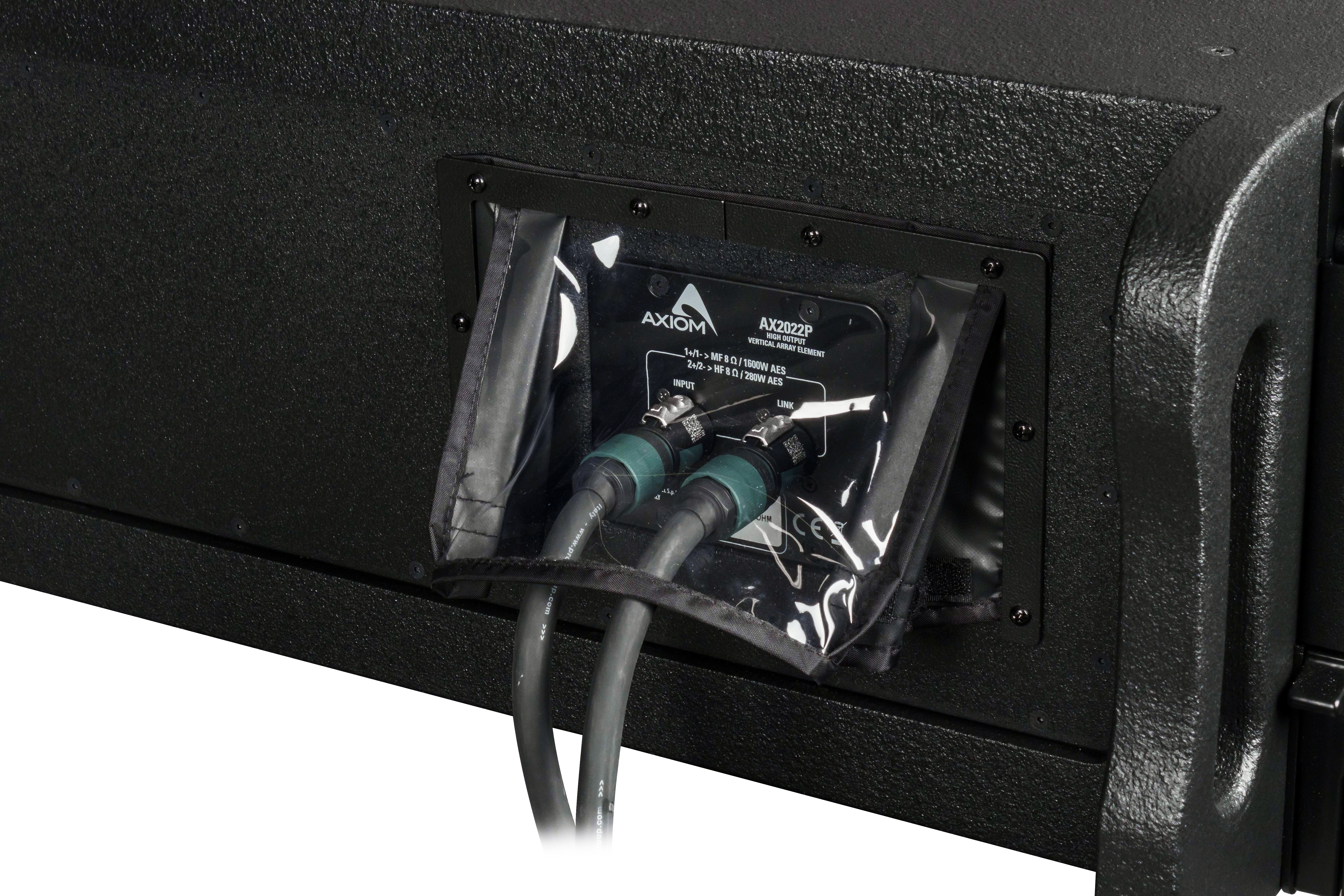

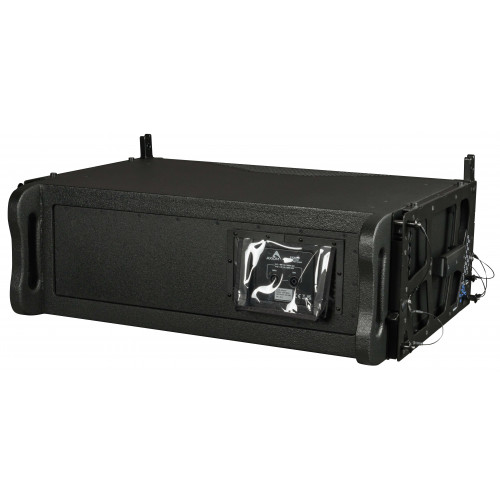

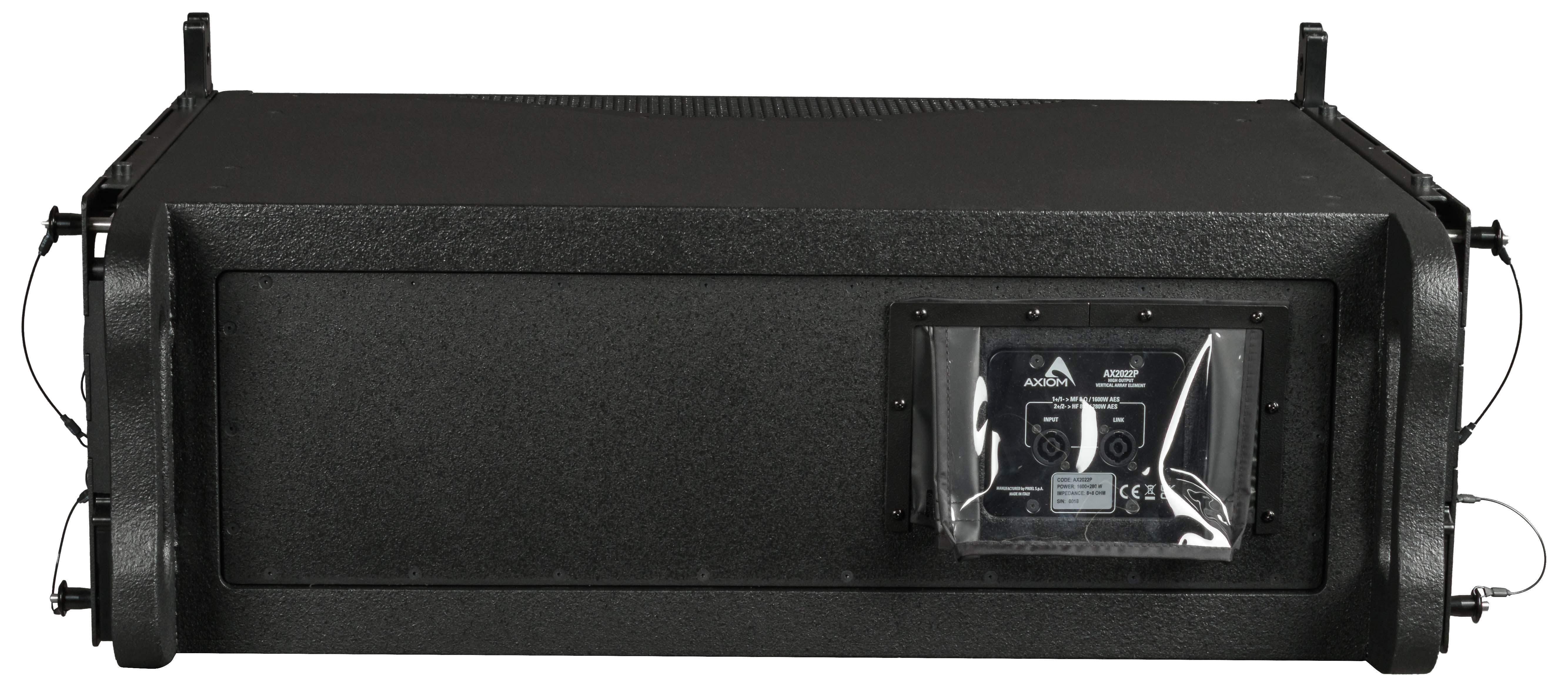

| Connector Type | Neutrik® speakON™ NL4MP x 2 |
| Input Wiring | LF = Pin 1+/1- HF = Pin 2+/2- |
| POWER HANDLING | |
| Input Power Rating (AES) | 1600W LF + 280W MHF |
| Input Power Handling (Program) | 3200W LF + 560W MHF |
| ENCLOSURE & CONSTRUCTION | |
| Dimensions (W x H x D) | 942 mm (W) x 295 mm (H) x 650 mm (D) |
| Enclosure Material | 15/30mm, reinforced Phenolic Birch |
| Paint | High resistance, water based paint |

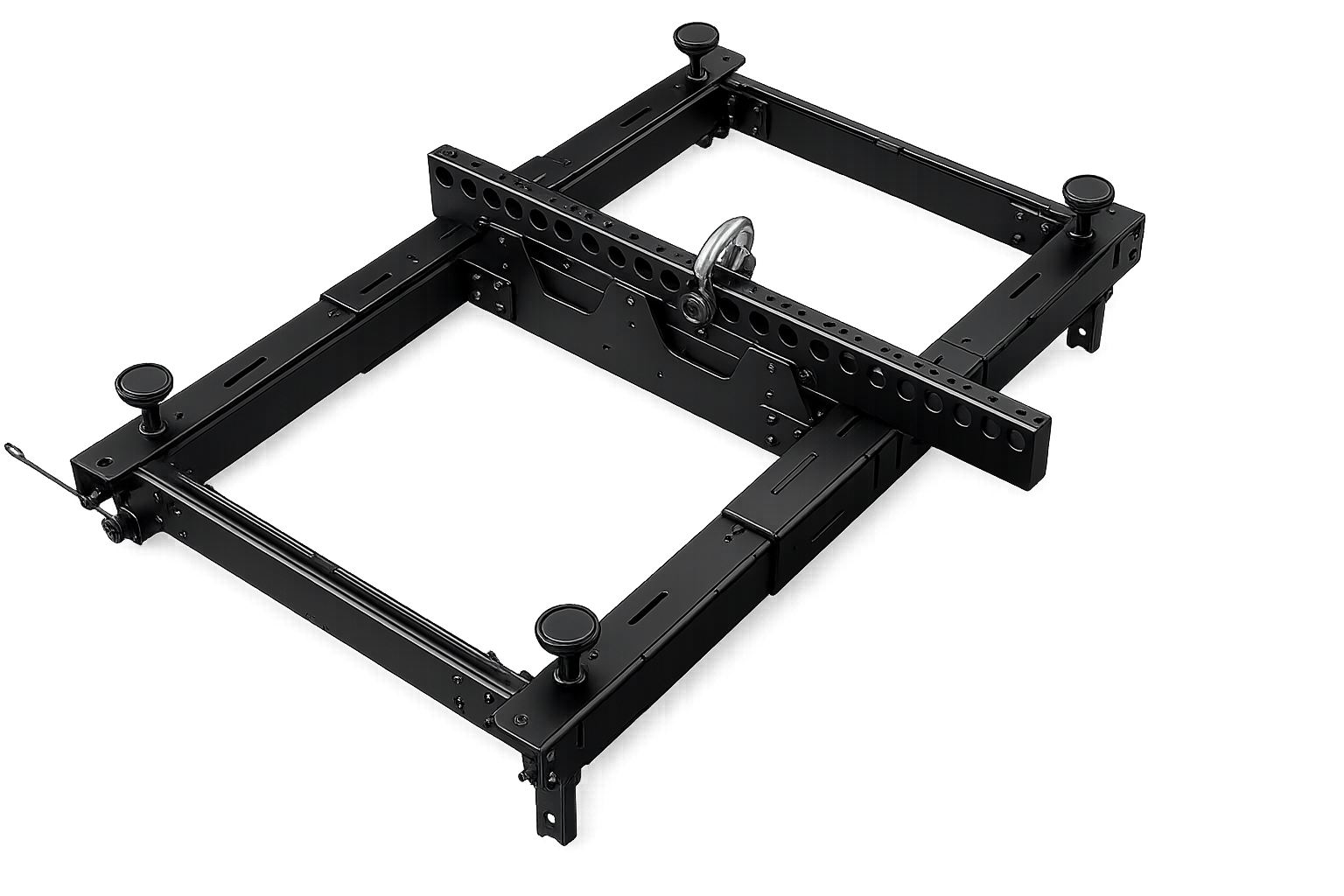

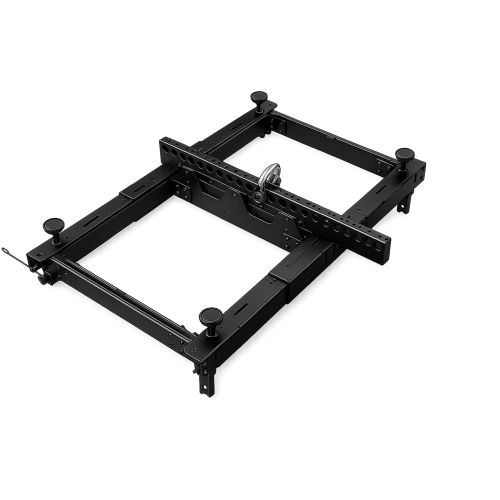

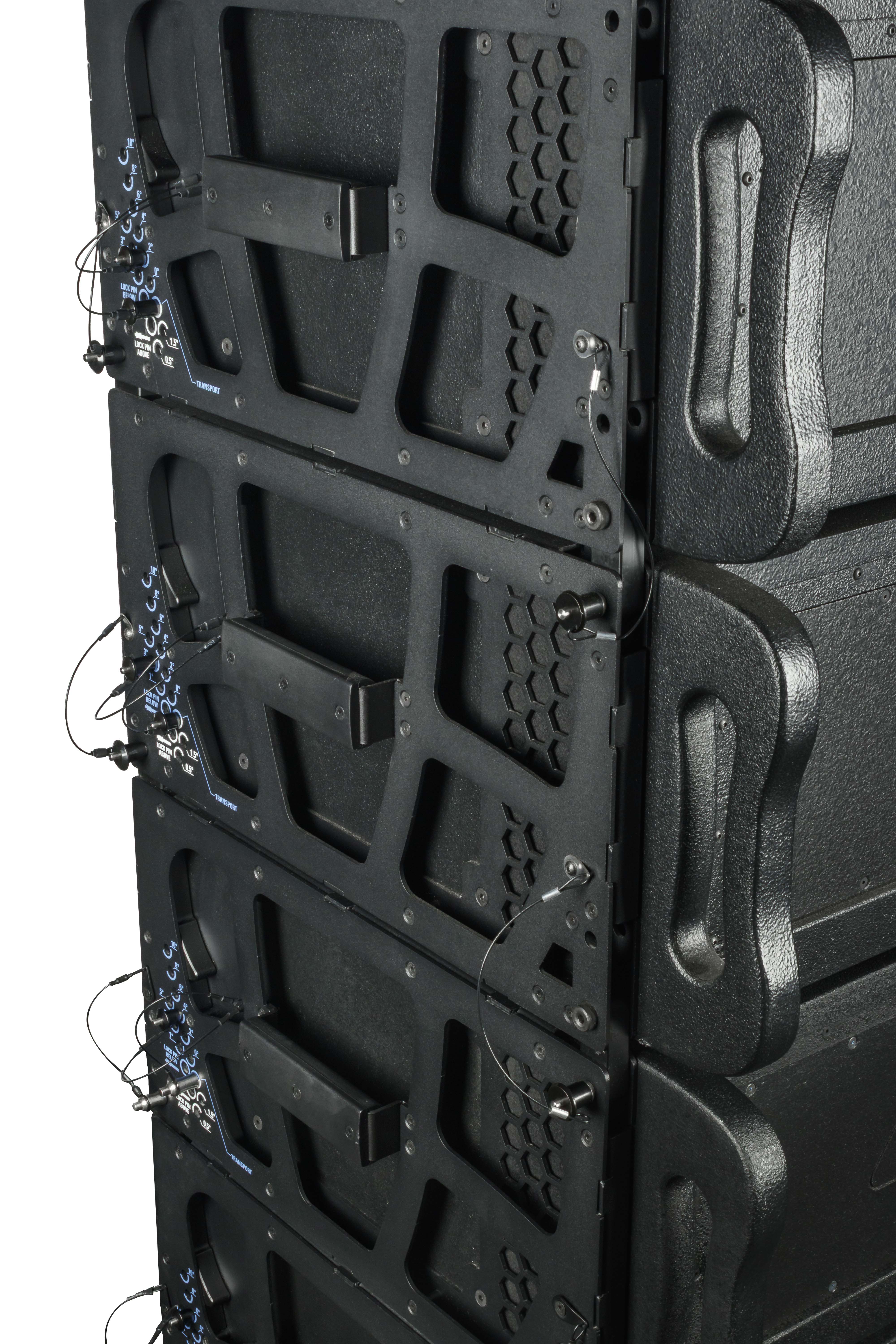

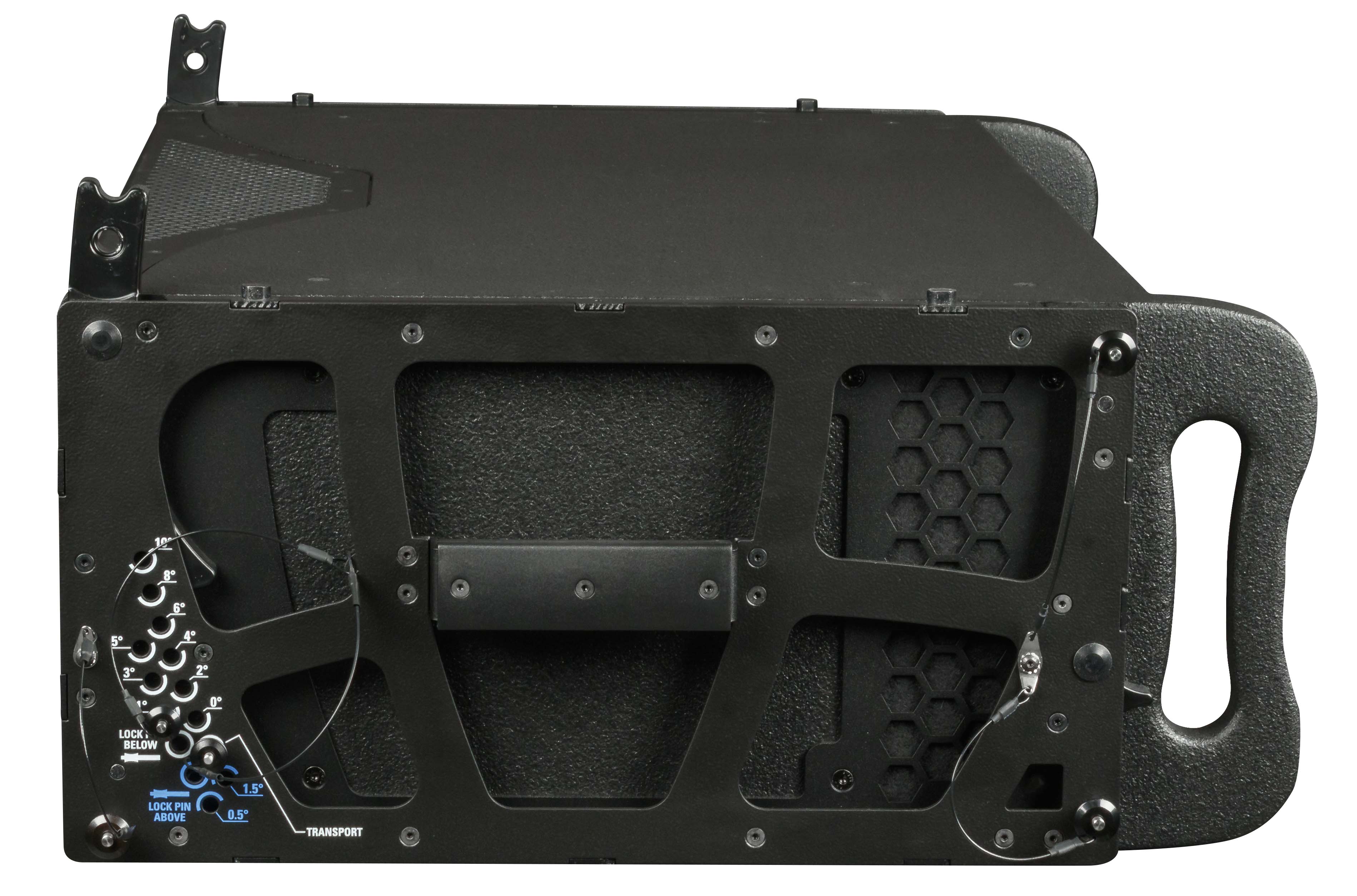

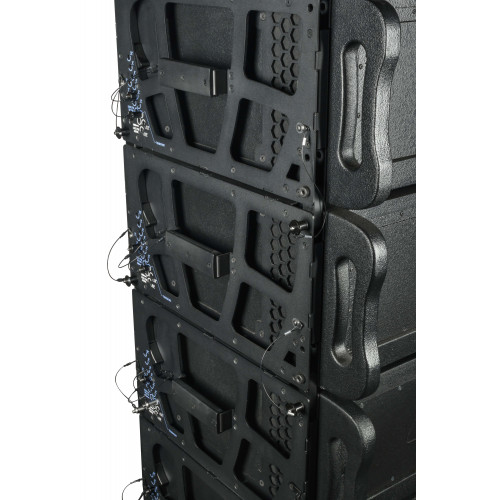

| Flying System | External Frame suspension system, back hinge |
| Net Weight | 55 Kg (121.3 lbs.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
User Manual
 | AX2022P datasheet.pdf | User's Manual |
